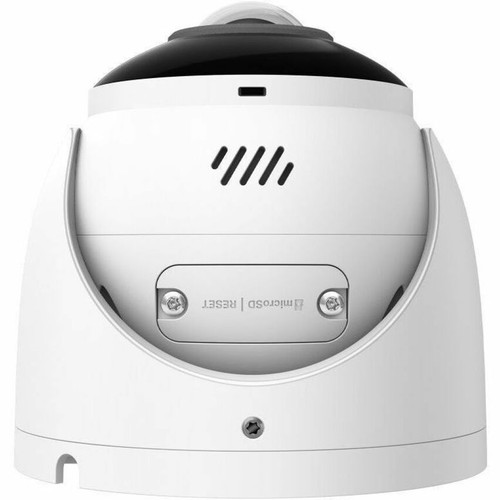

VIGI INSIGHT S485PI 8MP IR Panoramic Turret Network Camera - 4K 180° FOV - 65.62 ft Night Vision - IP67 IK10 - PoE/DC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the S485PI features a 1/2.7" CMOS sensor that captures 8-megapixel video at 3840 x 2160 resolution and 30 fps. The fixed 1.7mm f/2.0 M12-mount lens provides the wide 180° horizontal field of view essential for panoramic monitoring.
For low-light performance, four infrared LEDs enable clear night vision up to 65.62 ft (20 m), supported by a 120 dB wide dynamic range and an IR cut-off filter for accurate day/night transition. Video encoding includes H.265+, H.265, H.264, and variants to balance quality with storage efficiency.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This camera stands out with its combination of panoramic coverage, high-resolution imaging, and industrial-grade durability. The 180° field of view reduces the number of cameras needed for area coverage, while 4K resolution ensures critical details remain visible even when zooming in during playback.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Advanced Analytics, Robust Construction.
Advanced Analytics
AI-powered detection distinguishes between humans and vehicles, reducing false alarms and enabling smarter event triggers for more effective surveillance.
- Human Detection
- Vehicle Detection
- Smart Classification
Robust Construction
The metal turret housing withstands extreme weather, physical impacts, and vandalism, backed by IP67 and IK10 certifications for long-term reliability.
- IP67 Weatherproof
- IK10 Vandal Proof
- Metal Housing
Deployment / Use Cases
The S485PI is ideal for perimeter security, parking lots, retail entrances, and industrial sites where wide-area monitoring with detailed identification is required. Its panoramic view makes it particularly effective for covering large open spaces, corridors, or building facades with minimal camera count.
The dual power options (PoE and DC) support both new and existing installations, while the ceiling/wall mount flexibility allows placement in various orientations. The camera's -22°F to 140°F operating range ensures performance in freezing winters and hot summers, suitable for uncontrolled environments like warehouses or outdoor facilities.
Perimeter & Entrance Monitoring
Deploy at building entrances, gates, or property boundaries to capture comprehensive views of approaching individuals and vehicles with clear identification details.
Retail & Commercial Surveillance
Install in stores, parking lots, or loading docks to monitor customer traffic, detect loitering, and provide evidence for incident review with high-resolution footage.
Physical Profile
The turret-form camera measures 4.40" x 4.40" x 4.30" (111.76 mm x 111.76 mm x 109.22 mm) and weighs 1.68 lb (760 g), offering a compact yet substantial presence. Its metal construction provides durability while the turret design offers discreet monitoring with adjustable mounting for ceiling or wall installation.
- Width
- 4.40" (111.76 mm)
- Height
- 4.30" (109.22 mm)
- Weight
- 1.68 lb (760 g)
- Length
- 1.7 mm (0.06")
What's in the Box
The package includes all essential components for immediate deployment and protection of your investment.
Highlights
- 8MP 4K Ultra HD resolution for detailed identification
- 180° panoramic field of view eliminates blind spots
- 65.62 ft (20 m) infrared night vision with 4 IR LEDs
- AI-powered human and vehicle detection analytics
- IP67 weatherproof and IK10 vandal-proof ratings
- H.265+ compression technology reduces bandwidth and storage
- Dual power options: PoE or 12V DC input
- Metal construction with ceiling/wall mount flexibility
- 120 dB wide dynamic range for challenging lighting
- Supports microSD card storage for local recording
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | INSIGHT S485PI |
| Brand Name | VIGI |
| Product Line | InSight |
| Product Model | S485PI |
| Product Name | 8MP IR Panoramic Turret Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft (20 m) |
| Night Vision Type | Infrared |
| Number of IR LEDs | 4 |
| Wide Dynamic Range Detail | 120 dB |
| AI-powered | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.7" |
| Color Supported | Color |
| Field of View | Horizontal FOV: 180° ? Vertical FOV: 86° ? Diagonal FOV: 180° |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.265+,H.265,H.264,H.264+,H.264H,H.265M |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 1.7 mm (0.06") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/2.0 |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/3 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | TCP/IP,UDP,ICMP,HTTP,HTTPS,DHCP,DNS,RTSP,NTP,UPnP,SSL/TLS,FTP,SFTP,RTP,IPv4,IPv6,ARP,ONVIF,API |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 21 W |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Product Material | Metal |
| Mount Type | Ceiling Mount,Wall Mount |
| Form Factor | Turret |
| Durability | Water Proof,Weather Proof,Vandal Proof |
| Height | 4.30" (109.22 mm) |
| Width | 4.40" (111.76 mm) |
| Length | 4.40" (111.76 mm) |
| Weight (Approximate) | 1.68 lb (760 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Maximum Operating Humidity (Non-condensing) | 95% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| Miscellaneous | |
| Features | Alarm Triggering,Vehicle Detection,Human Detection,Wide Dynamic Range,3D Digital Noise Reduction,Noise Reduction,White Balance,Built-in Microphone,Day/Night,Mirror |
| Package Contents | 8MP IR Panoramic Turret Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
User Manual
FAQ
What is the field of view of this camera?
The VIGI INSIGHT S485PI provides a 180° horizontal field of view, 86° vertical field of view, and 180° diagonal field of view. This panoramic coverage allows monitoring of wide areas like entrances, parking lots, or corridors with a single camera, reducing installation complexity and blind spots.
How far does the night vision reach?
The camera's infrared night vision effectively covers distances up to 65.62 ft (20 m) using four integrated IR LEDs. This range ensures clear monochrome imaging in complete darkness, making it suitable for perimeter security, outdoor areas, and low-light indoor environments during nighttime hours.
What video compression formats are supported?
This camera supports H.265+, H.265, H.264, H.264+, H.264H, and H.265M video compression formats. H.265+ technology provides superior compression efficiency compared to standard H.264, reducing bandwidth consumption and storage requirements while maintaining high video quality for surveillance recordings.
Is this camera suitable for outdoor use?
Yes, the VIGI INSIGHT S485PI is designed for both indoor and outdoor deployment. It carries IP67 ingress protection against dust and water immersion, along with IK10 impact resistance against vandalism. The operating temperature range of -22°F to 140°F (-30°C to 60°C) ensures reliable performance in extreme weather conditions.
What power options are available?
The camera offers dual power input options: Power over Ethernet (PoE) via the network cable or traditional 12V DC power supply. This flexibility supports both new installations with PoE switches and existing setups with standard power outlets, with maximum power consumption rated at 21 watts.
Does this camera include analytics capabilities?
Yes, the camera features AI-powered analytics including human detection, vehicle detection, and classification. These intelligent functions reduce false alarms by distinguishing between different object types, enabling more accurate event triggering for security alerts and efficient video review.
