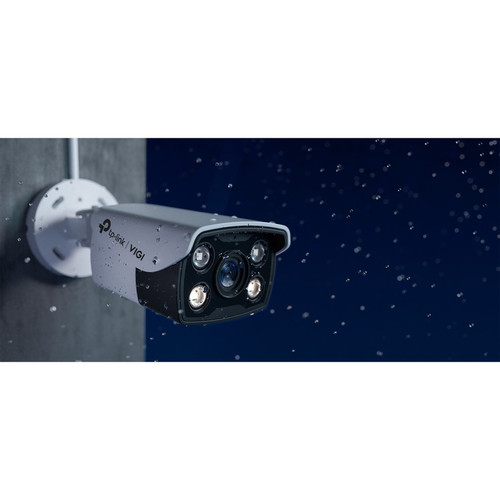

TP-LINK VIGI C340(4MM) 4MP Outdoor Bullet Network Camera - Color - 98. 43 ft Night Vision - H. 265+ - IP66 - PoE/DC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This surveillance camera delivers 4-megapixel resolution through a fixed 4mm lens with an f/1.6 aperture, providing optimal light capture in various lighting conditions. The camera supports multiple video compression formats including H.265+, H.265, H.264+, and H.264, allowing for efficient bandwidth utilization and storage optimization.
Advanced imaging features include 3D Digital Noise Reduction, Digital Wide Dynamic Range (D-WDR), and Back Light Compensation (BLC) to ensure clear video in challenging lighting scenarios. The camera's intelligent detection capabilities encompass human detection, motion detection, cross line detection, and tamper detection for comprehensive security monitoring.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The VIGI C340 offers distinct advantages for outdoor surveillance deployments, beginning with its dual infrared and color night vision system that maintains visibility up to 98.43 feet in complete darkness. This capability ensures 24/7 monitoring effectiveness regardless of lighting conditions.
Enhanced Video Compression
Support for H.265+ and H.265 formats reduces bandwidth consumption by up to 50% compared to H.264 while maintaining video quality, making it ideal for network-constrained installations.
- Reduced storage requirements
- Lower network bandwidth usage
- Maintained video clarity
Intelligent Detection Features
Advanced analytics including human detection, motion detection, and tamper detection reduce false alarms and focus attention on genuine security events.
- Human vs. object differentiation
- Configurable detection zones
- Tamper alarm notifications
Dual Power Flexibility
The camera accepts both Power over Ethernet (PoE) and 12V DC power inputs, providing installation flexibility and reducing wiring complexity in various deployment scenarios.
- Single-cable PoE installation
- Traditional DC power option
- Simplified power management
Deployment / Use Cases
The VIGI C340 bullet camera is particularly suited for perimeter security applications where its weatherproof construction and extended night vision range provide reliable coverage. The camera's form factor and mounting options make it ideal for monitoring building exteriors, parking areas, entry points, and property boundaries.
Commercial establishments benefit from the camera's advanced detection features for loss prevention and security monitoring. Retail environments can utilize the human detection capabilities to distinguish between customer traffic and potential security threats, while industrial facilities can leverage the tamper detection and wide temperature range for equipment security in challenging environments.
Retail & Commercial Security
Monitor storefronts, parking lots, and loading docks with clear 4MP video and intelligent detection that reduces false alarms from routine activity.
- Entry/exit monitoring
- Parking area surveillance
- After-hours security
Industrial & Warehouse Monitoring
Withstand temperature extremes from -22°F to 140°F while providing reliable surveillance for equipment security and safety compliance in manufacturing and storage facilities.
- Equipment security monitoring
- Safety regulation compliance
- Perimeter intrusion detection
Physical Profile
The bullet-style housing measures 3.07" x 2.76" x 6.85" (78 x 70 x 174 mm) and weighs approximately 6.88 ounces (195 grams), providing a compact yet durable form factor for versatile mounting. The IP66 rating ensures complete protection against dust ingress and powerful water jets from any direction, making the camera suitable for exposed outdoor installations.
- Width
- 2.76" (70 mm)
- Depth
- 6.85" (174 mm)
- Height
- 3.07" (78 mm)
- Weight
- 6.88 oz (195 g)
- Length
- 4 mm (0.16")
Highlights
- 4MP resolution delivers 2560x1440 video at 30 fps for clear surveillance footage
- 98.43 ft (30 m) infrared/color night vision ensures 24/7 monitoring capability
- IP66 weatherproof rating protects against dust and water for reliable outdoor operation
- H.265+ compression reduces bandwidth and storage requirements by up to 50%
- Power over Ethernet (PoE) support enables single-cable installation simplicity
- Advanced detection features include human detection, motion detection, and tamper detection
- Wide operating temperature range from -22°F to 140°F (-30°C to 60°C)
- Built-in microphone and speaker support two-way audio communication
- Local SD card storage provides backup recording capability
- Multiple video formats including H.265+, H.265, H.264+, and H.264 for compatibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | VIGI C340(4MM) |
| Brand Name | VIGI |
| Product Model | VIGI C340 |
| Product Name | VIGI 4MP Outdoor Full-Color Bullet Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared/Color |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.265+,H.265,H.264+,H.264,H.264 (MP),H.264 HP,H.265 (MP) |
| Maximum Video Resolution | 2560 x 1440 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm (0.16") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.6 |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Form Factor | Bullet |
| Durability | Weather Proof,Water Proof |
| Height | 3.07" (78 mm) |
| Width | 2.76" (70 mm) |
| Depth | 6.85" (174 mm) |
| Weight (Approximate) | 6.88 oz (195 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Miscellaneous | |
| Features | Password Protection,HTTPS Encryption,Mirror,Privacy Masking,3D Digital Noise Reduction,Digital Wide Dynamic Range (D-WDR),Back Light Compensation (BLC),Cross Line Detection,Human Detection,Motion Detection,Tamper Detection,Region of Interest,Built-in Microphone,Built-in Speaker,SD Card Local Storage |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP66 |
User Manual
FAQ
What is the maximum video resolution of the VIGI C340 camera?
The VIGI C340 captures video at up to 2560 x 1440 resolution, which represents 4 megapixels of imaging detail. This resolution provides significantly clearer images than standard 1080p cameras, allowing for better identification of subjects and details in surveillance footage. The camera maintains this resolution at 30 frames per second for smooth video playback.
How does the night vision system work on this camera?
The camera features dual infrared and color night vision that extends up to 98.43 feet (30 meters). During low-light conditions, infrared LEDs activate to provide monochrome imaging, while in moderately lit conditions, the camera can maintain color video. This dual approach ensures optimal visibility across varying lighting scenarios for comprehensive 24/7 surveillance coverage.
What power options are available for this network camera?
The VIGI C340 supports both Power over Ethernet (PoE) and traditional 12V DC power inputs. PoE capability allows installation with a single Ethernet cable that carries both data and power, simplifying deployment and reducing wiring complexity. The 12V DC option provides flexibility for installations where PoE switches or injectors are not available.
Is this camera suitable for outdoor installation in harsh weather?
Yes, the camera carries an IP66 ingress protection rating, making it completely dust-tight and protected against powerful water jets from any direction. This rating, combined with its operating temperature range of -22°F to 140°F (-30°C to 60°C), ensures reliable performance in demanding outdoor environments including rain, snow, and extreme temperature conditions.
What video compression formats does the camera support?
The camera supports multiple advanced compression formats including H.265+, H.265, H.264+, and H.264. H.265+ represents the most efficient compression available, reducing bandwidth and storage requirements by approximately 50% compared to standard H.264 while maintaining video quality. This efficiency is particularly valuable for multi-camera installations with limited network bandwidth or storage capacity.
What intelligent detection features are included with this camera?
The VIGI C340 includes comprehensive detection capabilities such as human detection (which distinguishes people from other moving objects), motion detection, cross line detection (triggering alerts when subjects cross virtual boundaries), and tamper detection (alerting when the camera is obstructed or moved). These features reduce false alarms and focus attention on genuine security events while providing configurable alert zones for precise monitoring.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
