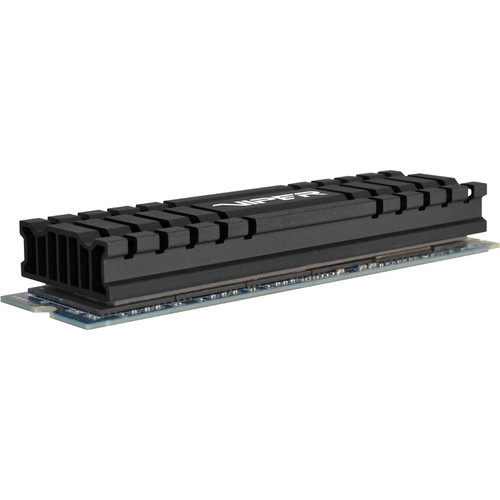

VIPER VPN110 2 TB Solid State Drive - M.2 2280 Internal - PCI Express NVMe (PCI Express NVMe 3.0 x4) - Black - All-in-One PC, Desktop (VPN110-2TBM28H)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Storage Capacity: 2 TB
Platform Supported: PC
Maximum Read Transfer Rate: 3300 MB/s
Maximum Write Transfer Rate: 3000 MB/s
Random 4KB Read: 500000IOPS
Random 4KB Write: 500000IOPS
Endurance (TBW): 1600 TB
Wireless LAN: No
Drive Interface: PCI Express NVMe
Drive Interface Standard: PCI Express NVMe 3.0 x4
Color Family: Black
Product Color: Black
Drive Type: Internal
Form Factor: M.2 2280
Height: 0.41" (10.50 mm)
Width: 0.87" (22 mm)
Length: 3.15" (80 mm)
Weight (Approximate): 0.88 oz (25 g)
Device Supported: All-in-One PC,Desktop PC
Operating System Compatibility: Windows 7,Windows 8,Windows 8.1,Windows 10
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- Latest Gen3x 4 Controller
- 2280 M.2 PCIe Gen3 x 4, NVMe 1.3
- DRAM Cache: size depending on drive capacity

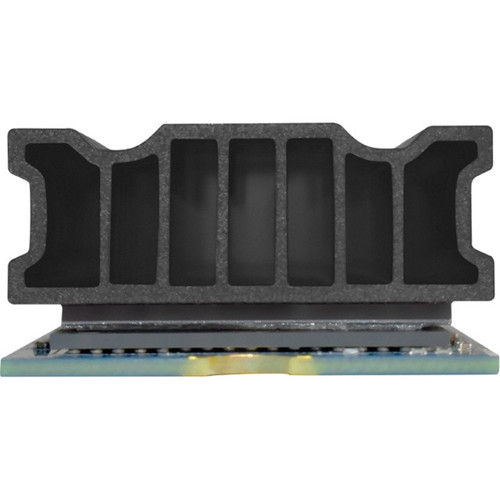

- Innovative heatshield design
- Extreme high performance
- Operating Temperature - 0° ~ 70°C
- TBW: 1600TB
- 4K Aligned Random Read: up to 500K IOPs
- 4K Aligned Random Write: up to 500K IOPs
- Sequential Read (ATTO): up to 3,300MB/s
[custom-specifications]
| Specifications | |
| Manufacturer | Patriot Memory, LLC |
| Manufacturer Part Number | VPN110-2TBM28H |
| Manufacturer Website Address | http://www.patriotmemory.com |
| Brand Name | VIPER |
| Product Series | VPN110 |
| Product Name | VPN110 M.2 2280 PCIE SSD |
| Package Type | Retail |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 2 TB |
| Platform Supported | PC |
| Drive Performance | |
| Maximum Read Transfer Rate | 3300 MB/s |
| Maximum Write Transfer Rate | 3000 MB/s |
| Random 4KB Read | 500000IOPS |
| Random 4KB Write | 500000IOPS |
| Endurance (TBW) | 1600 TB |
| Network & Communication | |
| Wireless LAN | No |
| Interfaces/Ports | |
| Drive Interface | PCI Express NVMe |
| Drive Interface Standard | PCI Express NVMe 3.0 x4 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Drive Type | Internal |
| Form Factor | M.2 2280 |
| Height | 0.41" (10.50 mm) |
| Width | 0.87" (22 mm) |
| Length | 3.15" (80 mm) |
| Weight (Approximate) | 0.88 oz (25 g) |
| Miscellaneous | |
| Device Supported | All-in-One PC,Desktop PC |
| Operating System Compatibility | Windows 7,Windows 8,Windows 8.1,Windows 10 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
