Vivotek IB9369-F3 Outdoor 2MP Full HD Bullet Network Camera with 98ft IR Night Vision - IP66/IK10 - TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The IB9369-F3 features a high-sensitivity CMOS sensor that provides excellent low-light performance while consuming minimal power. The fixed 3.6mm lens offers a 90° horizontal field of view, covering broad areas with a single installation. Video compression supports H.265, H.264, and MJPEG formats, optimizing bandwidth and storage efficiency.
Advanced imaging technologies include Digital Wide Dynamic Range (D-WDR) to balance lighting in high-contrast scenes, 3D noise reduction for cleaner video in low-light conditions, and a built-in infrared illuminator that extends visibility up to 98 feet in complete darkness. The camera also integrates a microphone for audio capture and motion detection for event-triggered recording.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This camera combines robust construction with advanced imaging features to deliver reliable outdoor surveillance. The IP66 rating ensures protection against heavy rain and dust, while the IK10 impact resistance defends against physical tampering, making it ideal for high-risk locations.
Enhanced Low-Light Performance
Infrared night vision extends monitoring capability to 98 feet in total darkness, supported by a wide dynamic range that maintains detail in challenging lighting conditions.
- Built-in IR illuminator
- D-WDR technology
- 3D noise reduction
Flexible Storage and Management
Local storage via SD card allows for onboard recording without continuous network dependency, while remote management capabilities enable centralized control and monitoring.
- SD card local storage
- Remote management support
- Motion detection
Deployment / Use Cases

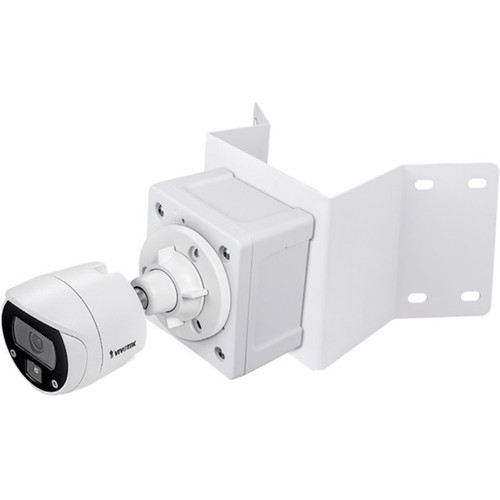

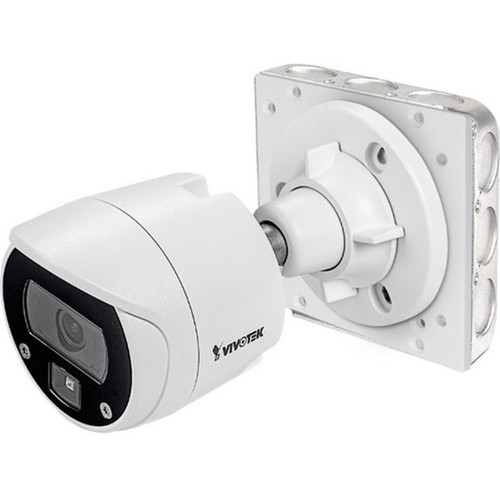

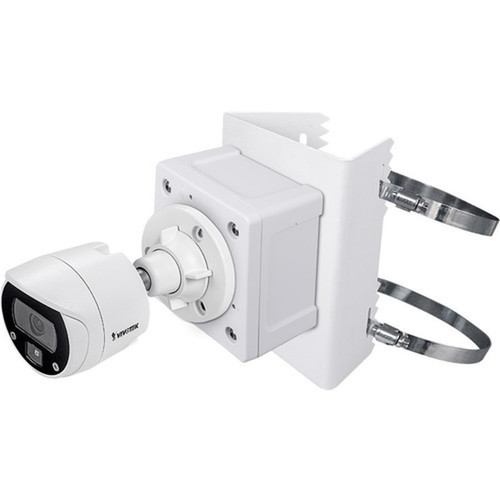

The IB9369-F3 is designed for perimeter security, parking lots, building exteriors, and industrial sites where weather resistance and vandal-proof construction are critical. Its multiple mounting options—including junction box, conduit, corner, and pole mounts—provide installation flexibility for various architectural environments.
Commercial and institutional facilities benefit from its TAA compliance for government contracts, while the 12V DC power input simplifies integration with existing security systems. The camera's wired connectivity ensures stable network performance for continuous surveillance operations.
Perimeter and Entry Point Monitoring
Install at gatehouses, fences, or building entrances to capture clear identification footage day and night, with motion detection alerting security personnel to activity.
Industrial and Outdoor Asset Protection
Deploy in warehouses, yards, or construction sites where dust, moisture, and temperature extremes require a durable camera with reliable night vision.
Physical Profile
The bullet form factor measures 7.15 inches in height and 3.59 inches in diameter, with a weight of 1.48 pounds. This compact design minimizes visual obtrusiveness while providing a sturdy mounting base for outdoor installations. The camera's finish is engineered for long-term exposure to UV light and corrosive elements.
- Height
- 7.15" (181.50 mm)
- Weight
- 1.48 lb (671 g)
- Length
- 3.6 mm (0.14")
What's in the Box
The package includes all necessary components for a complete installation, ensuring quick setup and reliable mounting.
Highlights
- 2-megapixel Full HD resolution at 30 fps for clear video detail
- Infrared night vision extends up to 98 feet in total darkness
- IP66 weatherproof and IK10 vandal-resistant construction
- Supports H.265, H.264, and MJPEG video compression
- Fixed 3.6mm lens with 90° horizontal field of view
- Digital Wide Dynamic Range (D-WDR) for high-contrast scenes
- Local storage via SD card and remote management capabilities
- TAA compliant for government and institutional deployments
- Multiple mounting options: junction box, conduit, corner, pole
- 12V DC power input for easy integration
Specifications
| Specifications | |
|---|---|
| Manufacturer | Vivotek, Inc |
| Manufacturer Part Number | IB9369-F3 |
| Brand Name | Vivotek |
| Product Series | C |
| Product Model | IB9369-F3 |
| Product Name | IB9369-F3 Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 90° (Horizontal) 49° (Vertical) 106° (Diagonal) |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MJPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3.6 mm (0.14") |
| Lens Included | Yes |
| Maximum Aperture | f/2.2 |
| Exposure | |
| Shortest Shutter Speed | 1/32000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Mount Type | Junction Box Mount,Conduit Mount,Corner Mount,Pole Mount |
| Form Factor | Bullet |
| Durability | Water Resistant,Vandal Proof,Dust Resistant,Weather Proof |
| Height | 7.15" (181.50 mm) |
| Diameter | 3.59" (91.10 mm) |
| Weight (Approximate) | 1.48 lb (671 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Digital Wide Dynamic Range (D-WDR),Motion Detection,3D Noise Reduction,SD Card Local Storage,Built-in Infrared Illuminator,Day/Night,Built-in Microphone |
| Indoor/Outdoor | Outdoor |
| Package Contents | IB9369-F3 Network Camera Quick Installation Guide Alignment Sticker Screw Pack Cable Gland |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 36 Month |
User Manual
FAQ
What is the maximum video resolution of the Vivotek IB9369-F3 camera?
The camera captures 2-megapixel Full HD video at 1920 x 1080 resolution, providing detailed footage suitable for identification and monitoring purposes. It records at 30 frames per second for smooth motion representation.
How far does the night vision extend on this camera?
The built-in infrared illuminator delivers night vision up to 98.43 feet (30 meters) in complete darkness. This range ensures reliable monitoring in low-light conditions without additional external lighting.
Is this camera suitable for outdoor installation?
Yes, the IB9369-F3 is designed for outdoor use with an IP66 rating for protection against dust and water ingress, and an IK10 impact resistance rating against vandalism. It operates in temperatures from -22°F to 140°F.
What mounting options are available for this bullet camera?
The camera supports junction box mount, conduit mount, corner mount, and pole mount configurations. This flexibility allows installation on various surfaces and structures for optimal viewing angles.
Does the camera support local storage?
Yes, it includes SD card local storage for onboard recording, enabling footage capture without continuous network dependency. This feature is useful for backup recording or locations with intermittent connectivity.
What is TAA compliance and why is it important?
TAA (Trade Agreements Act) compliance means the camera meets U.S. government procurement standards, allowing it to be used in federal and state contracts. This certification ensures the product adheres to specific manufacturing and sourcing requirements.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
