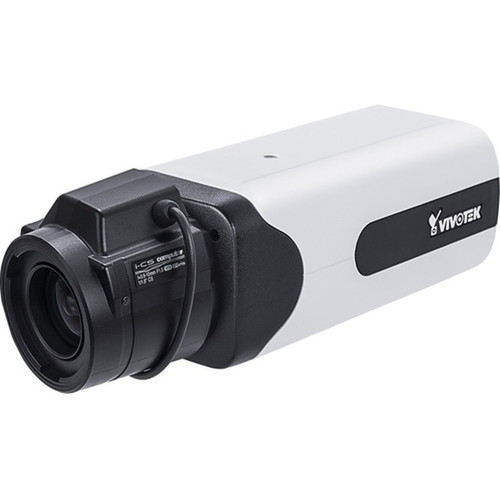

Vivotek IP9191-HT 8MP Outdoor Box Network Camera - 3840 x 2160 - H. 265/H. 264 - 2. 5x Zoom - CMOS
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the IP9191-HT is an 8-megapixel CMOS image sensor that captures high-resolution video while optimizing power consumption compared to traditional CCD sensors. The camera records in HD formats and supports H.264, H.265, and MJPEG video compression, allowing for efficient bandwidth usage and storage management without compromising image quality.
Its 2.5x optical zoom lens offers a focal range from 3.9 mm to 10 mm, providing flexibility in framing shots from wide-angle to closer views. The zoom functionality is mechanical, ensuring consistent optical performance across its range. Network communication is handled through a wired RJ-45 interface, enabling stable data transmission and PoE compatibility where supported by the network infrastructure.
Relevant factors for this section include HD Recording, Recording Formats, Image Sensor Type, Color Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The IP9191-HT stands out with its combination of high-resolution imaging, efficient video processing, and durable outdoor design. Its 8-megapixel sensor delivers four times the detail of standard 1080p cameras, ensuring that critical visual information is captured with precision. The support for H.265 compression reduces bandwidth and storage requirements by up to 50% compared to H.264, making it cost-effective for large-scale deployments.
Enhanced Low-Light Performance
The CMOS sensor provides superior sensitivity in varying lighting conditions, supporting both color and monochrome modes to maintain visibility during dawn, dusk, or nighttime surveillance.
- Color and monochrome imaging
- Optimized for outdoor environments
- Reduced power consumption
Flexible Installation Options
With its compact box form factor and standard mounting provisions, this camera can be easily deployed on walls, ceilings, or poles using compatible brackets, offering versatile placement for optimal coverage.
- Box design for easy integration
- Standard mounting compatibility
- Outdoor-rated construction
Deployment / Use Cases
This camera is ideal for organizations requiring detailed outdoor surveillance with minimal maintenance. Its high resolution and zoom capabilities make it suitable for monitoring parking lots, building perimeters, gates, and loading docks where identifying license plates, facial features, or package details is essential.
In retail settings, the IP9191-HT can oversee outdoor inventory areas or entrance points, providing clear footage for loss prevention and customer traffic analysis. For industrial applications, it offers reliable monitoring of equipment yards, warehouse exteriors, or remote facilities, with its rugged design withstands environmental exposure.
Perimeter Security
Deploy along fences or property boundaries to detect and document unauthorized access with clear, zoomable video evidence.
- High-resolution identification
- Weather-resistant housing
- Continuous outdoor operation
Entry Point Monitoring
Install above doors or gates to capture detailed footage of individuals and vehicles entering or exiting secured areas.
- Wide to telephoto framing
- Color and monochrome modes
- Remote management access
Physical Profile
The IP9191-HT features a compact box form factor measuring 2.76 inches wide, 2.40 inches high, and 8.27 inches deep (70 x 61 x 210 mm), with a weight of approximately 743 grams. Its design prioritizes durability for outdoor use, with a housing that protects internal components from moisture, dust, and temperature fluctuations. The dimensions allow for discreet installation while providing sufficient internal space for heat dissipation and lens mechanics.
- Width
- 2.76" (70 mm)
- Depth
- 8.27" (210 mm)
- Height
- 2.40" (61 mm)
- Weight
- 743 g
- Length
- 3.9 mm
Highlights
- 8-megapixel CMOS sensor for high-resolution 4K video at 3840 x 2160
- H.265, H.264, and MJPEG video encoding for efficient bandwidth and storage use
- 2.5x optical zoom lens with 3.9 mm to 10 mm focal length range
- Outdoor-rated construction suitable for perimeter and environmental monitoring
- Wired connectivity with RJ-45 port for stable network integration
- Remote management capabilities for easy configuration and monitoring
- Supports both color and monochrome imaging for adaptable light conditions
- Compact box form factor for flexible mounting on walls, ceilings, or poles
Specifications
| Specifications | |
|---|---|
| Manufacturer | Vivotek, Inc |
| Manufacturer Part Number | IP9191-HT |
| Brand Name | Vivotek |
| Product Series | V |
| Product Model | IP9191-HT |
| Product Name | V Series IP9191-HT Box Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Monochrome,Color |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG |
| Maximum Video Resolution | 3840 x 2160 |
| Lens | |
| Lens Type | Zoom |
| Minimum Focal Length | 3.9 mm |
| Maximum Focal Length | 10 mm |
| Optical Zoom | 2.5x |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Form Factor | Box |
| Height | 2.40" (61 mm) |
| Width | 2.76" (70 mm) |
| Depth | 8.27" (210 mm) |
| Weight (Approximate) | 743 g |
| Miscellaneous | |
| Indoor/Outdoor | Outdoor |
FAQ
What is the maximum video resolution of the Vivotek IP9191-HT camera?
The Vivotek IP9191-HT captures video at a maximum resolution of 3840 x 2160 pixels, which is 4K UHD quality. This high resolution provides four times the detail of standard 1080p cameras, ensuring clear imagery for identifying faces, license plates, or other critical details in surveillance footage.
Does this camera support both color and night vision modes?
Yes, the camera supports both color and monochrome (black-and-white) imaging. It uses a CMOS sensor that adapts to lighting conditions, delivering color video in adequate light and switching to monochrome in low-light scenarios to maintain visibility without requiring separate infrared illuminators in its base specification.
What type of zoom does the IP9191-HT offer, and what is its range?
This camera features a 2.5x optical zoom lens with a focal length range from 3.9 mm (wide-angle) to 10 mm (telephoto). Optical zoom provides mechanical adjustment for closer views without losing image quality, making it suitable for monitoring specific areas like entry points or parked vehicles from a fixed position.
Is the Vivotek IP9191-HT suitable for outdoor installation?
Yes, the IP9191-HT is designed for outdoor use, as indicated by its Indoor/Outdoor rating. Its housing is built to withstand environmental factors such as rain, dust, and temperature variations, making it reliable for perimeter security, parking lots, or building exteriors where exposure to the elements is expected.
What video compression formats does this camera support?
The camera supports H.264, H.265, and MJPEG video formats. H.265 offers advanced compression that reduces bandwidth and storage needs by up to 50% compared to H.264, while MJPEG provides simpler, frame-by-frame encoding for compatibility with various recording systems, giving flexibility in deployment based on network and storage constraints.
How is the IP9191-HT connected and managed on a network?
It connects via a wired RJ-45 Ethernet port, ensuring stable data transmission and compatibility with Power over Ethernet (PoE) if the network switch supports it. The camera includes remote management features, allowing administrators to configure settings, view live feeds, and adjust parameters through network-based software or interfaces without physical access to the unit.
