Vivotek FD9369-F2 2MP Full HD Dome Network Camera - Indoor/Outdoor - 98. 43 ft IR Night Vision - H. 265 - IP66 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the FD9369-F2 is a 2-megapixel CMOS sensor that captures 1920 x 1080 resolution video. The camera supports modern H.265 compression alongside H.264 and MJPEG, optimizing bandwidth and storage efficiency without sacrificing image quality. A fixed 2.8 mm lens with an f/2 aperture provides a balanced field of view suitable for general surveillance scenarios.
Advanced imaging features include Wide Dynamic Range (WDR) to handle high-contrast lighting, 3D Digital Noise Reduction for cleaner low-light footage, and Back Light Compensation (BLC) to prevent silhouetting. The camera also incorporates a removable IR cut-off filter for accurate color reproduction during daytime and automatic switching to monochrome mode at night.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This camera combines high-performance imaging with rugged environmental protection, offering a dependable solution for 24/7 surveillance. The integrated infrared illumination and 0 lux capability ensure reliable monitoring in complete darkness, while the IP66 and IK10 ratings guarantee durability against weather and vandalism.
Intelligent Video Analytics
Built-in motion detection, audio detection, and privacy masking enable proactive security monitoring and compliance with privacy regulations.
- Motion Detection
- Audio Detection
- Privacy Masking Zones
Flexible Storage & Management
Local recording via microSD card slot provides backup storage, while remote management capabilities allow centralized control of camera settings and footage access.
- SD Card Local Storage
- Remote Management
- Wired Connectivity
Deployment / Use Cases
The FD9369-F2 is designed for versatile deployment in both commercial and industrial settings. Its dome form factor and neutral appearance make it suitable for discreet installation in retail stores, offices, and hospitality environments where aesthetics matter. The camera's environmental ratings and wide operating temperature range also make it ideal for harsh outdoor applications.
Common use cases include perimeter security for warehouses and manufacturing facilities, parking lot surveillance, entry/exit monitoring for office buildings, and general area coverage in schools or municipal properties. The camera's 140° field of view and 98.43-foot night vision range provide excellent coverage for medium to large areas without requiring multiple units.
Retail & Commercial Security
Monitor sales floors, stock rooms, and entry points with crisp 1080p video. The dome design blends with commercial ceilings while providing vandal resistance.
Industrial & Perimeter Monitoring
Withstand outdoor elements while delivering clear footage of loading docks, parking areas, and facility perimeters day and night.

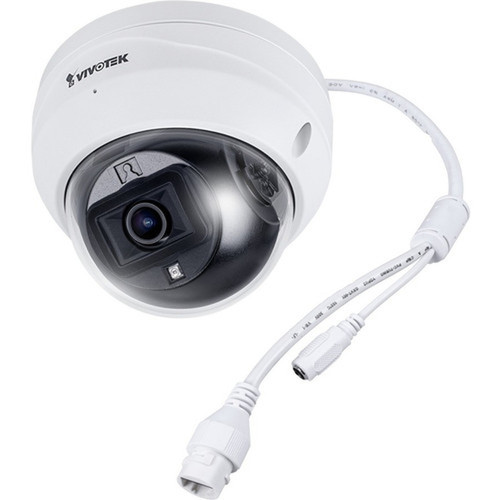

Physical Profile
The camera features a compact dome enclosure measuring 3.30 inches in height and 4.30 inches in diameter (83.82 mm x 109.22 mm), with an approximate weight of 1 pound (453.59 g). This streamlined profile facilitates installation on ceilings or walls using standard mounting hardware. The white dome housing provides a neutral appearance that complements most architectural environments while offering protection against tampering and environmental factors.
- Height
- 3.30" (83.82 mm)
- Weight
- 1 lb (453.59 g)
- Length
- 2.8 mm (0.11")
Highlights
- 2-megapixel CMOS sensor delivers Full HD 1080p video at 30 fps
- 98.43-foot (30-meter) infrared night vision with 0 lux capability
- IP66 weatherproof and IK10 vandal-resistant ratings for indoor/outdoor use
- H.265 compression reduces bandwidth and storage requirements by up to 50%
- 140° diagonal field of view provides wide area coverage
- Built-in microphone enables audio monitoring alongside video surveillance
- Supports local storage via microSD card for backup recording
- Wide Dynamic Range handles challenging lighting conditions
- Operates in temperatures from -22°F to 131°F (-30°C to 55°C)
- TAA compliant for government and institutional procurement
Specifications
| Specifications | |
|---|---|
| Manufacturer | Vivotek, Inc |
| Manufacturer Part Number | FD9369-F2 |
| Brand Name | Vivotek |
| Product Model | FD9369-F2 |
| Product Name | FD9369-F2 Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Number of IR LEDs | 1 |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Maximum Illumination | 0 lux |
| Color Supported | Color |
| Field of View | Horizontal: 116° Vertical: 65° Diagonal: 140° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MJPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/2 |
| Exposure | |
| Shortest Shutter Speed | 1/32000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Form Factor | Dome |
| Height | 3.30" (83.82 mm) |
| Diameter | 4.30" (109.22 mm) |
| Weight (Approximate) | 1 lb (453.59 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Built-in IR LED,SD Card Local Storage,Removable IR Cut-off Filter,Wide Dynamic Range,Day/Night,3D Digital Noise Reduction,Back Light Compensation (BLC),Highlight Compensation (HLC),Gain Control,Privacy Masking,Motion Detection,Audio Detection,Built-in Microphone |
| Indoor/Outdoor | Indoor/Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| TAA Compliant | Yes |
User Manual
FAQ
What is the effective resolution of this network camera?
The Vivotek FD9369-F2 features a 2-megapixel CMOS sensor that captures video at 1920 x 1080 Full HD resolution. This provides clear, detailed imagery suitable for identifying faces, license plates, and other important details in surveillance applications. The camera maintains this resolution at up to 30 frames per second for smooth, real-time monitoring.
How far does the night vision reach on this camera?
The integrated infrared illumination provides effective night vision up to 98.43 feet (30 meters) in complete darkness. The camera automatically switches to monochrome mode when illumination drops below threshold levels, utilizing a single high-power IR LED to illuminate the surveillance area without visible light pollution.
Is this camera suitable for outdoor installation?
Yes, the FD9369-F2 is rated IP66 for dust and water resistance and IK10 for impact protection, making it suitable for both indoor and outdoor deployment. It operates reliably in temperatures from -22°F to 131°F (-30°C to 55°C) and up to 95% humidity, ensuring consistent performance in various weather conditions.
What video compression formats does the camera support?
This camera supports H.265, H.264, and MJPEG compression formats. H.265 offers approximately 50% better compression efficiency than H.264, reducing bandwidth and storage requirements while maintaining video quality. This flexibility allows integration with various NVR systems and optimization for different network conditions.
Does this camera include audio monitoring capabilities?
Yes, the FD9369-F2 features a built-in microphone for audio detection and recording. This enables audio monitoring alongside video surveillance, with audio detection triggering alerts when sound levels exceed configured thresholds. The camera supports two-way audio when connected to compatible systems.
What storage options are available for this network camera?
The camera includes a microSD card slot for local storage, providing backup recording capability independent of network video recorders. This local storage can be configured for continuous recording or event-based recording triggered by motion detection, audio detection, or other alerts. The camera also supports remote management for accessing stored footage.
