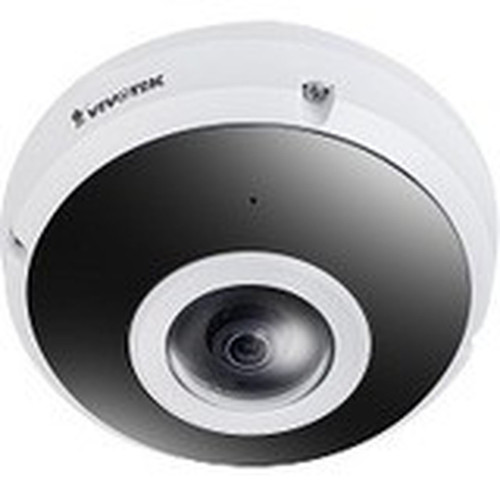

Vivotek FE9380-HV 5MP Outdoor Fisheye Network Camera - 1920 x 1920 - 30fps - H. 265/H. 264 - IP66/IK10 - Pendant Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a CMOS image sensor that supports both color and monochrome imaging, optimized for power efficiency and high-definition video output. The fixed 1.2 mm fisheye lens with an f/2.25 aperture ensures consistent wide-angle coverage without moving parts, reducing maintenance needs.
Network connectivity is wired via RJ-45, enabling reliable remote management and integration into existing surveillance systems. The camera operates across a broad temperature range from -22°F to 140°F (-30°C to 60°C) and up to 90% humidity, ensuring performance in varied climatic conditions.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The FE9380-HV combines high-resolution imaging with extreme durability, offering a practical solution for perimeter security and area monitoring. Its fisheye lens eliminates blind spots, while advanced video compression reduces bandwidth and storage requirements without sacrificing detail.
All-Weather Reliability
With IP66 sealing against dust and water ingress, plus IK10 impact resistance, this camera withstands harsh outdoor elements and potential vandalism, ensuring continuous operation in challenging environments.
- IP66 for dust/water protection
- IK10 for impact resistance
- Wide temperature tolerance
Efficient Surveillance
The 5MP sensor and H.265 support deliver clear footage while optimizing network and storage resources. Four IR LEDs provide effective night vision up to 32.81 feet, maintaining 24/7 monitoring capability.
- H.265 compression efficiency
- 4 IR LEDs for night vision
- 30 fps smooth video
Deployment / Use Cases
This camera is designed for outdoor surveillance applications where wide-area coverage and environmental resilience are priorities. Its pendant mount and fisheye lens make it suitable for mounting under eaves or on ceilings to monitor expansive spaces.
Common deployments include retail store entrances, warehouse loading docks, school courtyards, and corporate campuses. The TAA compliance also makes it appropriate for government and institutional projects requiring adherence to trade agreements.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The camera features a compact fisheye form factor with a diameter of 5.91 inches (150 mm) and height of 2.69 inches (68.20 mm), designed for discreet yet functional pendant mounting. The lightweight 695-gram construction simplifies installation while the included alignment sticker aids precise positioning for optimal coverage.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.69" (68.20 mm), 695 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 2.69" (68.20 mm)
- Weight
- 695 g
- Length
- 1.2 mm
What's in the Box
The package includes all essential components for immediate setup and operation.
Highlights
- 5-megapixel resolution for detailed 1920 x 1920 surveillance footage
- Fixed fisheye lens provides 360° coverage with a single camera
- H.265, H.264, and MJPEG video compression for bandwidth efficiency
- Night vision up to 32.81 ft (10 m) with 4 IR LEDs
- IP66 and IK10 ratings for outdoor durability and vandal resistance
- Pendant mount design for easy ceiling installation
- TAA compliant for government and institutional procurement
- 36-month limited warranty for long-term reliability
- CMOS sensor for power-efficient HD video
- Operates in temperatures from -22°F to 140°F (-30°C to 60°C)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Vivotek, Inc |
| Manufacturer Part Number | FE9380-HV |
| Brand Name | Vivotek |
| Product Series | C |
| Product Model | FE9380-HV |
| Product Name | Fisheye Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 32.81 ft (10 m) |
| Number of IR LEDs | 4 |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color,Monochrome |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MJPEG |
| Maximum Video Resolution | 1920 x 1920 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 1.2 mm |
| Maximum Aperture | f/2.25 |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | Pendant Mount |
| Form Factor | Fisheye |
| Height | 2.69" (68.20 mm) |
| Diameter | 5.91" (150 mm) |
| Weight (Approximate) | 695 g |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Indoor/Outdoor | Outdoor |
| Package Contents | Fisheye Network Camera Quick Installation Guide Warranty Card Screw Pack Alignment Sticker Desiccant Bag |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 36 Month |
User Manual
FAQ
What is the resolution and field of view of this camera?
The Vivotek FE9380-HV delivers 5-megapixel resolution at 1920 x 1920 pixels. Its fixed fisheye lens provides a 360° field of view, allowing comprehensive area coverage with a single camera, ideal for monitoring large outdoor spaces like parking lots or building perimeters.
How does the night vision perform?
This camera features four IR LEDs that enable night vision up to 32.81 feet (10 meters). It supports both color and monochrome imaging, ensuring clear surveillance in low-light conditions for 24/7 security monitoring.
Is this camera suitable for outdoor use?
Yes, the FE9380-HV is designed for outdoor deployment with an IP66 rating for protection against dust and water jets, and an IK10 impact resistance rating. It operates in temperatures from -22°F to 140°F (-30°C to 60°C) and up to 90% humidity, making it resilient in harsh environments.
What video formats are supported?
The camera supports H.265, H.264, and MJPEG video formats. H.265 compression reduces bandwidth and storage needs while maintaining high video quality, which is beneficial for continuous recording and remote viewing over networks.
How is this camera mounted?
It uses a pendant mount design for ceiling installation, included in the package with a screw pack and alignment sticker. This mounting style is optimal for achieving the fisheye lens's full 360° coverage in outdoor or indoor high-ceiling areas.
What is included in the warranty?
Vivotek provides a 36-month limited warranty for this camera, covering defects in materials and workmanship. This extended warranty period supports long-term deployment in surveillance systems, ensuring reliability for critical security applications.
What processor does this product use?
Vivotek FE9380-HV 5 Megapixel Outdoor HD Network Camera - Color, Monochrome - Fisheye - 32.81 ft (10 m) - H.265, H.264, MJPEG - 1920 (FE9380-HV) is positioned around the listed processor configuration, giving buyers a clearer view of expected performance for business workloads and everyday deployment needs.
