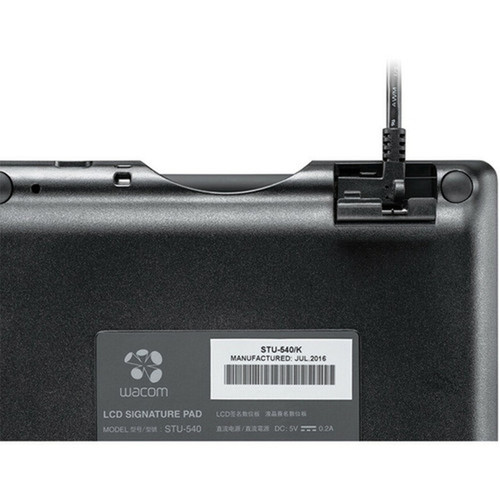

Wacom STU-540 Signature Pad - 5" LCD Display - 2540 LPI - Active Pen - Wired USB
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The STU-540 features a 5" LCD display with an 800 x 480 screen resolution and 2540 lines per inch (LPI) capture resolution, ensuring detailed signature reproduction. The active area measures 4.25" (108 mm) by 2.56" (65 mm), providing ample space for signature input while maintaining a compact form factor suitable for countertop use.
Connectivity is handled through a wired USB interface, offering plug-and-play compatibility with most POS systems, computers, and document management software. The included active pen works in conjunction with the display to capture pressure-sensitive signatures with natural feel and accuracy.
This section brings together practical product details such as Connectivity Technology, Input Device Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The STU-540 delivers reliable signature capture with professional-grade components and straightforward integration. Its combination of display quality, capture resolution, and durable construction makes it suitable for high-volume environments where signature verification occurs frequently.
High-Resolution Capture
With 2540 LPI resolution, the signature pad captures fine details of signatures with exceptional clarity, supporting legal document requirements and audit trails.
- Precise line reproduction
- Detailed signature fidelity
- Supports legal compliance
Integrated Display
The 5" LCD allows customers to see their signature as they write, providing immediate visual confirmation and improving the user experience during transaction completion.
- Real-time signature display
- Customer verification
- Reduces errors
Simple Connectivity
Wired USB connectivity ensures stable operation without wireless interference or battery concerns, making installation and maintenance straightforward for IT teams.
- Plug-and-play setup
- No wireless configuration
- Consistent performance
Deployment / Use Cases
The Wacom STU-540 is optimized for environments where electronic signature capture is part of standard transaction or document processing workflows. Its wired design and compact footprint make it ideal for fixed countertop installations where reliability and ease of use are priorities.
Common deployment scenarios include retail point-of-sale terminals for credit card authorizations, bank teller stations for account openings and transactions, medical offices for patient consent forms, and corporate offices for contract signings and document approvals. The device integrates with most signature capture software and POS systems that support USB input devices.
Retail POS Integration
Connect directly to POS systems for credit card transactions, returns, and age verification signatures, streamlining checkout processes and reducing paper receipt handling.
Document Processing Workflows
Capture signatures electronically for contracts, applications, and consent forms, enabling digital document management and reducing physical storage requirements.
Highlights
- 5" LCD display for real-time signature visualization
- 2540 LPI resolution captures detailed signature characteristics
- Active pen provides natural writing feel and pressure sensitivity
- Wired USB connectivity for reliable plug-and-play operation
- Active area of 4.25" x 2.56" accommodates most signature sizes
- 800 x 480 screen resolution ensures clear display quality
- 3-year limited warranty for long-term reliability assurance
- Made for integration with POS systems and document software
Specifications
| Specifications | |
|---|---|
| Manufacturer | Wacom Technology Co |
| Manufacturer Part Number | STU-540 |
| Brand Name | Wacom |
| Product Model | STU-540 |
| Product Name | STU-540 Signature Pad |
| Product Type | Signature Pad |
| Technical Information | |
| Connectivity Technology | Wired |
| Input Devices | |
| Input Device Type | Active Pen |
| Display & Graphics | |
| Screen Size | 5" |
| Display Screen Type | LCD |
| Active Area | 4.25" (108 mm) x 2.56" (65 mm) |
| Resolution (LPI) | 2540 |
| Screen Resolution | 800 x 480 |
| Interfaces/Ports | |
| Host Interface | USB |
| Miscellaneous | |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What is the screen size of the Wacom STU-540 signature pad?
The STU-540 features a 5" LCD display that shows signatures as they are written, allowing customers to verify their signature immediately. This display size provides sufficient viewing area while maintaining a compact form factor suitable for countertop installations.
What resolution does this signature pad capture signatures at?
The device captures signatures at 2540 lines per inch (LPI), which provides high-detail reproduction of signature characteristics. This resolution level supports legal document requirements by accurately capturing fine lines and pressure variations from the active pen.
How does the STU-540 connect to my system?
The signature pad uses wired USB connectivity for plug-and-play installation. This connection method provides stable data transmission without wireless interference or battery concerns, making it compatible with most POS systems, computers, and document management software that support USB input devices.
What type of pen is included with the signature pad?
The STU-540 includes an active pen designed specifically for use with the signature pad's display surface. This pen provides a natural writing feel and captures pressure-sensitive signatures, allowing for accurate reproduction of signature characteristics during electronic capture.
What is the active area size for signature input?
The active signature area measures 4.25" (108 mm) wide by 2.56" (65 mm) tall, providing ample space for most signatures while maintaining a compact device footprint. This size accommodates typical signature dimensions without requiring excessive counter space.
What warranty coverage does the STU-540 include?
Wacom provides a 3-year limited warranty for the STU-540 signature pad, covering defects in materials and workmanship under normal use. This warranty period reflects the device's construction for reliable performance in commercial environments where signature capture occurs frequently.
