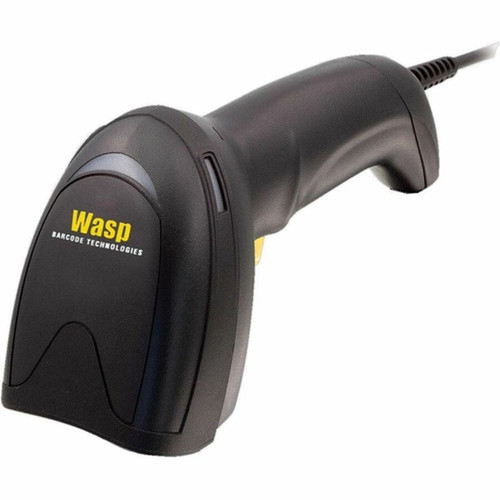

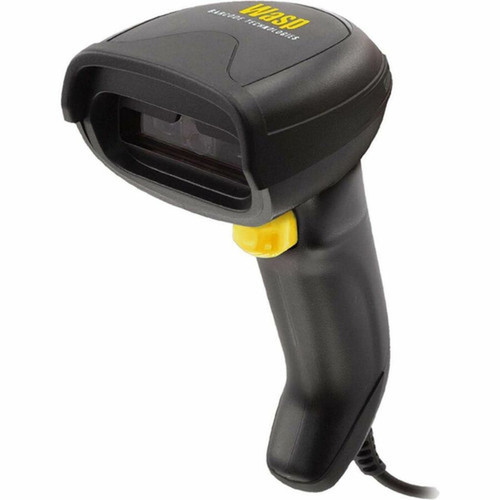

Wasp 633809009013 WDI9600 USB Laser Barcode Scanner - 400 scan/s - 57. 87" Range - 1D Linear CCD
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- WDI9600 USB Laser Barcode Scanner
- 6' USB cable
- Scanner programming guide
- 2-year warranty
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:
1D/Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes
Light Source: Laser
Image Sensor Type: CCD
Scan Rate: 400 scan/s
Scan Mode: Trigger
Scan Pattern: Linear
Scanning Distance: 57.87" (1470 mm)
Cable Type Included: USB
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 45°
Maximum Ambient Light: 130000 lux
Drop Specification:
Withstands repeated drops from 6.0 ft (1.8 m) onto a concrete surface.
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (Code 39): 20 mil (0.51 mm)
Illumination Type: LED
Features: Notification LED,Beep,3GL,Scan Button
Host Interface: USB
Input Current: 350 mA
Standby Current: 60 mA
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 0% to 95%
Form Factor: Handheld
Color Family: Dual Color
Product Color: Black,Yellow
Durability: Chemical Resistant
Width: 6.50" (165.10 mm)
Depth: 2.70" (68.58 mm)
Length: 4.30" (109.22 mm)
Weight (Approximate): 5.75 oz (163.01 g)
Package Contents:
Ingress Protection (IP) Rating: IP52
Application/Usage: Retail,Light/Clean Manufacturing,Healthcare,Laboratory,Pharmacy,Ticketing,Entertainment,Commercial Service
Platform Supported: Smartphone
Environmental Compliance: China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- Enhanced linear imaging technology for superior scanning and depth of field
- Soft line viewfinder technology to easily target the barcode to be read
- USB connectivity
- Disinfectant-ready enclosure resistant to harsh chemical cleaning
[custom-specifications]
| Specifications | |
| Manufacturer | Wasp Barcode Technologies |
| Manufacturer Part Number | 633809009013 |
| Manufacturer Website Address | http://www.waspbarcode.com |
| Brand Name | Wasp |
| Product Model | WDI9600 |
| Product Name | WDI9600 USB Laser Barcode Scanner |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported | 1D/Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes |
| Light Source | Laser |
| Image Sensor Type | CCD |
| Scan Rate | 400 scan/s |
| Scan Mode | Trigger |
| Scan Pattern | Linear |
| Scanning Distance | 57.87" (1470 mm) |
| Cable Type Included | USB |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 45° |
| Maximum Ambient Light | 130000 lux |
| Drop Specification | Withstands repeated drops from 6.0 ft (1.8 m) onto a concrete surface. |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Illumination Type | LED |
| Features | Notification LED,Beep,3GL,Scan Button |
| Interfaces/Ports | |
| Host Interface | USB |
| Power Description | |
| Input Current | 350 mA |
| Standby Current | 60 mA |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Dual Color |
| Product Color | Black,Yellow |
| Durability | Chemical Resistant |
| Width | 6.50" (165.10 mm) |
| Depth | 2.70" (68.58 mm) |
| Length | 4.30" (109.22 mm) |
| Weight (Approximate) | 5.75 oz (163.01 g) |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Retail,Light/Clean Manufacturing,Healthcare,Laboratory,Pharmacy,Ticketing,Entertainment,Commercial Service |
| Platform Supported | Smartphone |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-options]
| Product | WDI9600 Battery Pack, Removable, RBP-9001, Black - For Barcode Scanner - Battery Rechargeable - Proprietary Battery Size |
| SKU | 633809008771 |
| Sale Price | $68.95 |
| Product | Wasp WDI4700, WDI9600 Scanner Smart Stand - For Barcode Scanner - Flexible, Adjustable |
| SKU | 633809007231 |
| Sale Price | $73.95 |
| Product | WaspProtect Extended Service Plan for WDI9600 - Service Depot - Maintenance - Parts & Labor |
| SKU | 633809009211 |
| Sale Price | $48.95 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
User-Manual
[/custom-user-manual]
