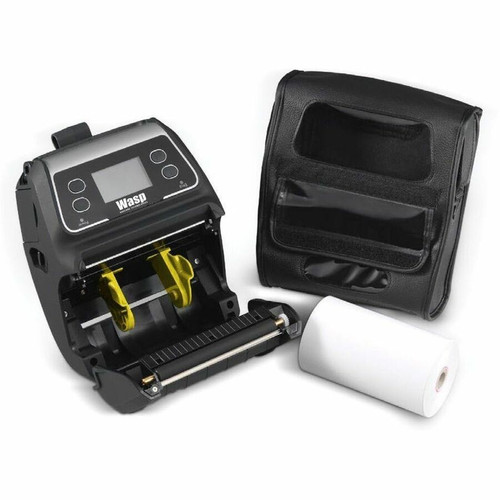

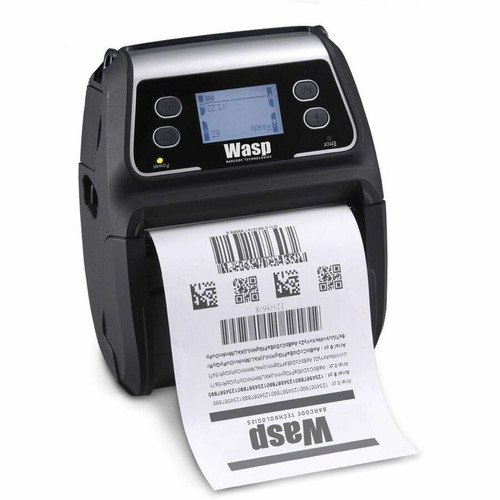

Wasp WPL4M Warehouse, Retail, Mobile, POS System, Distribution Center, Packaging Label Direct Thermal Printer - Portable - Label Print (633809009419)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Android
- Windows
Recommended Use: Label Print
Maximum Mono Print Speed: 4.02 in/s (102 mm/s)
Maximum Print Resolution (dpi): 203
Maximum Print Length: 90" (2286 mm)
Maximum Print Width: 4.09" (104 mm)
Barcode Symbology Supported: 1D,Code 11,Code 39,Code 93,Code 128 UCC,Code 128 (A/B/C),Codabar,Interleaved 2 of 5,EAN-8,EAN-13,EAN-14,EAN-128,UPC-E,UPC-A,EAN and UPC 2(5) Digits Add-On,MSI,Plessey,POSTNET,China Post,ITF-14,Telepen,Deutsche Post Identcode,Deutsche Post Leitcode,LOGMARS,2D,Code 49,PDF-417,Micro PDF-417,Maxi Code,Data Matrix,QR Code,AZTEC,CODABLOCK F Mode,GS1 DataBar
Connectivity Technology: Wired & Wireless
Application/Usage: Warehouse,Retail,Mobile,POS System,Distribution Center,Packaging Label
Features: Rugged,Plug and Play,Lightweight,Dust Resistant,Water Resistant
Mobile Device Printing: Yes
Standard Memory: 32 MB
Flash Memory: 16 MB
USB Host: Yes
Serial Port: Yes
USB: Yes
USB Standard: USB 2.0
Bluetooth: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11a/b/g/n
Media Type: Label,Continuous Label,Die-cut Label,Black Mark,Fanfold,Notch
Media Sensor: Transmissive Media Sensor,Gap Sensor,Black Mark Sensor,Reflective Media Sensor,Head Open Sensor
Media Thickness: 6.3 mil (0.16 mm)
Maximum Roll Diameter: 1" (25.40 mm)
Maximum Label Width: 4.41" (112 mm)
Language Emulation: WPL,EPL,ZPL,ZPL II,ESC/POS,CPCL
Operating System Supported:
Power Source: Battery
Battery Capacity: 5800 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Operating Temperature: 14°F (-10°C) - 122°F (50°C)
Operating Relative Humidity: 10% - 90%
Storage Temperature: -40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity: 10% - 90%
Form Factor: Portable
Height: 7.54" (191.60 mm)
Width: 6.30" (160 mm)
Depth: 3.11" (79 mm)
Weight (Approximate): 2.43 lb (1100 g)
Compatibility: iPhone,iPad
Platform Supported: iOS,Android
- A smart and inexpensive solution to print temporary documents
- Delivers high-speed, hassle-free labeling solution for your business needs
- Ideal to be used in field service, and in any application that has a need to print on the go
- Enjoy the freedom of wireless connectivity. With Wi-Fi, you will get things done faster.
[custom-specifications]
| Specifications | |
| Manufacturer | Wasp Barcode Technologies |
| Manufacturer Part Number | 633809009419 |
| Manufacturer Website Address | http://www.waspbarcode.com |
| Brand Name | Wasp |
| Product Model | WPL4M |
| Product Name | Mobile Label Printer |
| Product Type | Direct Thermal Printer |
| Technical Information | |
| Recommended Use | Label Print |
| Maximum Mono Print Speed | 4.02 in/s (102 mm/s) |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Length | 90" (2286 mm) |
| Maximum Print Width | 4.09" (104 mm) |
| Barcode Symbology Supported | 1D,Code 11,Code 39,Code 93,Code 128 UCC,Code 128 (A/B/C),Codabar,Interleaved 2 of 5,EAN-8,EAN-13,EAN-14,EAN-128,UPC-E,UPC-A,EAN and UPC 2(5) Digits Add-On,MSI,Plessey,POSTNET,China Post,ITF-14,Telepen,Deutsche Post Identcode,Deutsche Post Leitcode,LOGMARS,2D,Code 49,PDF-417,Micro PDF-417,Maxi Code,Data Matrix,QR Code,AZTEC,CODABLOCK F Mode,GS1 DataBar |
| Connectivity Technology | Wired & Wireless |
| Application/Usage | Warehouse,Retail,Mobile,POS System,Distribution Center,Packaging Label |
| Features | Rugged,Plug and Play,Lightweight,Dust Resistant,Water Resistant |
| Mobile Device Printing | Yes |
| Memory | |
| Standard Memory | 32 MB |
| Flash Memory | 16 MB |
| Interfaces/Ports | |
| USB Host | Yes |
| Serial Port | Yes |
| USB | Yes |
| USB Standard | USB 2.0 |
| Network & Communication | |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n |
| Media Types & Handling | |
| Media Type | Label,Continuous Label,Die-cut Label,Black Mark,Fanfold,Notch |
| Media Sensor | Transmissive Media Sensor,Gap Sensor,Black Mark Sensor,Reflective Media Sensor,Head Open Sensor |
| Media Thickness | 6.3 mil (0.16 mm) |
| Maximum Roll Diameter | 1" (25.40 mm) |
| Maximum Label Width | 4.41" (112 mm) |
| Fonts & Emulation | |
| Language Emulation | WPL,EPL,ZPL,ZPL II,ESC/POS,CPCL |
| Software | |
| Operating System Supported |
|
| Power Description | |
| Power Source | Battery |
| Battery Information | |
| Battery Capacity | 5800 mAh |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Environmental Conditions | |
| Operating Temperature | 14°F (-10°C) - 122°F (50°C) |
| Operating Relative Humidity | 10% - 90% |
| Storage Temperature | -40°F (-40°C) - 140°F (60°C) |
| Storage Relative Humidity | 10% - 90% |
| Physical Characteristics | |
| Form Factor | Portable |
| Height | 7.54" (191.60 mm) |
| Width | 6.30" (160 mm) |
| Depth | 3.11" (79 mm) |
| Weight (Approximate) | 2.43 lb (1100 g) |
| Miscellaneous | |
| Compatibility | iPhone,iPad |
| Platform Supported | iOS,Android |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
