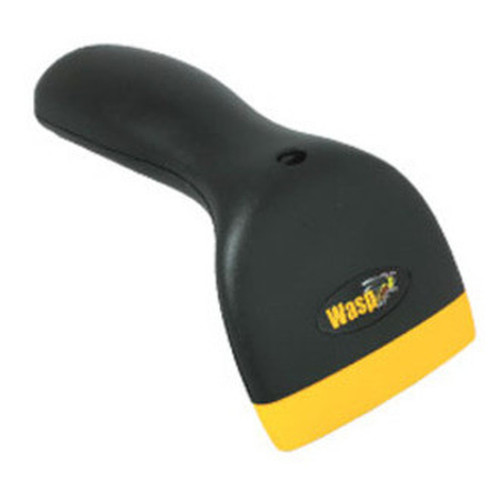

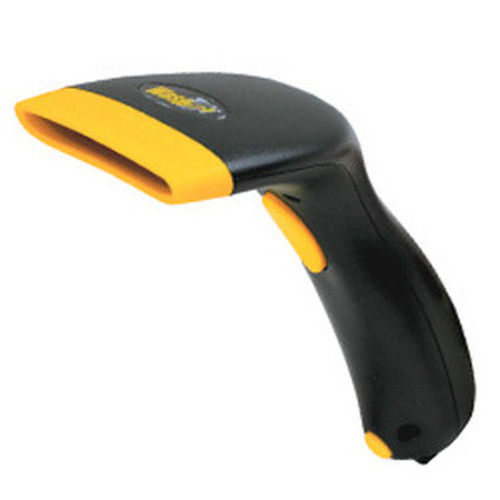

WCS3900 CCD Barcode Scanner (USB) - Cable Connectivity - 45 scan/s - 1" (25.40 mm) Scan Distance - 1D - LED - Imager, CCD - Linear - - (633808091040)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Codabar
- Code 3 of 9 (Code 39)
- Code 3 of 9 Full ASCII
- Code 11
- Code 32
- Code 93
- Code 128 (including UCC/EAN 128)
- EAN/JAN-8 (plus supplements)
- EAN/JAN-13 (plus supplements)
- Industrial 2 of 5 (25)
- Interleaved 2 of 5
- ISBN
- Matrix 25
- MSI Plessey
- UPC-A (plus supplements)
- UPC-E (plus supplements)
- China Post Code
- RSS14
- Telepen
- WCS3900 Bar Code Reader
- 6ft. USB Cable
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported: 1D:
Light Source: LED
Image Sensor Type: Imager,CCD
Scan Rate: 45 scan/s
Scan Pattern: Linear
Scanning Distance: 1" (25.40 mm)
Cable Type Included: USB
Features: Ergonomic Design
Host Interface: USB
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing): 20% to 80%
Form Factor: Handheld
Color Family: Dual Color
Product Color: Black,Yellow
Product Material: Acrylonitrile Butadiene Styrene (ABS)
Height: 1.06" (26.92 mm)
Width: 3.62" (91.95 mm)
Length: 7.40" (187.96 mm)
Weight (Approximate): 4.41 oz (125 g)
Package Contents:
Application/Usage: Retail
Platform Supported: PC
Country of Origin: Taiwan
Limited Warranty: 2 Year
- One-touch scanning
- Durable design manufactured from high-quality ABS plastic
- Includes 6' USB or PS/2 cable
- Aggressive 200 scans / second decode rate
- CCD scan engine provides 45 scans per second decode rate
- Lightweight, ergonomic design
- Maximum barcode scanning width of 3.25"
- Hands-free scanning (with optional stand)
[custom-specifications]
| Specifications | |
| Manufacturer | Wasp Barcode Technologies |
| Manufacturer Part Number | 633808091040 |
| Manufacturer Website Address | http://www.waspbarcode.com |
| Brand Name | Wasp |
| Product Model | WCS3900 |
| Product Name | WCS3900 CCD Barcode Scanner (USB) |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported | 1D:
|
| Light Source | LED |
| Image Sensor Type | Imager,CCD |
| Scan Rate | 45 scan/s |
| Scan Pattern | Linear |
| Scanning Distance | 1" (25.40 mm) |
| Cable Type Included | USB |
| Features | Ergonomic Design |
| Interfaces/Ports | |
| Host Interface | USB |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -4°F (-20°C) to 140°F (60°C) |
| Humidity (Non-condensing) | 20% to 80% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Dual Color |
| Product Color | Black,Yellow |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Height | 1.06" (26.92 mm) |
| Width | 3.62" (91.95 mm) |
| Length | 7.40" (187.96 mm) |
| Weight (Approximate) | 4.41 oz (125 g) |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Retail |
| Platform Supported | PC |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
