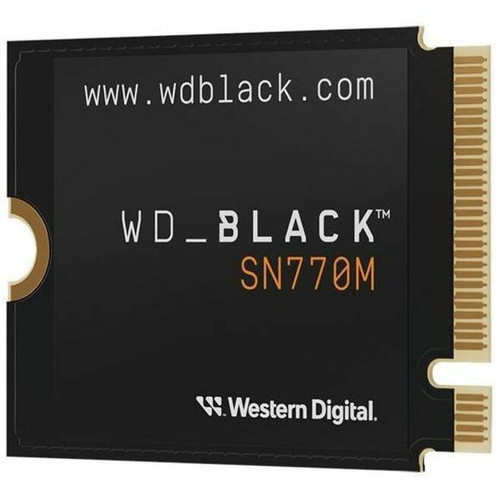

WD Black SN770M 2 TB M.2 2230 Internal PCIe NVMe 4.0 Solid State Drive Handheld Device Optimized Express PCI WDBDNH0020BBK-WRSN
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Storage Capacity: 2 TB
Platform Supported: PC
Random 4KB Read: 650000IOPS
Random 4KB Write: 800000IOPS
Endurance (TBW): 1200 TB
Maximum Sequential Read: 5.03 GB/s
Maximum Sequential Write: 4.74 GB/s
Drive Interface: PCI Express NVMe
Drive Interface Standard: PCI Express NVMe 4.0 x4
Drive Type: Internal
Form Factor: M.2 2230
Height: 90.16 mil (2.29 mm)
Width: 0.87" (22.10 mm)
Length: 1.18" (29.97 mm)
Weight (Approximate): 0.10 oz (2.80 g)
Device Supported: Handheld Gaming Console,Notebook
Operating System Compatibility: Windows 10+
Limited Warranty: 5 Year
- Supercharge compatible handheld devices such as the ASUS™ ROG Ally™ and Valve® Steam® Deck for faster loading and installation
- Play more games wherever you are with up to 2TB of trusted Western Digital TLC 3D NAND storage.
- Exclusive gaming features including PCIe® Gen 4.0, Western Digital's nCache 4.0 technology, and Microsoft's DirectStorage Support
[custom-specifications]
| Specifications | |
| Manufacturer | Western Digital Corporation |
| Manufacturer Part Number | WDBDNH0020BBK-WRSN |
| Manufacturer Website Address | http://www.westerndigital.com |
| Brand Name | WD |
| Product Line | Black |
| Product Series | SN770M |
| Product Model | WDBDNH0020BBK-WRSN |
| Product Name | Black SN770M NVMe SSD - 2TB |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 2 TB |
| Platform Supported | PC |
| Drive Performance | |
| Random 4KB Read | 650000IOPS |
| Random 4KB Write | 800000IOPS |
| Endurance (TBW) | 1200 TB |
| Maximum Sequential Read | 5.03 GB/s |
| Maximum Sequential Write | 4.74 GB/s |
| Interfaces/Ports | |
| Drive Interface | PCI Express NVMe |
| Drive Interface Standard | PCI Express NVMe 4.0 x4 |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | M.2 2230 |
| Height | 90.16 mil (2.29 mm) |
| Width | 0.87" (22.10 mm) |
| Length | 1.18" (29.97 mm) |
| Weight (Approximate) | 0.10 oz (2.80 g) |
| Miscellaneous | |
| Device Supported | Handheld Gaming Console,Notebook |
| Operating System Compatibility | Windows 10+ |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
