Wisenet QRN-830S-2TB 8-Channel NVR with 2 TB HDD - 8MP Full HD Recording - HDMI - Remote Management
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This NVR leverages advanced video compression formats including H.265 and H.264, which optimize storage efficiency without compromising image quality. The 8-channel capacity allows simultaneous recording from up to eight IP cameras, supporting resolutions up to 8MP for detailed surveillance footage. With a maximum frame rate of 60 fps, the system captures fast-moving events with minimal motion blur, enhancing forensic review capabilities.
The recorder features a dedicated audio input and output port, enabling audio recording and playback alongside video. Network connectivity is handled through a standard Ethernet port, facilitating integration into LAN environments. Power consumption is rated at 65 watts, ensuring energy-efficient operation in continuous-use scenarios. The unit's physical dimensions are 11.81" wide, 9.41" deep, and 1.87" high, with a weight of 1.32 kg for easy handling and installation.
Relevant factors for this section include Total Number of Channels, Connectivity Technology, Recording Formats, Hard Drive Capacity. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Wisenet QRN-830S-2TB combines high-capacity storage with robust recording performance, delivering a reliable foundation for surveillance systems. Its 8-channel design scales effectively for small business, retail, or educational environments, providing comprehensive coverage without complex infrastructure.
Efficient Storage Management
With 2 TB of pre-installed storage and support for H.265 compression, the NVR maximizes recording duration while maintaining high video quality, reducing the need for frequent maintenance or upgrades.
- 2 TB HDD included
- H.265 and H.264 support
- Optimized for continuous recording
Remote Accessibility
Remote management features allow administrators to view live feeds, playback recordings, and configure settings from any internet-connected device, enhancing operational flexibility and security oversight.
- Access from anywhere
- Live view and playback
- Configuration via network
Deployment / Use Cases
This NVR is ideal for deployments requiring a balanced mix of channel count, storage capacity, and recording quality. Its 8-channel capacity suits small office buildings, retail stores, warehouses, or school campuses where multiple camera feeds need centralized management.
Common use cases include perimeter security monitoring, indoor surveillance in lobbies or hallways, and point-of-sale oversight in retail environments. The HDMI output supports local monitoring stations, while Ethernet connectivity enables integration into larger networked security systems. The compact form factor allows for installation in server racks, network closets, or under-desk locations, adapting to various spatial constraints.
Small Business Security
Deploy in retail shops or offices to monitor entrances, stock rooms, and customer areas with up to eight cameras, using the 2 TB storage for extended recording periods.
Educational Facility Monitoring
Use in schools or campuses to oversee common areas, corridors, and outdoor spaces, leveraging remote management for administrative access and incident review.
Physical Profile

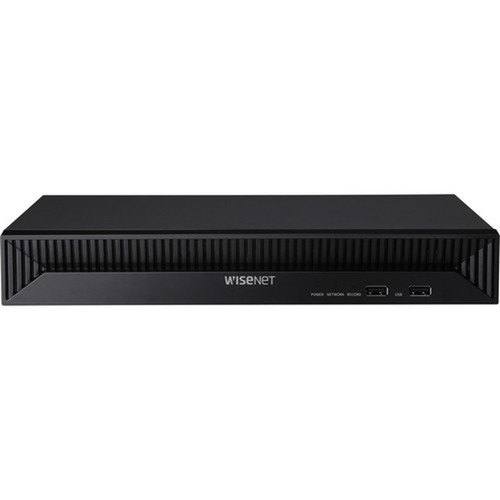

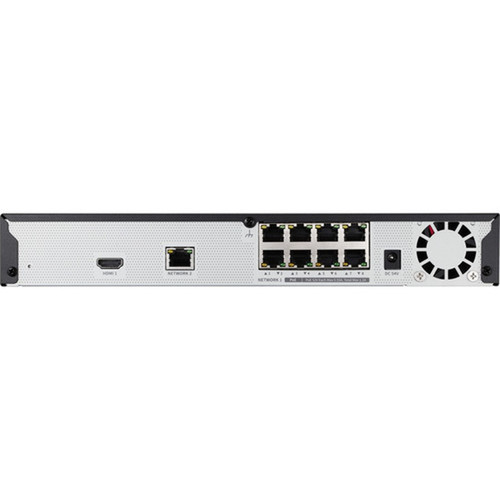

The NVR features a compact and durable chassis measuring 11.81" in width, 9.41" in depth, and 1.87" in height, with a weight of 1.32 kg. This slim profile supports both desktop placement and standard rack mounting, offering flexibility for various installation environments. The design includes ventilation for heat dissipation during continuous operation, ensuring reliability in enclosed spaces. The front panel provides easy access to status indicators and USB ports, while rear ports accommodate HDMI, Ethernet, audio, and power connections for streamlined cabling.
- Width
- 11.81" (300 mm)
- Depth
- 9.41" (238.90 mm)
- Height
- 1.87" (47.60 mm)
- Weight
- 1.32 kg
Highlights
- 8-channel capacity for small-to-mid range surveillance needs
- Pre-installed 2 TB hard drive for substantial local storage
- Supports up to 8MP resolution at 60 fps for clear video
- H.265 and H.264 video compression for efficient storage
- HDMI output enables direct local monitoring
- Remote management allows access from any internet-connected location
- Wired Ethernet connectivity ensures reliable network integration
- Includes audio input and output ports for synchronized audio recording
- Compact design fits rack or desktop installations
- Power consumption of 65 watts for energy-efficient operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | QRN-830S-2TB |
| Brand Name | Wisenet |
| Product Model | QRN-830S |
| Product Name | 8CH NVR |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Total Number of Channels | 8 |
| Connectivity Technology | Wired |
| Recording Formats | Full HD |
| HD Recording | Yes |
| System Components | Network Video Recorder |
| Storage | |
| Hard Drive Capacity | 2 TB |
| Video | |
| Video Formats | H.265,H.264,Motion JPEG |
| Maximum Resolution | 8MP |
| Maximum Frame Rate | 60 fps |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| HDMI | Yes |
| Power Description | |
| Power Consumption | 65 W |
| Physical Characteristics | |
| Height | 1.87" (47.60 mm) |
| Width | 11.81" (300 mm) |
| Depth | 9.41" (238.90 mm) |
| NVR Weight | 1.32 kg |
User Manual
FAQ
How many cameras can I connect to this NVR?
The Wisenet QRN-830S-2TB supports up to 8 channels, meaning you can connect and record from up to eight IP cameras simultaneously. This capacity is suitable for small-to-mid range surveillance setups such as retail stores, offices, or educational facilities.
What is the maximum recording resolution supported?
This NVR supports recording at resolutions up to 8MP, which provides high-definition video quality for detailed surveillance footage. Combined with a maximum frame rate of 60 fps, it captures smooth and clear video, enhancing the ability to review fast-moving events or identify details in recorded scenes.
Does the NVR come with storage included?
Yes, the NVR includes a pre-installed 2 TB hard drive, offering substantial local storage for continuous video recording. This capacity allows for extended recording periods without immediate need for expansion, and it supports efficient video formats like H.265 to maximize storage utilization.
Can I access the NVR remotely?
Yes, the NVR features remote management capabilities, allowing you to access live feeds, playback recordings, and adjust settings from any location with an internet connection. This is facilitated through wired Ethernet connectivity, providing a stable and secure link for administrative oversight.
What video compression formats does the NVR use?
The NVR supports H.265, H.264, and Motion JPEG video formats. H.265 and H.264 are advanced compression standards that reduce file sizes while maintaining high image quality, helping to extend storage capacity and optimize bandwidth usage in networked environments.
What are the physical dimensions and weight of the NVR?
The NVR measures 11.81" in width, 9.41" in depth, and 1.87" in height, with a weight of 1.32 kg. This compact and lightweight design facilitates easy installation in various settings, such as desktop placements, network racks, or enclosed cabinets, without requiring extensive space.
