Wisenet ACE-8020R 5MP Analog HD Flateye Camera - Color - White - 65. 62 ft (20 m) IR Night Vision - 2592 x 1944 @ 30 fps - 3. 6 mm Fixed Lens - IP67
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ACE-8020R uses a 1/2.5" CMOS image sensor to capture 5-megapixel stills and video. It supports multiple analog video signal formats including AHD, TVI, CVI, and CVBS, offering compatibility with a range of existing surveillance systems.
Advanced imaging features include day/night functionality with an ICR filter, wide dynamic range (WDR), backlight compensation, and 2D/3D digital noise reduction. These technologies optimize image quality under challenging lighting conditions such as direct sunlight or low-light scenes.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The ACE-8020R combines high-resolution imaging with robust environmental protection, making it a practical choice for security professionals. Its Flateye design minimizes visual intrusion while delivering reliable performance across varying conditions.
Enhanced Low-Light Performance
With a sensitivity of 0.08 lux at F1.6 in color mode and 0 lux in black-and-white mode when IR LEDs are active, this camera captures clear footage even in near-darkness. The built-in infrared illuminators provide consistent night vision up to 20 meters.
- 0.08 lux @ F1.6 (Color)
- 0 lux (B/W with IR LED on)
- 65.62 ft (20 m) IR distance
Durability and Reliability
Rated IP67 for dust and water resistance and IK10 for impact protection, the camera withstands harsh weather, vandalism, and industrial environments. It operates reliably from -30°C to 55°C, ensuring year-round functionality.
- IP67 ingress protection
- IK10 impact rating
- Wide temperature tolerance
Deployment / Use Cases
This camera is engineered for straightforward integration into analog HD surveillance systems, supporting transmission distances up to 500 meters with coaxial control. Its plug-and-play installation simplifies setup for small businesses, retail stores, and residential properties.
Typical applications include monitoring entrances, parking lots, warehouses, and perimeter fences where high-resolution daytime footage and reliable night vision are essential. The backbox mount allows for secure attachment to walls or ceilings, while the white color blends with most architectural finishes.
Commercial Security
Deploy the ACE-8020R in retail environments, office buildings, or industrial sites to deter theft, monitor access points, and ensure employee safety. Its multi-protocol compatibility reduces integration complexity with existing recorders.
Outdoor Surveillance
Use this camera for outdoor monitoring where weather resistance and night vision are critical. The IP67 rating protects against rain and dust, while the infrared illumination maintains visibility after dark.
Physical Profile

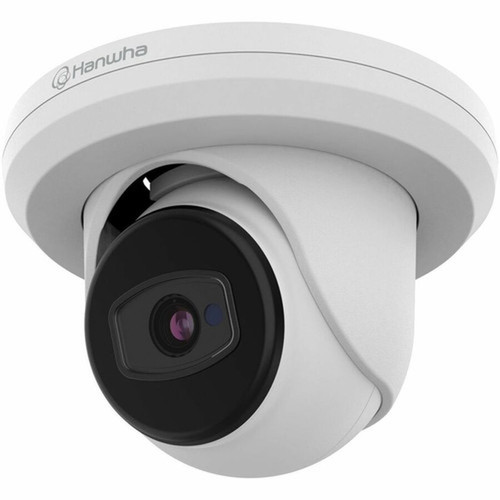

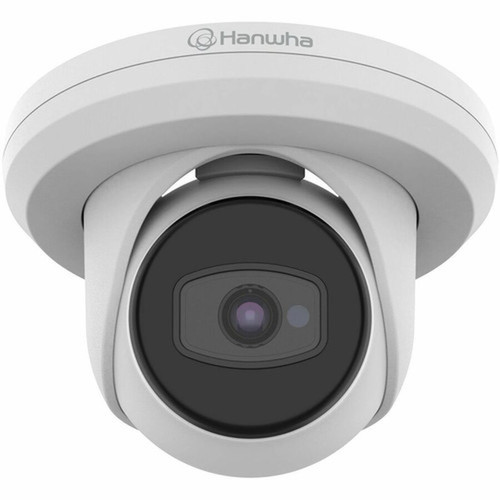

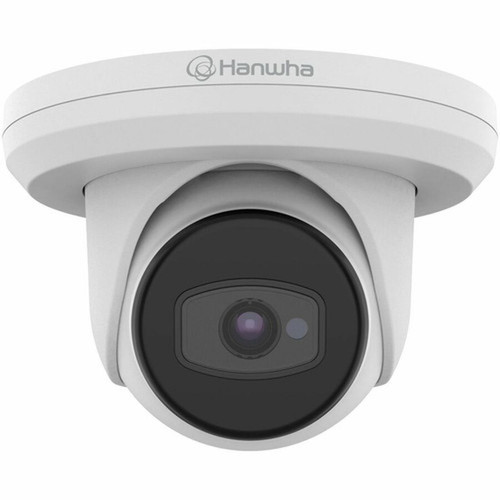

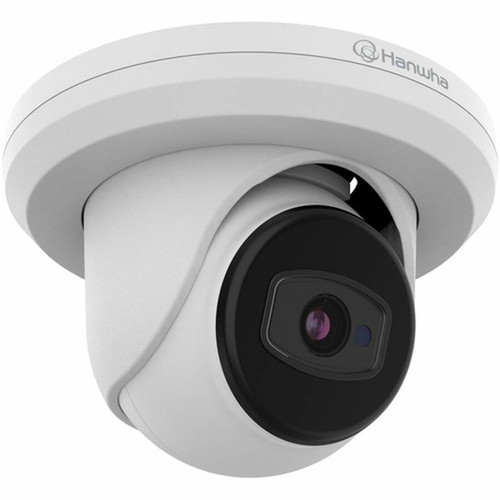

The camera features a compact Flateye form factor with a diameter of 4.72 inches (120 mm) and a weight of 14.46 ounces (410 grams). Its white finish and low-profile design minimize visual impact, making it suitable for discreet installation in both indoor and outdoor settings.
The backbox mount provides a secure attachment point for walls or ceilings, supporting stable positioning. The lightweight construction simplifies handling during installation without compromising durability.
- Weight
- 14.46 oz (410 g)
- Length
- 3.6 mm (0.14")
Highlights
- 5-megapixel resolution at 2592 x 1944 with 30 fps frame rate
- 65.62 ft (20 m) infrared night vision for 24/7 monitoring
- Fixed 3.6 mm lens with H:83.9°, V:63.4°, D:104° field of view
- IP67 and IK10 ratings for dust, water, and impact resistance
- Supports AHD, TVI, CVI, and CVBS analog video formats
- 12V DC power with 5.40W maximum consumption
- Operating temperature range of -22°F to 131°F (-30°C to 55°C)
- Plug-and-play installation with coaxial control up to 500m
- Day/night functionality with ICR filter and wide dynamic range
- 5-year limited warranty from Wisenet
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | ACE-8020R |
| Brand Name | Wisenet |
| Product Series | A |
| Product Model | ACE-8020R |
| Product Name | ACE-8020R 5MP Analog HD Flateye Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft (20 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.5" |
| Color Supported | Color |
| Field of View | H:83.9°, V:63.4°, D:104° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | AHD,TVI,CVI,CVBS |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3.6 mm (0.14") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Protocols | TCP |
| Power Description | |
| Maximum Power Consumption | 5.40 W |
| Input Voltage | 12 V DC |
| Power Source Type | DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Backbox Mount |
| Form Factor | Flateye |
| Diameter | 4.72" (120 mm) |
| Weight (Approximate) | 14.46 oz (410 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Day/Night,Built-in IR LED,Ingress Protection,White Balance,Wide Dynamic Range,Back Light Compensation (BLC),Gain Control,Digital Noise Reduction,2D Noise Reduction,3D Digital Noise Reduction,Mirror |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Country of Origin | Korea |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the resolution and frame rate of the ACE-8020R camera?
The ACE-8020R captures video at a maximum resolution of 2592 x 1944, which is 5 megapixels. It records at 30 frames per second, providing smooth, detailed footage suitable for identifying faces, license plates, and other critical details in security applications.
How far does the night vision reach on this camera?
The built-in infrared LEDs provide night vision up to 65.62 feet (20 meters). This allows the camera to maintain visibility in complete darkness, making it effective for monitoring outdoor areas, parking lots, or dimly lit interiors during nighttime hours.
What video formats does the ACE-8020R support?
This camera supports multiple analog HD formats including AHD, TVI, CVI, and CVBS. This compatibility ensures it can integrate with a wide range of existing surveillance systems and recorders, offering flexibility for upgrades or new installations without requiring complete system overhauls.
Is the ACE-8020R suitable for outdoor use?
Yes, the camera is rated IP67 for dust and water resistance and IK10 for impact protection, making it durable enough for outdoor deployment. It operates in temperatures from -22°F to 131°F (-30°C to 55°C) and handles up to 90% humidity, ensuring reliable performance in various weather conditions.
What power supply does this camera require?
The ACE-8020R operates on 12V DC power with a maximum consumption of 5.40 watts. This low-power design supports continuous operation and can be powered by standard surveillance system power supplies or PoE adapters with appropriate injectors, simplifying installation in both new and retrofit scenarios.
What is the warranty period for the Wisenet ACE-8020R?
Wisenet provides a 5-year limited warranty for the ACE-8020R camera. This warranty covers defects in materials and workmanship, offering long-term assurance for security investments. The camera is manufactured in Korea, reflecting Hanwha Group's commitment to quality and reliability in surveillance hardware.
