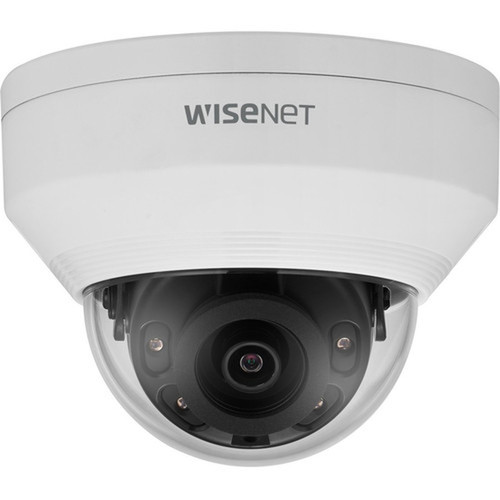

Wisenet ANV-L7012R 4MP IR Vandal Dome Network Camera - White - 2560 x 1440 - 65. 62 ft Night Vision - PoE - IP66 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a CMOS image sensor that balances power efficiency with high-definition video quality. The fixed 3mm lens provides a wide 98.3° horizontal field of view, covering expansive areas with minimal distortion. Video compression includes H.264, H.265, and MJPEG formats, offering flexibility for bandwidth management and storage optimization.
Advanced imaging features such as Wide Dynamic Range (WDR) and Digital Noise Reduction (DNR) enhance clarity in challenging lighting conditions. Back Light Compensation (BLC) adjusts exposure to prevent silhouetting, while automatic white balance ensures accurate color reproduction. The built-in mechanical ICR filter enables seamless day/night operation without manual intervention.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ANV-L7012R combines high-resolution imaging with robust physical protection, delivering a surveillance solution that performs reliably in diverse environments. Its integration of essential features supports both image quality and operational durability.
Enhanced Low-Light Performance
Infrared illumination reaches 65.62 feet, ensuring clear monitoring in darkness without additional lighting. The camera automatically switches between color and monochrome modes based on ambient light levels.
- 65.62 ft infrared range
- Automatic day/night transition
- Built-in ICR filter
Comprehensive Mounting Flexibility
Supports corner, wall, ceiling, pendant, pole, and parapet mounting options. This versatility allows installation in virtually any indoor or sheltered outdoor location.
- Nine mounting types
- 120 mm diameter dome
- White finish for discreet blending
Intelligent Video Analytics
Built-in motion detection and tamper detection trigger alerts for suspicious activity or physical interference. Privacy masking enables selective area blocking to comply with privacy regulations.
- Motion detection
- Tamper detection
- Privacy masking zones
Deployment / Use Cases
This camera is ideal for commercial, retail, and institutional settings where reliable 24/7 surveillance is required. Its vandal-resistant dome and environmental ratings make it suitable for entryways, parking lots, warehouses, and school campuses.
The PoE capability simplifies deployment in new or existing network infrastructures, reducing installation time and costs. Remote management allows centralized monitoring and configuration adjustments from any network-connected device.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Retail Security
Monitor entrances, aisles, and cash handling areas with clear 4MP video. The wide field of view reduces the number of cameras needed per location.
Perimeter Protection
Deploy along building exteriors or fences with confidence in its IP66 weather resistance and IK10 impact protection. Night vision ensures continuous coverage after dark.
Physical Profile
The dome measures 4.72 inches (120 mm) in diameter with a weight of 14.46 ounces (410 grams). Its compact white housing blends discreetly into most ceilings or walls. The included fixed lens requires no adjustment, ensuring consistent focus across its field of view.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 14.46 oz (410 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 14.46 oz (410 g)
- Length
- 3 mm (0.12")
Highlights
- 4-megapixel resolution delivers 2560 x 1440 video at 30 fps
- Infrared night vision covers distances up to 65.62 feet (20 meters)
- Power over Ethernet (PoE) simplifies installation and reduces cabling
- IP66 rating for dust and water resistance; IK10 rating for impact protection
- Vandal-resistant dome housing deters tampering and physical damage
- Wide 98.3° horizontal field of view minimizes blind spots
- Supports H.264, H.265, and MJPEG video compression formats
- Built-in SD card slot for local storage without network dependency
- Operates in temperatures from -22°F to 131°F (-30°C to 55°C)
- Includes motion detection, tamper detection, and privacy masking features
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | ANV-L7012R |
| Brand Name | Wisenet |
| Product Model | ANV-L7012R |
| Product Name | 4MP IR Vandal Dome |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft (20 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H: 98.3° / V: 54.2° / D: 114.6° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG,H.265M,H.265H,H.264M,H.264H |
| Maximum Video Resolution | 2560 x 1440 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3 mm (0.12") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Power Source Type | PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Corner Mount,Backbox Mount,Hanging Mount,In-ceiling,Flush Mount,Wall Mount,Pendant Mount,Parapet Mount,Pole Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant |
| Diameter | 4.72" (120 mm) |
| Weight (Approximate) | 14.46 oz (410 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | SD Card Local Storage,Day/Night,Built-in Mechanical ICR,Wide Dynamic Range,Digital Noise Reduction,Back Light Compensation (BLC),Privacy Masking,Gain Control,Automatic White Balance,Motion Detection,Tamper Detection |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Country of Origin | Vietnam |
User Manual
FAQ
What is the maximum resolution of this network camera?
The Wisenet ANV-L7012R captures video at up to 2560 x 1440 resolution, which is 4 megapixels. This provides detailed imagery suitable for identifying faces, license plates, and other critical details in surveillance footage. The camera maintains this resolution at a smooth 30 frames per second for real-time monitoring.
How far does the night vision reach?
Infrared night vision illuminates up to 65.62 feet (20 meters) in complete darkness. This allows the camera to monitor large areas such as parking lots, warehouses, or building perimeters during nighttime hours without requiring additional external lighting.
Does this camera support Power over Ethernet (PoE)?
Yes, the ANV-L7012R is PoE-powered. This means it receives both data connectivity and electrical power through a single Ethernet cable, simplifying installation by eliminating the need for a separate power outlet near the camera location.
What environmental protections does this dome camera offer?
It carries an IP66 rating for dust and water resistance, making it suitable for outdoor or damp indoor environments. The IK10 impact protection rating ensures the housing can withstand deliberate vandalism or accidental impacts, enhancing durability in high-risk areas.
Can I store video locally on this camera?
Yes, the camera includes an SD card slot for local storage. This allows video recording directly to a memory card without relying solely on network video recorders (NVRs) or cloud services, providing a backup option or standalone recording capability.
What mounting options are available for this dome camera?
It supports nine mounting types: corner, backbox, hanging, in-ceiling, flush, wall, pendant, parapet, and pole mounts. This flexibility enables installation in virtually any location, whether on flat surfaces, corners, ceilings, or outdoor structures.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
