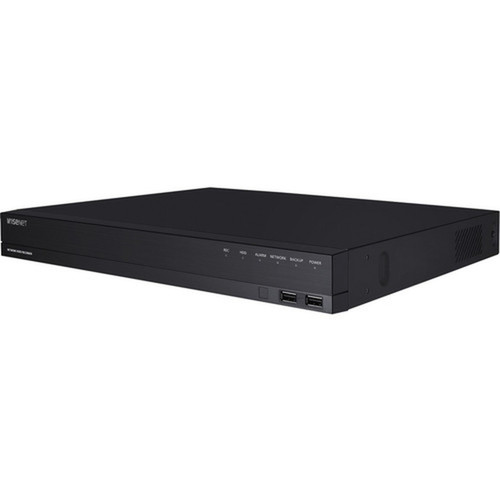

Wisenet ARN-1610S-4TB 16-Channel PoE NVR - 4 TB HDD - 8MP 4K Recording - HDMI/VGA
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ARN-1610S-4TB records video at a maximum resolution of 8MP, equivalent to 4K Ultra HD, ensuring detailed surveillance footage. It supports frame rates up to 120 frames per second across all channels, enabling smooth playback for fast-moving scenes.
Video encoding uses H.265 and H.264 formats to optimize storage efficiency and bandwidth usage. The NVR includes one HDMI and one VGA output for flexible display connectivity, along with USB ports for peripheral expansion. Network connectivity is wired Ethernet, providing reliable data transmission for continuous recording.
Relevant factors for this section include Total Number of Channels, Connectivity Technology, Recording Formats, Hard Drive Capacity. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The pre-installed 4 TB hard drive offers substantial onboard storage for extended recording periods, reducing the need for immediate upgrades. Remote management capabilities allow administrators to monitor and configure the system from anywhere, enhancing operational flexibility.
Scalable Channel Support
With 16 PoE channels, this NVR accommodates growing surveillance needs without requiring additional recorders, making it ideal for expanding business security systems.
- Supports up to 16 cameras
- PoE simplifies cabling
- Reduces hardware footprint
High-Definition Recording
Capture clear evidence with 8MP 4K recording and advanced video compression, ensuring detailed footage while managing storage effectively.
- 8MP resolution for sharp images
- H.265/H.264 compression
- 120 fps for smooth video
Deployment / Use Cases
This recorder suits environments requiring reliable 24/7 surveillance with minimal maintenance. Its compact design fits standard server racks or desktop placements, while PoE support reduces installation complexity for new or upgraded camera networks.
Relevant factors for this section include Total Number of Channels, Connectivity Technology, Recording Formats, Hard Drive Capacity. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Small Business Security
Deploy this NVR in retail stores, offices, or warehouses to monitor entrances, aisles, and storage areas with a centralized 16-camera system.
- Covers multiple areas
- PoE for easy camera setup
- Remote access for owners
Educational or Healthcare Facilities
Use in schools or clinics to enhance safety with high-resolution recording in corridors, parking lots, and common spaces, supporting compliance and incident review.
- Detailed 4K footage
- Reliable wired connectivity
- Scalable for future cameras
Physical Profile
The NVR measures 14.57 inches wide, 12.60 inches deep, and 1.73 inches high, with a weight of 2.88 kg. This slim profile allows for flexible placement in network racks, under desks, or in dedicated security rooms. The sturdy construction ensures durability in continuous operation environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (43.94 mm), 14.57" (370.08 mm), 12.60" (320.04 mm), 2.88 kg. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 14.57" (370.08 mm)
- Depth
- 12.60" (320.04 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 2.88 kg
Highlights
- 16-channel PoE NVR for small-to-mid surveillance systems
- Pre-installed 4 TB hard drive for extended recording storage
- 8MP 4K recording resolution delivers high-definition video clarity
- H.265 and H.264 video compression optimizes storage efficiency
- Maximum frame rate of 120 fps ensures smooth playback
- HDMI and VGA outputs support local monitoring flexibility
- Remote management enables access from any internet-connected location
- Wired Ethernet connectivity provides reliable network performance
- Compact design with dimensions of 14.57" W x 12.60" D x 1.73" H
- Backed by a 3-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | ARN-1610S-4TB |
| Brand Name | Wisenet |
| Product Model | ARN-1610S |
| Product Name | ARN-1610S 16 Channel PoE NVR |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Total Number of Channels | 16 |
| Connectivity Technology | Wired |
| Recording Formats | 4K |
| HD Recording | Yes |
| System Components | Network Video Recorder |
| Storage | |
| Hard Drive Capacity | 4 TB |
| Video | |
| Video Formats | H.265,H.264,Motion JPEG |
| Maximum Resolution | 8MP |
| Maximum Frame Rate | 120 fps |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Number of VGA Out | 1 |
| HDMI | Yes |
| Power Description | |
| Power Consumption | 188.20 W |
| Physical Characteristics | |
| Height | 1.73" (43.94 mm) |
| Width | 14.57" (370.08 mm) |
| Depth | 12.60" (320.04 mm) |
| NVR Weight | 2.88 kg |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many cameras can the ARN-1610S-4TB support?
This NVR supports up to 16 cameras through its PoE channels. It is designed for small-to-mid-range surveillance deployments, allowing you to connect multiple cameras for comprehensive coverage without needing additional recorders.
What is the maximum recording resolution of this NVR?
The ARN-1610S-4TB records at a maximum resolution of 8MP, which is equivalent to 4K Ultra HD. This high resolution ensures detailed video footage, making it easier to identify faces, license plates, and other critical details in surveillance recordings.
Does this NVR include built-in storage?
Yes, it comes with a pre-installed 4 TB hard drive. This provides substantial onboard storage for extended recording periods, reducing the need for immediate upgrades and supporting continuous surveillance operations.
What video formats does the NVR support?
It supports H.265, H.264, and Motion JPEG video formats. H.265 and H.264 are advanced compression standards that optimize storage efficiency and bandwidth usage, allowing for longer recording times without sacrificing image quality.
Can I manage this NVR remotely?
Yes, the NVR features remote management capabilities. You can access and configure the system from any location with an internet connection, enabling real-time monitoring, playback, and adjustments without being on-site.
What are the physical dimensions and weight of the NVR?
The NVR measures 14.57 inches in width, 12.60 inches in depth, and 1.73 inches in height, with a weight of 2.88 kg. Its compact and lightweight design allows for flexible installation in racks, on desktops, or in confined spaces.
