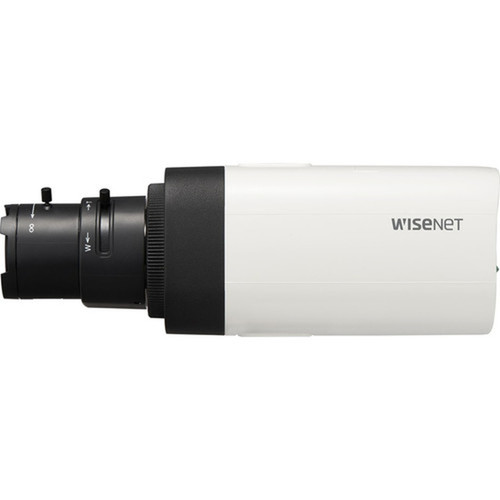

Wisenet HCB-7000A 4MP Indoor Surveillance Camera - 2560 x 1440 Fixed Lens - 30 fps - CMOS - Bracket Mount - Black/Ivory
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera features a 4-megapixel CMOS sensor that supports full-color video capture with an effective resolution of 2560 x 1440. The sensor enables HD recording and operates with video signal formats including PAL and NTSC, as well as analog formats like AHD and CVBS for compatibility with diverse systems.
Exposure control is handled through a shutter speed range from 1/12000 to 1/30 second, allowing adaptation to varying lighting conditions. The fixed lens uses a C/CS-mount type, though no lens is included, offering flexibility for specific optical requirements.
Relevant factors for this section include HD Recording, Image Sensor Type, Color Supported, Effective Camera Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The HCB-7000A stands out with its combination of high-resolution imaging and affordability, making advanced surveillance accessible for small to medium-sized deployments. Its feature set includes day/night operation with a built-in mechanical ICR for low-light performance, along with digital wide dynamic range (D-WDR) to handle challenging lighting scenarios.
Enhanced Image Quality
Digital noise reduction (2DNR), auto gain control, and automatic white balance work together to deliver clear, stable video footage in real-time monitoring situations.
- Back Light Compensation (BLC)
- Highlight Compensation (HLC)
Power Flexibility
Supports both 12V DC and 24V AC input, allowing integration into existing power infrastructures without requiring specialized adapters.
Deployment / Use Cases
Ideal for indoor surveillance, the HCB-7000A is suited for environments such as retail stores, offices, lobbies, and warehouses where cost-effective monitoring is a priority. Its bracket mount enables secure placement on walls or ceilings, providing wide-angle coverage of entry points, aisles, or sensitive areas.
With wired connectivity and no remote management, this camera fits into traditional surveillance setups that prioritize local recording and reliability over network-based control. It serves as a dependable component in security systems focused on high-definition video capture for evidence and oversight.
Relevant factors for this section include HD Recording, Image Sensor Type, Color Supported, Effective Camera Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The camera has a compact box form factor with dimensions of 2.35" (59.60 mm) in height, 2.69" (68.40 mm) in width, and 3.65" (92.70 mm) in depth, making it unobtrusive in installation. Its lightweight design at 6.56 oz (186 g) simplifies mounting and adjustment during setup.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.35" (59.60 mm), 2.69" (68.40 mm), 3.65" (92.70 mm), 6.56 oz (186 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.69" (68.40 mm)
- Depth
- 3.65" (92.70 mm)
- Height
- 2.35" (59.60 mm)
- Weight
- 6.56 oz (186 g)
Highlights
- 4-megapixel resolution for detailed 2560x1440 video
- 30 fps frame rate ensures smooth motion capture
- CMOS sensor offers energy efficiency and cost savings
- Fixed lens with C/CS-mount for consistent focus
- Day/night operation with mechanical ICR
- Digital wide dynamic range (D-WDR) for balanced lighting
- Wired connectivity for reliable data transmission
- Dual-color options in black and ivory
- Bracket mount for secure indoor placement
- 3-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | HCB-7000A |
| Brand Name | Wisenet |
| Product Series | HD+ |
| Product Model | HCB-7000A |
| Product Name | 4MP Wisenet HD+ Box Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Maximum Video Resolution | 2560 x 1440 |
| Maximum Frame Rate | 30 fps |
| Video Signal Format | PAL,NTSC |
| Analog Video Signal Format | AHD,CVBS |
| Lens | |
| Lens Type | Fixed |
| Lens Included | No |
| Lens Mount Type | C/CS-mount |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/30 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | No |
| Power Description | |
| Input Voltage | 12 V DC,24 V AC |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | Black,Ivory |
| Mount Type | Bracket Mount |
| Form Factor | Box |
| Height | 2.35" (59.60 mm) |
| Width | 2.69" (68.40 mm) |
| Depth | 3.65" (92.70 mm) |
| Weight (Approximate) | 6.56 oz (186 g) |
| Miscellaneous | |
| Features | Day/Night,Built-in Mechanical ICR,Digital Wide Dynamic Range (D-WDR),Back Light Compensation (BLC),Highlight Compensation (HLC),2D Digital Noise Reduction (2DNR),Auto Gain Control,Automatic White Balance |
| Indoor/Outdoor | Indoor |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the resolution of the Wisenet HCB-7000A camera?
The camera provides a 4-megapixel resolution with a maximum video output of 2560 x 1440 pixels. This high-definition capability delivers clear, detailed footage suitable for identifying faces, license plates, or other critical details in surveillance scenarios.
Does this camera support night vision or low-light recording?
Yes, it includes day/night functionality with a built-in mechanical ICR (Infrared Cut Removable) filter. This feature allows the camera to switch between color mode in daylight and monochrome mode in low light, enhancing visibility during nighttime or dimly lit conditions.
What type of lens does the HCB-7000A use, and is it included?
It uses a fixed lens with a C/CS-mount type. No lens is included with the camera, so you will need to purchase a compatible lens separately based on your specific field-of-view and focal length requirements for the installation.
How is the camera powered, and what are the voltage requirements?
The camera accepts input voltages of 12 V DC or 24 V AC, providing flexibility for integration with different power supplies. This dual-voltage support makes it compatible with standard surveillance system power sources without needing additional converters.
Can this camera be used outdoors?
No, the HCB-7000A is designed for indoor use only. It is not rated for outdoor conditions, so it should be installed in protected environments like buildings to ensure optimal performance and longevity without exposure to weather elements.
What mounting options are available for this surveillance camera?
It features a bracket mount, allowing secure attachment to walls or ceilings. This mount provides stability and adjustability for positioning the camera to cover desired areas effectively in indoor settings such as corridors, entrances, or retail spaces.
