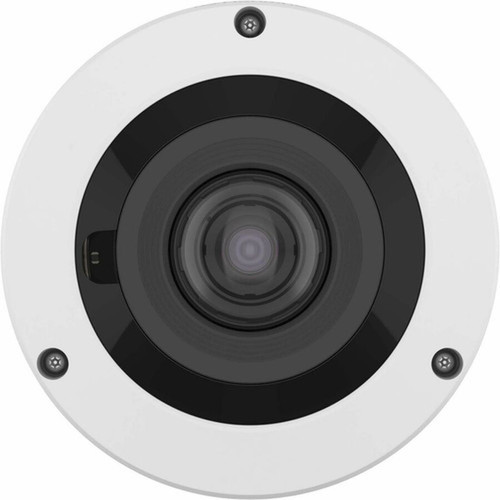

Wisenet HCF-8011RV 5MP Outdoor Fisheye Network Camera - White - 2560 x 1944 - 32. 81 ft IR Night Vision - IP66 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a 1/2.9" CMOS image sensor that provides 5-megapixel effective resolution. The fixed lens has a maximum focal length of 1.2 mm and supports shutter speeds from 1/50000 to 1/30 second, allowing for crisp imaging in varying lighting conditions.
Video output includes analog support for AHD and CVBS formats alongside its primary network streaming capability. The camera incorporates advanced imaging features such as digital wide dynamic range (D-WDR) at 120 dB, 3D digital noise reduction, back light compensation, and automatic white balance to maintain image quality across challenging environments.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Comprehensive Coverage, Rugged Outdoor Design, Advanced Imaging Technology.
Comprehensive Coverage
The fisheye lens design combined with a 180° field of view in both horizontal and vertical planes provides complete area monitoring without mechanical pan/tilt mechanisms.
- Eliminates blind spots
- Reduces camera count needed
- Simplifies installation planning
Rugged Outdoor Design
Built to withstand harsh environmental conditions with IP66 and IK10 ratings, ensuring reliable operation in outdoor installations.
- Weather-resistant construction
- Vandal-resistant housing
- Wide temperature tolerance
Advanced Imaging Technology
Incorporates multiple image enhancement technologies to maintain video quality across varying lighting conditions and challenging environments.
- 120 dB wide dynamic range
- 3D digital noise reduction
- Infrared illumination system
Deployment / Use Cases
The HCF-8011RV is ideal for perimeter security, parking lot surveillance, building entrances, and other outdoor areas requiring comprehensive visual coverage. Its fisheye design makes it particularly suitable for locations where a single camera needs to monitor large, open spaces without mechanical movement.
Common deployment scenarios include retail storefronts, warehouse loading docks, school courtyards, and industrial facility exteriors. The camera's dual voltage support (12V DC/24V AC) allows integration with existing power infrastructures, while its wired connectivity ensures stable network performance for continuous surveillance operations.
Perimeter Security
Monitor property boundaries and access points with wide-angle coverage that captures activity across expansive outdoor areas.
Public Space Surveillance
Deploy in parks, plazas, or transportation hubs where comprehensive visual monitoring of open areas is required for public safety.
Physical Profile
The camera features a compact fisheye form factor with a diameter of 5.74 inches (145.90 mm) and weighs approximately 1.59 pounds (720 grams). Its white aluminum housing provides both aesthetic appeal and durability for outdoor installations. The camera operates reliably across a temperature range of -22°F to 131°F (-30°C to 55°C) and can be stored in temperatures from -58°F to 140°F (-50°C to 60°C).
- Weight
- 1.59 lb (720 g)
- Length
- 1.2 mm (0.05")
Highlights
- 5-megapixel resolution delivers 2560 x 1944 video clarity
- 180° horizontal and vertical field of view for complete area coverage
- Infrared night vision extends to 32.81 feet (10 meters)
- IP66 rating for dust and water jet protection
- IK10 impact resistance for vandal-resistant performance
- 120 dB wide dynamic range maintains image quality in high-contrast lighting
- Dual power input supports 12V DC and 24V AC systems
- Wired connectivity with remote management capability
- CMOS sensor with advanced imaging features including 3D noise reduction
- 5-year limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | HCF-8011RV |
| Brand Name | Wisenet |
| Product Series | HD+ |
| Product Model | HCF-8011RV |
| Product Name | HCF-8011RV 5MP IR Wisenet HD+ Outdoor Fisheye Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 32.81 ft (10 m) |
| Night Vision Type | Infrared |
| Wide Dynamic Range Detail | 120 dB |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.9" |
| Color Supported | Color |
| Field of View | H : 180°, V : 180° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Maximum Video Resolution | 2560 x 1944 |
| Maximum Frame Rate | 20 fps |
| Analog Video Signal Format | AHD,CVBS |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 1.2 mm (0.05") |
| Lens Included | Yes |
| Maximum Aperture | f/2.25 |
| Exposure | |
| Shortest Shutter Speed | 1/50000 Second |
| Longest Shutter Speed | 1/30 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Power Description | |
| Maximum Power Consumption | 6 W |
| Input Voltage | 12 V DC,24 V AC |
| Power Source Type | DC,AC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Aluminum |
| Form Factor | Fisheye |
| Diameter | 5.74" (145.90 mm) |
| Weight (Approximate) | 1.59 lb (720 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Storage Temperature | -58°F (-50°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Miscellaneous | |
| Features | Back Light Compensation (BLC),Day/Night,Digital Wide Dynamic Range (D-WDR),3D Digital Noise Reduction,2D Digital Noise Reduction (2DNR),Gain Control,Automatic White Balance,Built-in IR LED,White Balance,Wide Dynamic Range |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Country of Origin | Korea |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the field of view of this Wisenet fisheye camera?
The HCF-8011RV provides a 180° field of view in both horizontal and vertical directions. This wide-angle coverage allows a single camera to monitor large areas without mechanical pan/tilt mechanisms, making it ideal for comprehensive surveillance of open spaces like parking lots, building entrances, or perimeter boundaries.
How far does the night vision reach on this outdoor camera?
This camera features infrared night vision that extends to 32.81 feet (10 meters). The built-in IR LEDs provide illumination in complete darkness, ensuring reliable monitoring during nighttime hours. The camera automatically switches between day and night modes based on lighting conditions.
What environmental protection ratings does this camera have?
The HCF-8011RV carries both IP66 and IK10 protection ratings. IP66 indicates complete protection against dust ingress and powerful water jets, making it suitable for outdoor installation. IK10 represents high impact resistance, providing vandal-resistant performance in public or high-traffic areas.
What power options are supported by this network camera?
This camera supports dual power input options: 12V DC and 24V AC. This flexibility allows integration with various existing power infrastructures. The maximum power consumption is 6 watts, making it energy-efficient for continuous surveillance operations.
What video resolution and frame rate does this camera provide?
The camera delivers 5-megapixel video at 2560 x 1944 resolution with a maximum frame rate of 20 frames per second. This combination provides detailed imagery with smooth motion capture for security monitoring applications. The camera also supports analog video formats including AHD and CVBS.
What imaging features enhance video quality in challenging conditions?
The camera incorporates multiple advanced imaging technologies including 120 dB digital wide dynamic range (D-WDR) to handle high-contrast lighting, 3D digital noise reduction for cleaner low-light video, back light compensation, automatic white balance, and gain control. These features work together to maintain image quality across varying environmental conditions.
