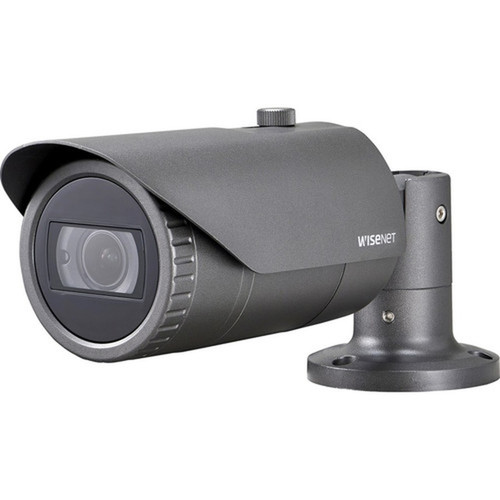

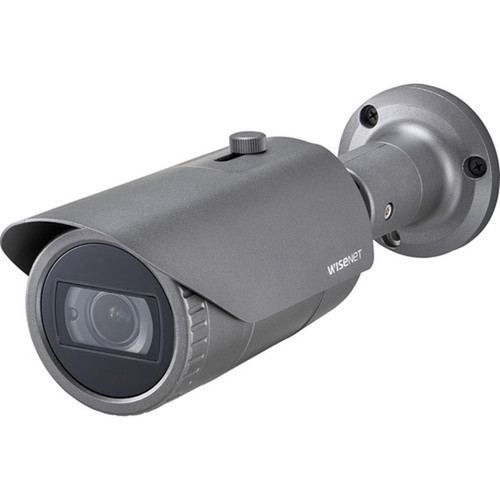

Wisenet HCO-6070R 2MP Analog HD IR Bullet Camera - Full HD 1920 x 1080 - 98. 43 ft Infrared Night Vision - Varifocal Lens - Vandal Resistant IP66 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The HCO-6070R features a 2-megapixel CMOS sensor that captures video at 1920x1080 Full HD resolution. The camera's imaging capabilities include a wide dynamic range, backlight compensation, and defog functionality to maintain clarity in challenging lighting conditions. The varifocal lens offers 3.1x optical zoom with an f/1.6 maximum aperture for optimal light gathering.
This camera operates within a broad temperature range from -22°F to 131°F (-30°C to 55°C) and handles up to 90% humidity, making it suitable for diverse environmental conditions. The built-in IR LEDs provide infrared illumination for night vision up to 98.43 feet, while features like motion detection and privacy masking enhance monitoring efficiency.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Wisenet HCO-6070R combines high-resolution imaging with durable construction for dependable surveillance performance. Its vandal-resistant design with IP66 and IK10 ratings ensures protection against dust, water jets, and physical impacts up to 20 joules of energy.
Enhanced Low-Light Performance
Infrared night vision illuminates up to 98.43 feet with automatic day/night switching and gain control for consistent image quality in darkness.
- Built-in IR LEDs
- Automatic day/night mode
- 98.43 ft illumination distance
Flexible Installation Options
The bullet form factor with 10.23" height and 3.07" diameter accommodates various mounting scenarios, while dual voltage support (12V DC/24V AC) simplifies power integration.
- Bullet housing design
- Dual voltage input
- Board mount lens
Advanced Image Processing
Multiple compensation features including BLC, HLC, and wide dynamic range ensure clear footage in high-contrast lighting conditions, while defog technology maintains visibility in poor weather.
- Back light compensation
- Highlight compensation
- Wide dynamic range
- Defog function
Deployment / Use Cases
The HCO-6070R is ideal for perimeter security, parking lot monitoring, and building entrance surveillance where clear identification and weather resistance are essential. Its vandal-resistant construction makes it suitable for high-traffic areas prone to tampering or accidental impacts.
This camera excels in retail environments, industrial facilities, and educational institutions requiring reliable 24/7 monitoring. The varifocal lens allows installers to adjust the field of view during installation, making it versatile for both wide-area coverage and focused monitoring of specific points of interest.
Commercial Perimeter Security
Monitor building exteriors, parking areas, and loading docks with Full HD clarity and infrared night vision for after-hours security.
- 98.43 ft night vision range
- Vandal-resistant housing
- Wide temperature operation
Industrial Facility Monitoring
Withstand challenging industrial environments while providing clear identification of personnel and vehicles entering restricted areas.
- IP66 weather resistance
- -22°F to 131°F operation
- Motion detection capabilities
Physical Profile
The dark gray bullet housing measures 10.23" (259.80 mm) in height with a 3.07" (78 mm) diameter, presenting a discreet profile for surveillance applications. Weighing approximately 2.02 lb (914 g), the camera maintains stability when mounted while remaining manageable for installation. The durable construction includes IK10 impact resistance and IP66 ingress protection, ensuring reliable operation in outdoor environments exposed to dust, water jets, and potential vandalism.
- Height
- 10.23" (259.80 mm)
- Weight
- 2.02 lb (914 g)
- Length
- 3.2 mm (0.13")
Highlights
- 2-megapixel CMOS sensor delivers Full HD 1920x1080 resolution
- Infrared night vision illuminates up to 98.43 feet (30 meters)
- Varifocal lens with 3.2mm to 10mm focal length adjustment
- Vandal-resistant design with IP66 and IK10 protection ratings
- Supports AHD, TVI, CVI, and CVBS analog video formats
- Operates from -22°F to 131°F (-30°C to 55°C) temperature range
- Dual voltage input (12V DC/24V AC) for flexible power options
- Includes motion detection, privacy masking, and automatic white balance
- 3-year limited warranty for peace of mind
- Dark gray bullet form factor for discreet installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | HCO-6070R |
| Brand Name | Wisenet |
| Product Series | HD+ |
| Product Model | HCO-6070R |
| Product Name | 2MP Analog HD IR Bullet |
| Product Type | Surveillance Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H : 110.2°(Wide) ~ 32°(Tele) / V : 55.4°(Wide) ~ 18°(Tele) / D : 128.4°(Wide) ~ 36.6°(Tele) |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Analog Video Signal Format | AHD,TVI,CVI,CVBS |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.2 mm (0.13") |
| Maximum Focal Length | 10 mm (0.39") |
| Lens Included | Yes |
| Lens Mount Type | Board Mount |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 3.1x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | No |
| Power Description | |
| Input Voltage | 12 V DC,24 V AC |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Dark Gray |
| Form Factor | Bullet |
| Durability | Vandal Resistant |
| Height | 10.23" (259.80 mm) |
| Diameter | 3.07" (78 mm) |
| Weight (Approximate) | 2.02 lb (914 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Day/Night,Back Light Compensation (BLC),Highlight Compensation (HLC),Wide Dynamic Range,Defog,Motion Detection,Privacy Masking,Automatic White Balance,Ingress Protection,Gain Control,Built-in IR LED |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What resolution does the Wisenet HCO-6070R camera provide?
The HCO-6070R delivers Full HD 1920x1080 resolution from its 2-megapixel CMOS sensor. This resolution provides clear, detailed video suitable for identification purposes in surveillance applications, offering a significant improvement over standard definition cameras while maintaining compatibility with analog recording systems.
How far does the night vision reach on this camera?
The built-in infrared LEDs provide night vision illumination up to 98.43 feet (30 meters). This extended range ensures reliable monitoring in complete darkness, with automatic switching between day and night modes based on ambient light conditions for continuous 24/7 surveillance capability.
What environmental protection ratings does this camera have?
The HCO-6070R features IP66 ingress protection against dust and water jets, along with IK10 impact resistance rated for 20 joules of energy. These ratings make the camera suitable for outdoor installation where it may be exposed to weather elements, dust, and potential vandalism or accidental impacts.
What analog video formats does this camera support?
This camera supports AHD, TVI, CVI, and CVBS analog video formats, providing compatibility with a wide range of existing surveillance systems and recorders. This multi-format support ensures easy integration without requiring complete system replacement when upgrading individual cameras.
What is the operating temperature range for this camera?
The HCO-6070R operates reliably in temperatures ranging from -22°F to 131°F (-30°C to 55°C) and can handle up to 90% humidity. This broad operating range makes it suitable for installation in various climates and environments, from cold winter conditions to hot summer temperatures.
What type of lens does this camera use and what are its capabilities?
The camera includes a varifocal lens with a focal length range from 3.2mm to 10mm, providing 3.1x optical zoom capability. This allows installers to adjust the field of view during installation, offering flexibility for both wide-area coverage and more focused monitoring of specific areas without changing lenses.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
