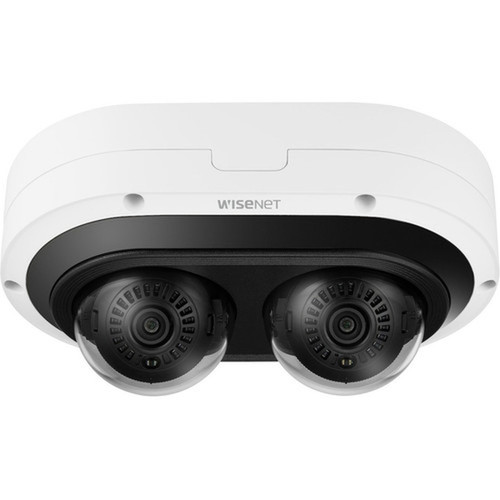

Wisenet PNM-C12083RVD/KEX 6MP Outdoor Dome Network Camera - White - 3328 x 1872 Resolution - 82 ft IR Night Vision - PoE+ - IP66 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a dual-sensor configuration with a 1/2.8" CMOS image sensor, providing 6-megapixel effective resolution. The varifocal lens offers a 3.5 mm to 6.7 mm focal range (1.9x optical zoom) with adjustable aperture from f/1.67 to f/2.64, allowing precise field-of-view customization from wide 112.6° to telephoto 54.74° diagonal coverage.
Video encoding supports H.265, H.264, and MJPEG formats at up to 15 frames per second, balancing quality with bandwidth efficiency. The camera includes a Gigabit Ethernet port for high-speed network connectivity and remote management capabilities, while local storage is supported via memory card for backup or standalone recording.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The PNM-C12083RVD/KEX combines high-resolution imaging with robust outdoor durability, making it ideal for perimeter security, parking lots, and industrial sites where environmental resistance and clear video evidence are critical.
Superior Low-Light Performance
Infrared night vision illuminates up to 82 feet (25 meters), ensuring reliable monitoring around the clock with automatic day/night switching.
- Infrared illumination
- 82 ft effective distance
- Auto day/night mode
Advanced Video Processing
Features like Wide Dynamic Range (WDR), Back Light Compensation (BLC), and Digital Noise Reduction optimize image quality in challenging lighting conditions.
- Wide Dynamic Range
- Back Light Compensation
- Privacy Masking
Simplified Installation & Power
PoE+ support delivers both power and data over a single Ethernet cable, reducing wiring complexity and enabling flexible placement near network switches.
- Single-cable solution
- Reduced infrastructure cost
- Flexible deployment
Deployment / Use Cases
This camera is engineered for outdoor surveillance where high-resolution identification and environmental durability are paramount. Its dome design deters tampering and blends into architectural settings while providing 360° mounting flexibility.
Typical installations include retail storefronts, school campuses, warehouse perimeters, and transportation hubs. The camera's motion detection, PTZ capabilities, and support for SD card storage make it suitable for both centralized NVR systems and standalone applications requiring local recording backup.
Perimeter & Entry Point Security
Monitor gates, fences, and building entrances with clear 6MP detail and infrared coverage for 24/7 visibility.
- Crisp license plate or facial detail
- Weatherproof construction
- Continuous night operation
Large-Area Surveillance
Cover parking lots, yards, or courtyards with the adjustable varifocal lens and wide field of view, reducing the number of cameras needed.
- Adjustable zoom for optimal framing
- Reduced camera count
- Cost-effective coverage
Physical Profile
The camera features a compact white dome housing measuring 8.46" wide, 5.31" deep, and 3.67" high (215 x 135 x 93.2 mm), with a weight of 2.93 lb (1330 g). This form factor supports ceiling, wall, or pendant mounting with standard brackets, and its IK10 impact rating protects against vandalism and accidental strikes.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.67" (93.20 mm), 8.46" (215 mm), 5.31" (135 mm), 2.93 lb (1330 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 8.46" (215 mm)
- Depth
- 5.31" (135 mm)
- Height
- 3.67" (93.20 mm)
- Weight
- 2.93 lb (1330 g)
- Length
- 3.5 mm (0.14")
Highlights
- 6-megapixel resolution for detailed identification
- 82 ft (25 m) infrared night vision with auto day/night switching
- PoE+ powered for single-cable installation
- IP66 weatherproof and IK10 impact-resistant rating
- Varifocal lens with 3.5-6.7 mm focal range
- H.265 and H.264 video compression for bandwidth efficiency
- Wide Dynamic Range and Back Light Compensation
- Supports SD card for local storage
- Operates from -40°F to 131°F (-40°C to 55°C)
- 3-year limited warranty and TAA compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | PNM-C12083RVD/KEX |
| Brand Name | Wisenet |
| Product Series | P |
| Product Model | PNM-C12083RVD |
| Product Name | 6MP X 2 AI, IR outdoor Dome |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 82.02 ft (25 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | H: 95.08(Wide)~47.64(Tele) V: 50.78(Wide)~26.7(Tele) D: 112.6(Wide)~54.74(Tele) |
| Effective Camera Resolution | 6 Megapixel |
| Number of Sensors | 2 |
| Video | |
| Video Formats | H.265,H.264,MJPEG,H.265B,H.265H,H.265M,H.264B,H.264H,H.264M |
| Maximum Video Resolution | 3328 x 1872 |
| Maximum Frame Rate | 15 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.5 mm (0.14") |
| Maximum Focal Length | 6.7 mm (0.26") |
| Lens Included | Yes |
| Minimum Aperture | f/2.64 |
| Maximum Aperture | f/1.67 |
| Optical Zoom | 1.9x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Power Source Type | PoE+ |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Form Factor | Dome |
| Height | 3.67" (93.20 mm) |
| Width | 8.46" (215 mm) |
| Depth | 5.31" (135 mm) |
| Weight (Approximate) | 2.93 lb (1330 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | SD Card Local Storage,Day/Night,Motion Detection,PTZ,Back Light Compensation (BLC),Wide Dynamic Range,Privacy Masking,Gain Control,White Balance,Digital Noise Reduction |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Country of Origin | Korea |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum video resolution of this Wisenet camera?
The PNM-C12083RVD/KEX captures video at up to 3328 x 1872 resolution, which is a 6-megapixel image. This high resolution provides clear detail for identifying faces, license plates, or other critical elements in surveillance footage, making it suitable for applications where fine details are important.
How far does the night vision reach on this outdoor camera?
The infrared night vision effectively illuminates up to 82.02 feet (25 meters). This allows the camera to monitor areas in complete darkness, with automatic switching between day and night modes based on lighting conditions to ensure continuous surveillance coverage.
What type of power does this network camera require?
This camera is powered via Power over Ethernet Plus (PoE+), which delivers both electrical power and data over a single Ethernet cable. This simplifies installation by eliminating the need for a separate power outlet near the camera, reducing wiring costs and enabling flexible placement.
Is this camera suitable for outdoor use in harsh weather?
Yes, it is built for outdoor environments with an IP66 ingress protection rating, meaning it is dust-tight and protected against powerful water jets. Additionally, it has an IK10 impact resistance rating, which safeguards against vandalism and physical impacts, and operates reliably in temperatures from -40°F to 131°F.
Does this camera include a lens, and is it adjustable?
Yes, a varifocal lens is included with a focal length range from 3.5 mm to 6.7 mm, providing 1.9x optical zoom. This allows you to adjust the field of view during installation to frame the scene precisely, from a wide 112.6° diagonal angle to a narrower 54.74° telephoto view.
What video compression formats are supported?
The camera supports H.265, H.264, and MJPEG video formats, including variants like H.265B, H.265H, H.265M, H.264B, H.264H, and H.264M. H.265 offers efficient bandwidth usage while maintaining high quality, making it ideal for network surveillance where storage and transmission costs are considerations.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
