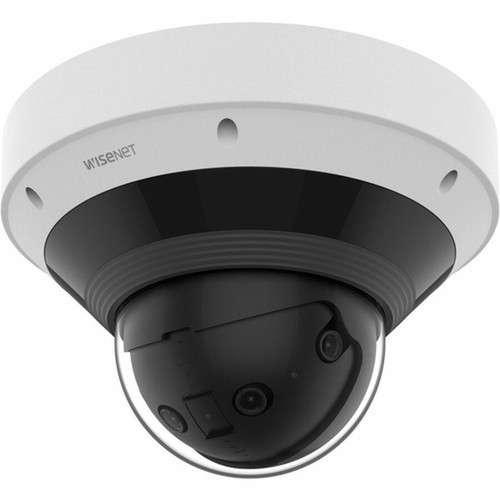

Wisenet PNM-C9022RV/KEX 8MP AI IR Panoramic Outdoor Dome Camera - 5120 x 1568 Resolution - 65. 62 ft IR Night Vision - IP66 IK10 - PoE+
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a 1/2.8" CMOS sensor paired with a fixed 2.8 mm lens with an f/2.0 maximum aperture, optimized for wide-area surveillance. Video compression includes efficient H.265 and H.264 formats alongside MJPEG, supporting bandwidth management without compromising detail. The camera operates at a maximum frame rate of 20 fps, ensuring smooth real-time monitoring and playback.
Connectivity is handled through a wired Gigabit Ethernet port with support for remote management, enabling integration into existing network infrastructure. Storage expansion is available via memory card, and a USB port provides additional configuration flexibility. The camera's exposure control ranges from 1/12000 second to 2 seconds, adapting to varying lighting conditions for consistent image quality.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The camera's panoramic 209° field of view minimizes blind spots and reduces the number of cameras needed for comprehensive coverage. Its infrared night vision extends to 65.62 ft, ensuring reliable low-light performance. Support for PoE+ simplifies installation by delivering power and data over a single Ethernet cable, reducing wiring complexity and costs.
Advanced AI Analytics
Incorporates video content analytics for human detection, vehicle detection, motion detection, tamper detection, and audio detection, enabling intelligent event filtering and reduced false alerts.
- Human Detection
- Vehicle Detection
- Motion Detection
- Tamper Detection
- Audio Detection
Robust Outdoor Design
Built for outdoor use with IP66 waterproof/dustproof rating and IK10 impact resistance, capable of operating in temperatures from -40°F to 131°F and up to 95% humidity.
- IP66 Rated
- IK10 Impact Resistance
- -40°F to 131°F Operating Range
Deployment / Use Cases
This camera excels in environments requiring durable, high-resolution surveillance with intelligent features. Its outdoor-rated dome form factor offers discreet monitoring while withstanding environmental stressors like rain, dust, and vandalism.
Deployments benefit from the camera's compatibility with standard network video recorders and support for TAA compliance, making it suitable for government and institutional projects. The combination of H.265 compression and Gigabit Ethernet ensures efficient bandwidth usage even at high resolutions, supporting scalable multi-camera installations.
Perimeter Security
Ideal for monitoring large outdoor perimeters of commercial properties, industrial sites, or campuses, where its wide field of view and long-range night vision provide extensive coverage in challenging lighting conditions.
Public Space Surveillance
Suited for parks, parking lots, or transportation hubs, leveraging AI analytics to distinguish between people and vehicles, enhancing public safety with accurate event detection.
Physical Profile
The camera features a white dome enclosure with a 9.96" (253 mm) diameter, designed for ceiling or wall mounting in outdoor settings. Its compact form factor integrates seamlessly into various architectural environments while providing 360° positioning flexibility. The sturdy construction supports reliable performance in wide temperature and humidity ranges, backed by a 3-year limited warranty.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.39 lb (2900 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 6.39 lb (2900 g)
- Length
- 2.8 mm (0.11")
Highlights
- 8MP resolution with 5120 x 1568 video for detailed surveillance
- 65.62 ft (20 m) infrared night vision for 24/7 monitoring
- 209° horizontal field of view reduces blind spots
- IP66 and IK10 ratings for outdoor durability
- PoE+ support simplifies installation and power delivery
- AI analytics with human and vehicle detection
- H.265/H.264 video compression for efficient bandwidth use
- Operates in temperatures from -40°F to 131°F
- Gigabit Ethernet and remote management capabilities
- TAA compliant for government and institutional use
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | PNM-C9022RV/KEX |
| Brand Name | Wisenet |
| Product Series | P |
| Product Model | PNM-C9022RV |
| Product Name | 8MP AI IR Panoramic Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft (20 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | H: 209°, V: 60° |
| Effective Camera Resolution | 8 Megapixel |
| Number of Sensors | 4 |
| Video | |
| Video Formats | H.265,H.264,MJPEG,H.264M,H.264B,H.264H,H.265B,H.265M,H.265H |
| Maximum Video Resolution | 5120 x 1568 |
| Maximum Frame Rate | 20 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/2.0 |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE+ |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Form Factor | Dome |
| Diameter | 9.96" (253 mm) |
| Weight (Approximate) | 6.39 lb (2900 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Day/Night,Video Content Analytics,Human Detection,Vehicle Detection,Motion Detection,Tamper Detection,Audio Detection,Wide Dynamic Range,Back Light Compensation (BLC),Noise Reduction,Gain Control |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Country of Origin | Korea |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the resolution and field of view of this camera?
The camera offers 8MP effective resolution with a maximum video resolution of 5120 x 1568. It features a wide 209° horizontal and 60° vertical field of view, providing extensive area coverage ideal for panoramic surveillance applications.
How far does the night vision reach and what type is it?
The infrared night vision extends up to 65.62 ft (20 m), using advanced IR technology to deliver clear monochrome images in complete darkness, ensuring reliable low-light performance for outdoor security.
What power options are available for this camera?
This camera supports both 12V DC power and PoE+ (Power over Ethernet Plus), allowing flexible installation. PoE+ simplifies setup by delivering power and data over a single Ethernet cable, reducing wiring costs.
Is this camera suitable for outdoor use?
Yes, it is designed for outdoor deployment with an IP66 rating for dust and water resistance and an IK10 impact protection rating. It operates reliably in temperatures from -40°F to 131°F and up to 95% humidity.
What video formats and compression does the camera support?
It supports H.265, H.264, and MJPEG video formats, including variants like H.264M, H.265B, and others. H.265 compression provides efficient bandwidth usage while maintaining high video quality for network transmission.
Does this camera include AI analytics features?
Yes, it includes advanced video content analytics such as human detection, vehicle detection, motion detection, tamper detection, and audio detection. These AI features help reduce false alarms and focus on security-relevant events.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
