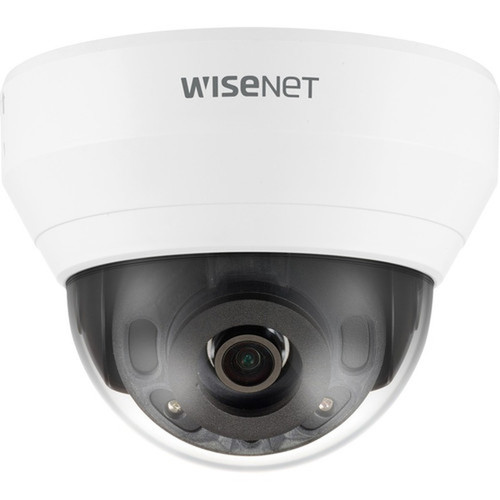

Wisenet QND-6022R 2MP Indoor Network Dome Camera - Full HD 1080p - 20m IR Night Vision - White - Wall/Ceiling Mount - PoE/DC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera is engineered with a 1/2.8" CMOS image sensor and a fixed 4mm lens with an f/1.6 aperture, providing a wide 104.5° diagonal field of view. It records video in H.264, MJPEG, and efficient H.265 formats, optimizing bandwidth and storage use without compromising image quality.
The camera includes advanced imaging features like Wide Dynamic Range (WDR) and Back Light Compensation (BLC) to handle challenging lighting scenarios. It supports NTSC and PAL video signal formats for global compatibility.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The QND-6022R combines essential surveillance features with practical deployment flexibility, making it a strong choice for indoor security installations.
Enhanced Low-Light Performance
Infrared illumination enables clear monochrome video in complete darkness up to 20 meters, supported by day/night functionality and features like dynamic noise reduction.
- 20m IR Night Vision
- Day/Night Mode
- Dynamic Noise Reduction
Intelligent Video Analytics
Built-in motion detection, alarm triggering, and privacy masking allow for automated monitoring and event-based recording, reducing review time and storage needs.
- Motion Detection
- Alarm Triggering
- Privacy Masking
Flexible Installation & Power
Supports both 12V DC and Power over Ethernet (PoE) for simplified cabling, and can be mounted on walls or ceilings with its compact dome design.
- PoE & DC Power
- Wall/Ceiling Mount
- Compact Dome Form
Deployment / Use Cases
This camera is ideal for indoor environments requiring consistent, high-quality video surveillance. Its feature set supports a range of security and monitoring applications.
Common deployments include retail stores for loss prevention, office lobbies for access monitoring, school corridors for safety oversight, and warehouse interiors for asset protection. The camera's motion detection and alarm capabilities make it suitable for automated security systems that trigger recordings or notifications based on activity.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Retail & Commercial Security
Monitor entrances, sales floors, and stock rooms with Full HD clarity. Motion detection helps focus on customer and employee activity.
Institutional Monitoring
Deploy in schools, libraries, or healthcare facilities to enhance safety. The discreet white dome blends into ceilings for unobtrusive surveillance.
Physical Profile
The camera features a compact white dome housing measuring 3.39 inches (86 mm) in height and 4.33 inches (110 mm) in diameter. This low-profile design is suitable for discreet installation on ceilings or walls. The unit operates reliably in indoor environments with temperatures from 14°F to 131°F (-10°C to 55°C) and up to 90% humidity.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.39" (86 mm), 8.99 oz (255 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 3.39" (86 mm)
- Weight
- 8.99 oz (255 g)
- Length
- 4 mm (0.16")
Highlights
- 2-megapixel CMOS sensor delivers Full HD 1080p video at 30 fps
- Infrared night vision effective up to 20 meters (65.62 feet)
- Supports H.265, H.264, and MJPEG video compression formats
- Power over Ethernet (PoE) and 12V DC power options
- Wide 104.5° diagonal field of view with fixed 4mm lens
- Built-in motion detection, alarm triggering, and privacy masking
- Wall and ceiling mountable white dome form factor
- Operates in temperatures from -10°C to 55°C (14°F to 131°F)
- Local storage via microSD card slot
- Remote management capability for networked surveillance systems
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | QND-6022R |
| Brand Name | Wisenet |
| Product Series | Q |
| Product Model | QND-6022R |
| Product Name | 2MP Network IR Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft (20 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color,Monochrome |
| Field of View | H : 87.6 V : 46.4° D : 104.5° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.264,MJPEG,H.265 |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Video Signal Format | NTSC,PAL |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm (0.16") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Wall Mount,Ceiling Mount |
| Form Factor | Dome |
| Height | 3.39" (86 mm) |
| Diameter | 4.33" (110 mm) |
| Weight (Approximate) | 8.99 oz (255 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | SD Card Local Storage,Day/Night,Alarm Triggering,Gain Control,Privacy Masking,Motion Detection,Dynamic Noise Reduction,Back Light Compensation (BLC),Wide Dynamic Range |
| Indoor/Outdoor | Indoor |
User Manual
FAQ
What is the video resolution of the Wisenet QND-6022R camera?
The camera captures 2-megapixel video at a maximum resolution of 1920 x 1080 (Full HD 1080p). It records at 30 frames per second, providing smooth, detailed footage suitable for identifying individuals and objects in surveillance scenarios.
How far does the night vision work on this camera?
The integrated infrared LEDs provide clear monochrome night vision up to 65.62 feet (20 meters). This allows the camera to maintain effective surveillance in complete darkness, typical for indoor environments like warehouses, hallways, or retail spaces after hours.
What power options does this network camera support?
The QND-6022R offers dual power options: standard 12V DC power or Power over Ethernet (PoE). PoE simplifies installation by allowing both data and power to be delivered over a single Ethernet cable, reducing wiring complexity and costs.
Can this camera be used outdoors?
No, this is an indoor-only camera. It is designed for environments protected from direct weather exposure. Its operating temperature range is 14°F to 131°F (-10°C to 55°C) with up to 90% humidity, suitable for climate-controlled indoor spaces.
What video compression formats does the camera support?
It supports H.264, MJPEG, and the efficient H.265 (HEVC) compression standard. H.265 significantly reduces bandwidth and storage requirements compared to older formats while maintaining high video quality, making it ideal for networked surveillance systems.
What mounting options are available for this dome camera?
The camera is designed for flexible installation on walls or ceilings. Its compact white dome housing measures 3.39" in height and 4.33" in diameter, offering a low-profile, discreet appearance that blends into most indoor architectural environments.
What processor does this product use?
Wisenet QND-6022R 2 Megapixel Indoor Full HD Network Camera - Color, Monochrome - Dome - White - 65.62 ft (20 m) Infrared Night Vision (QND-6022R) is positioned around the listed processor configuration, giving buyers a clearer view of expected performance for business workloads and everyday deployment needs.
