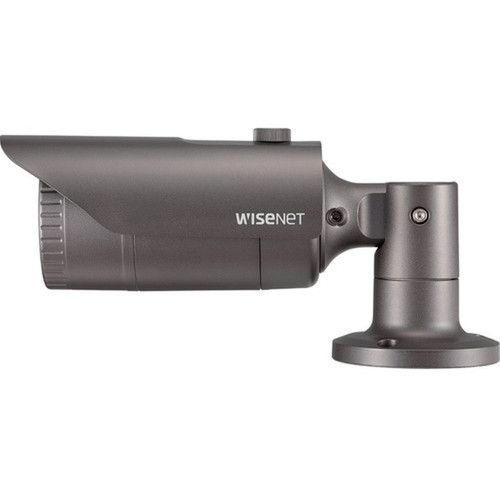

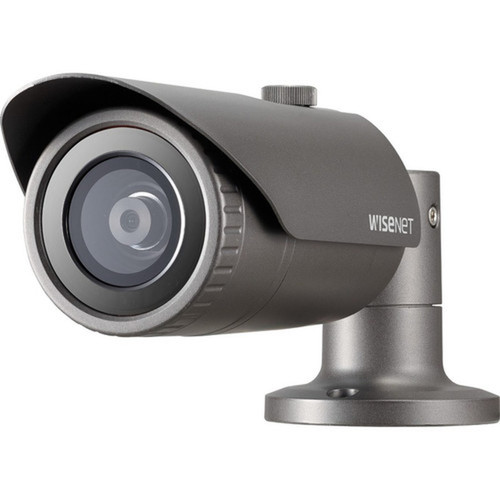

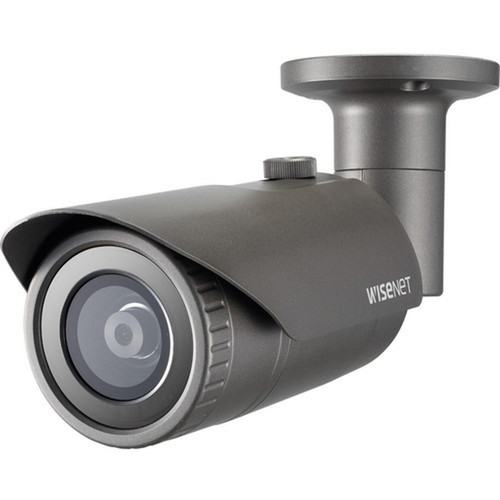

Wisenet QNO-7032R 4MP Outdoor Network Bullet Camera - Dark Gray - 30m IR Night Vision - 2560 x 1440 H. 265 - IP66 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures video at 2560 x 1440 resolution (4MP) with a maximum frame rate of 30 frames per second, ensuring smooth, real-time surveillance footage. The CMOS image sensor provides efficient power consumption while delivering high-definition video quality across various lighting conditions.
Video compression includes H.265 and H.264 codecs with multiple profile options (H.265M, H.264M, H.265H, H.264H) plus MJPEG support, offering flexibility for bandwidth management and storage optimization. The fixed 6mm lens provides a field of view of H:49.0°, V:27.6°, D:55.6° for comprehensive coverage of monitored areas.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The QNO-7032R stands out with its combination of imaging performance, environmental durability, and intelligent features that enhance surveillance effectiveness. Built-in infrared LEDs provide reliable night vision up to 30 meters, while advanced image processing ensures clear footage in challenging lighting scenarios.
Advanced Image Processing
Features including Wide Dynamic Range (WDR), Back Light Compensation (BLC), Digital Noise Reduction, and Automatic White Balance work together to optimize image quality across varying lighting conditions and reduce visual artifacts.
- Wide Dynamic Range for high-contrast scenes
- Back Light Compensation for bright backgrounds
- Digital Noise Reduction for cleaner images
- Automatic White Balance for accurate colors
Security & Monitoring Features
The camera includes motion detection, tamper detection, and alarm triggering capabilities that enhance security monitoring. Privacy masking allows specific areas to be obscured in the video feed for compliance with privacy regulations.
- Motion detection for activity alerts
- Tamper detection for physical security
- Alarm triggering for event response
- Privacy masking for sensitive areas
Deployment / Use Cases
The Wisenet QNO-7032R is ideally suited for outdoor surveillance applications where environmental resilience and consistent video quality are essential. Its IP66 rating ensures protection against dust and water jets, while the IK10 impact resistance provides defense against physical vandalism attempts.
Common deployment scenarios include perimeter security for commercial properties, monitoring of parking facilities and loading docks, surveillance of building entrances and exits, and oversight of outdoor storage areas. The camera's -40°F to 131°F operating temperature range makes it reliable in extreme weather conditions from harsh winters to hot summers.
Commercial Perimeter Security
Monitor building exteriors, fences, and property boundaries with clear 4MP video and 30-meter night vision coverage. The conduit and gang box mounting options facilitate secure installation on walls, poles, or other structural surfaces.
Parking & Loading Areas
Provide surveillance for vehicle traffic, loading operations, and pedestrian movement with the camera's wide dynamic range handling challenging lighting from headlights and shadows. The built-in microphone enables audio monitoring alongside video capture.
Physical Profile
The bullet-style camera features a dark gray finish that blends with most architectural environments while providing a professional appearance. With a diameter of 2.76 inches (70 mm) and weight of approximately 1.54 pounds (700 g), the compact design minimizes visual intrusion while maintaining structural integrity.
Mounting options include conduit mount and gang box mount configurations, offering installation flexibility for different surface types and wiring requirements. The form factor is optimized for directional monitoring with adjustable positioning during installation to achieve the desired viewing angle.
- Weight
- 1.54 lb (700 g)
- Length
- 6 mm (0.24")
Highlights
- 4-megapixel resolution (2560 x 1440) for detailed surveillance footage
- 30-meter infrared night vision with built-in IR LEDs
- H.265 and H.264 video compression for efficient bandwidth usage
- IP66 weatherproof rating and IK10 impact resistance
- Wide operating temperature range (-40°F to 131°F / -40°C to 55°C)
- Motion detection, tamper detection, and alarm triggering capabilities
- Built-in microphone for audio monitoring alongside video
- SD card support for local storage without network dependency
- Wired network connectivity via RJ-45 interface
- 12V DC power input for reliable operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | QNO-7032R |
| Brand Name | Wisenet |
| Product Series | Q |
| Product Model | QNO-7032R |
| Product Name | 4MP Network IR Bullet Camera with 6.0mm Lens |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H : 49.0, V : 27.6, D : 55.6 |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.265,H.264,H.265M,H.264M,H.265H,H.264H,MJPEG |
| Maximum Video Resolution | 2560 x 1440 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 6 mm (0.24") |
| Lens Included | Yes |
| Maximum Aperture | f/2 |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Dark Gray |
| Mount Type | Conduit Mount,Gang Box Mount |
| Form Factor | Bullet |
| Diameter | 2.76" (70 mm) |
| Weight (Approximate) | 1.54 lb (700 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Motion Detection,Tamper Detection,SD Card Local Storage,Built-in IR LED,Day/Night,Back Light Compensation (BLC),Wide Dynamic Range,Digital Noise Reduction,Privacy Masking,Auto Gain Control,Automatic White Balance,Alarm Triggering,Built-in Microphone |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum video resolution of the Wisenet QNO-7032R camera?
The Wisenet QNO-7032R captures video at 4-megapixel resolution, specifically 2560 x 1440 pixels. This resolution provides detailed imagery suitable for identifying faces, license plates, and other important details in surveillance footage. The camera maintains this resolution at up to 30 frames per second for smooth, real-time monitoring.
How far does the night vision reach on this camera?
The camera's infrared night vision effectively illuminates subjects up to 98.43 feet (30 meters) in complete darkness. Built-in IR LEDs provide consistent illumination without visible red glow, and the system automatically switches between day and night modes based on ambient light conditions for uninterrupted surveillance coverage.
Is this camera suitable for outdoor installation?
Yes, the QNO-7032R is specifically designed for outdoor deployment with an IP66 ingress protection rating that makes it dust-tight and protected against powerful water jets. Additionally, it features IK10 impact resistance for protection against vandalism and physical damage. The operating temperature range of -40°F to 131°F (-40°C to 55°C) ensures reliable performance in extreme weather conditions.
What video compression formats does this camera support?
The camera supports multiple video compression formats including H.265, H.264, H.265M, H.264M, H.265H, H.264H, and MJPEG. H.265 compression provides approximately 50% better bandwidth efficiency compared to H.264, allowing for higher quality video at lower bitrates. The multiple profile options offer flexibility for different network conditions and storage requirements.
What mounting options are available for this camera?
The QNO-7032R supports both conduit mount and gang box mount installations. These mounting methods provide secure attachment to walls, poles, or other structural surfaces while protecting wiring connections. The bullet form factor allows for directional adjustment during installation to achieve optimal viewing angles for the surveillance area.
Does this camera include local storage capability?
Yes, the camera supports local storage via memory card (SD card) in addition to network video recording options. This allows for video footage to be stored directly on the camera itself, providing redundancy in case of network interruptions or as a supplementary storage method alongside network video recorder (NVR) systems.
