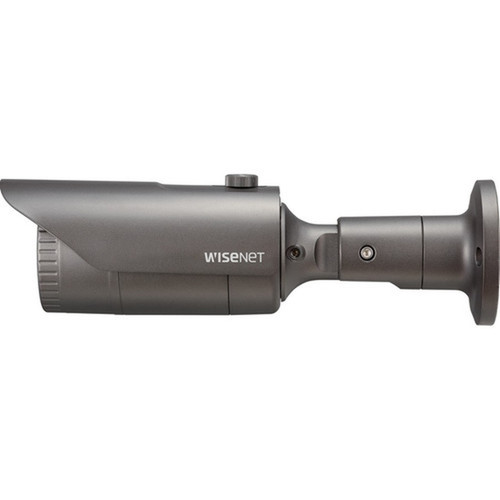

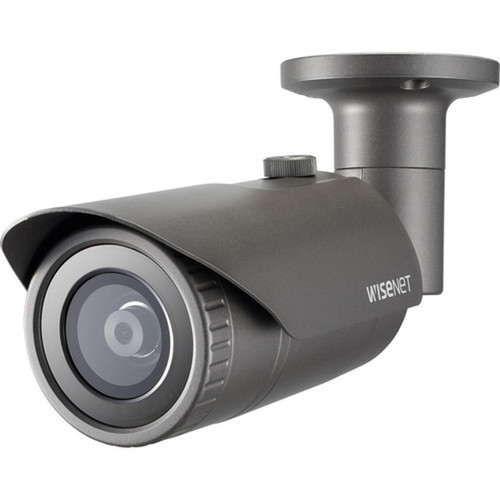

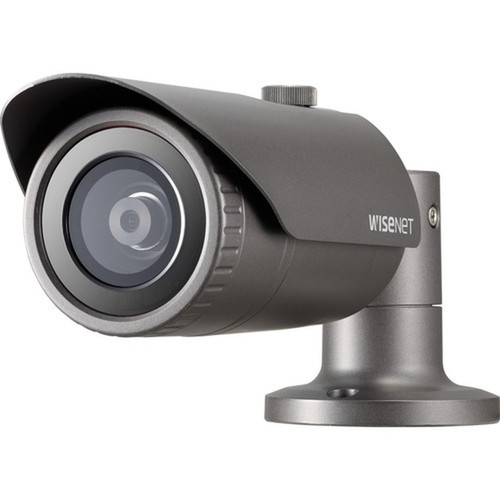

Wisenet QNO-8010R 5MP Outdoor Bullet Network Camera - Dark Gray - 65. 62 ft IR Night Vision - 2592 x 1944 - H. 265 - IP66 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera utilizes a CMOS image sensor that supports both color and monochrome imaging, with a maximum frame rate of 30 fps for smooth real-time surveillance. Video compression includes efficient H.265 encoding alongside H.264 and MJPEG formats, optimizing bandwidth and storage usage.
The camera's imaging capabilities are enhanced by features like wide dynamic range (WDR), digital noise reduction, automatic white balance, and backlight compensation. These technologies work together to maintain image clarity in challenging lighting conditions, from bright sunlight to low-light environments.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The QNO-8010R combines high-resolution imaging with rugged outdoor construction, making it ideal for perimeter security, parking lots, and building exteriors. Its comprehensive feature set addresses common surveillance challenges while maintaining operational simplicity.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Advanced Security Features, Environmental Durability.
Advanced Security Features
Built-in motion detection, privacy masking, and alarm triggering capabilities enable proactive security monitoring without requiring additional hardware.
- Motion detection zones
- Privacy area masking
- Alarm input/output support
Environmental Durability
With IP66 waterproofing and IK10 impact resistance, this camera operates reliably in temperatures from -22°F to 131°F and up to 90% humidity.
- Weatherproof construction
- Wide temperature range
- Corrosion-resistant materials
Deployment / Use Cases
This bullet camera is specifically designed for outdoor surveillance applications where weather resistance and reliable night vision are critical. Its pole and box mounting options provide flexible installation on various surfaces and structures.
Typical deployments include retail storefronts, warehouse perimeters, school campuses, and industrial facilities. The camera's local SD card storage capability offers backup recording options when network connectivity is intermittent or when supplementing centralized NVR systems.
Perimeter Security
Monitor building exteriors, fences, and gates with the camera's wide field of view and long-range infrared illumination.
- Property boundary monitoring
- Gate access control
- Parking lot surveillance
Infrastructure Protection
Secure utility areas, loading docks, and equipment yards with the camera's rugged construction and temperature tolerance.
- Industrial facility security
- Utility site monitoring
- Transportation hub surveillance
Physical Profile
The bullet-style housing measures 9.69 inches in height and length with a 2.76-inch diameter, presenting a discreet yet durable profile. Weighing approximately 1.5 pounds, the camera maintains stability in various mounting configurations while remaining manageable for installation.
- Width
- 2.76" (70 mm)
- Height
- 9.69" (246 mm)
- Weight
- 1.50 lb (680 g)
- Length
- 2.8 mm (0.11")
Highlights
- 5-megapixel resolution delivers 2592x1944 video for detailed surveillance
- 65.62-foot infrared night vision ensures 24/7 monitoring capability
- IP66 waterproof and IK10 impact-resistant construction for outdoor durability
- H.265 video compression reduces bandwidth and storage requirements
- Wide 136° diagonal field of view covers expansive areas
- Local SD card storage provides backup recording options
- Motion detection and privacy masking enhance security functionality
- Operates in temperatures from -22°F to 131°F for extreme environments
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | QNO-8010R |
| Brand Name | Wisenet |
| Product Series | Q |
| Product Model | QNO-8010R |
| Product Name | 5 MP Network IR Bullet Camera with 2.8mm Lens |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft (20 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color,Monochrome |
| Field of View | H : 104.7°/ V : 76.5°/ D : 136.0° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.264,MJPEG,H.265 |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/2.0 |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Dark Gray |
| Mount Type | Pole Mount,Box Mount |
| Form Factor | Bullet |
| Height | 9.69" (246 mm) |
| Width | 2.76" (70 mm) |
| Length | 9.69" (246 mm) |
| Diameter | 2.76" (70 mm) |
| Weight (Approximate) | 1.50 lb (680 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | SD Card Local Storage,Privacy Masking,Motion Detection,Wide Dynamic Range,Alarm Triggering,Gain Control,Automatic White Balance,Digital Noise Reduction,Back Light Compensation (BLC) |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the effective resolution of this network camera?
The Wisenet QNO-8010R captures video at 5 megapixels, which translates to 2592 x 1944 resolution. This high-definition imaging provides clear, detailed footage suitable for identifying faces, license plates, and other critical details in surveillance applications.
How far does the night vision reach in complete darkness?
The camera's infrared illumination extends up to 65.62 feet (20 meters), providing reliable night vision coverage for medium to large outdoor areas. This range ensures visibility in low-light conditions without requiring additional lighting infrastructure.
What weatherproof ratings does this outdoor camera have?
This camera carries both IP66 and IK10 ratings. IP66 indicates complete protection against dust ingress and powerful water jets, while IK10 signifies resistance to impacts of up to 20 joules, equivalent to a 5 kg mass dropped from 400 mm.
What video compression formats are supported?
The camera supports H.265, H.264, and MJPEG video formats. H.265 offers approximately 50% better compression efficiency than H.264, reducing bandwidth and storage requirements while maintaining video quality—particularly valuable for high-resolution 5MP streaming.
Can this camera operate in extreme temperatures?
Yes, the QNO-8010R operates reliably in temperatures ranging from -22°F to 131°F (-30°C to 55°C). This wide operating range ensures consistent performance in both freezing winter conditions and hot summer environments without requiring protective enclosures.
What mounting options are available for installation?
The camera supports both pole mounting and box mounting configurations, providing flexibility for various installation scenarios. These mounting options allow secure attachment to walls, ceilings, posts, and other structural elements commonly found in outdoor surveillance deployments.
What processor does this product use?
Wisenet QNO-8010R 5 Megapixel Outdoor Network Camera - Color, Monochrome - Bullet - Dark Gray - 65.62 ft (20 m) Infrared Night Vision (QNO-8010R) is positioned around the listed processor configuration, giving buyers a clearer view of expected performance for business workloads and everyday deployment needs.
