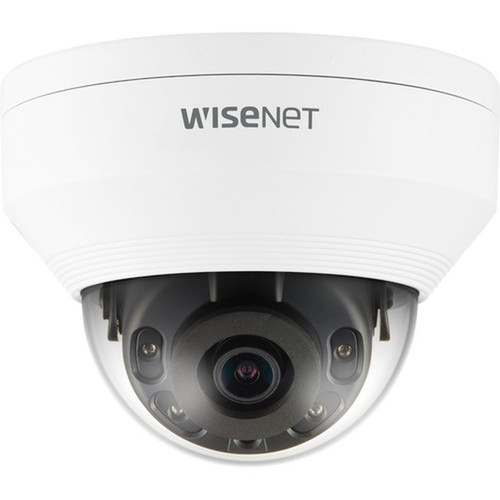

Wisenet QNV-6012R1 2MP IR Vandal Dome Camera - Full HD 1080p - 65. 62 ft Night Vision - Indoor/Outdoor - White - IP66 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the QNV-6012R1 utilizes a CMOS image sensor paired with a fixed 2.8 mm lens (f/2.0 aperture) to capture high-quality color video. The camera supports modern compression standards including H.264 and H.265 for efficient bandwidth and storage use, alongside MJPEG for compatibility. Advanced imaging features like Wide Dynamic Range (WDR) and Back Light Compensation (BLC) ensure usable video in challenging high-contrast lighting conditions.
The camera's exposure control is highly adaptable, with a shutter speed range from 1/12000 second to 1/5 second, allowing it to handle everything from bright daylight to low-light scenes without motion blur or overexposure.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This dome camera is designed for resilience and continuous operation in varied environments, making it a dependable choice for perimeter security, retail loss prevention, and facility management.
Vandal-Resistant Construction
The dome housing is built to withstand physical impact, rated IK10 for impact protection. Combined with an IP66 ingress protection rating, it is fully dust-tight and protected against powerful water jets, ensuring reliability in outdoor installations or harsh indoor settings.
- IK10 Impact Rating
- IP66 Weatherproof
Intelligent Surveillance Features
Beyond basic recording, the camera includes motion detection, privacy masking, and alarm triggering capabilities. These features enable proactive security by allowing the system to respond to events, send alerts, and record only when necessary, optimizing storage and management effort.
- Motion Detection
- Privacy Masking
- Alarm Triggering
Deployment / Use Cases
The Wisenet QNV-6012R1 is versatile enough for a wide range of commercial and institutional security deployments. Its indoor/outdoor rating and robust build make it suitable for monitoring building entrances, parking lots, warehouses, and retail floors where both environmental factors and potential tampering are concerns.
For system integrators, the camera offers flexible mounting options including wall, ceiling, pole, parapet, corner, and box mounts. This adaptability simplifies installation in both new constructions and retrofits, allowing the camera to be positioned for optimal coverage regardless of architectural constraints.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The camera features a compact, low-profile dome design with a diameter of 4.74 inches (120.30 mm) and a weight of approximately 1.12 lb (510 g). Its white finish helps it blend with light-colored ceilings and walls for discreet monitoring. The form factor is specifically chosen for its deterrent effect and difficulty of tampering, common in dome-style security cameras.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.12 lb (510 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.12 lb (510 g)
- Length
- 2.8 mm (0.11")
Highlights
- 2-megapixel resolution delivers Full HD 1080p video at 30 fps.
- Infrared night vision effective up to 65.62 ft (20 m) for 24/7 monitoring.
- Vandal-resistant dome housing with IK10 impact and IP66 weatherproof ratings.
- Wide 134.5° diagonal field of view minimizes blind spots.
- Supports H.264, H.265, and MJPEG video compression for flexibility.
- Includes advanced features: motion detection, WDR, BLC, and privacy masking.
- Indoor/outdoor rated for operation from -22°F to 131°F (-30°C to 55°C).
- Flexible mounting: wall, ceiling, pole, parapet, corner, and box mounts.
- 12V DC power input and wired RJ-45 connectivity for reliable operation.
- Local storage support via memory card for onboard recording.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | QNV-6012R1 |
| Brand Name | Wisenet |
| Product Series | Q |
| Product Model | QNV-6012R1 |
| Product Name | 2MP IR Vandal Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 65.62 ft (20 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H: 113.7 / V: 61.5° / D: 134.5° |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/2 |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Wall Mount,Pole Mount,Parapet Mount,Corner Mount,Box Mount,Ceiling Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant |
| Diameter | 4.74" (120.30 mm) |
| Weight (Approximate) | 1.12 lb (510 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Motion Detection,Day/Night,Back Light Compensation (BLC),Wide Dynamic Range,Privacy Masking,Gain Control,Automatic White Balance,SD Card Local Storage,Alarm Triggering |
| Indoor/Outdoor | Indoor/Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
User Manual
FAQ
What is the video resolution and quality of this Wisenet camera?
The Wisenet QNV-6012R1 captures video at a maximum resolution of 1920 x 1080 pixels (Full HD 1080p) with a frame rate of 30 frames per second. This 2-megapixel resolution provides clear, detailed imagery suitable for identifying individuals, license plates, and other critical details in surveillance footage, ensuring high-quality evidence and monitoring capability.
How does the night vision perform and what is its range?
This camera is equipped with infrared (IR) LEDs that enable night vision up to a distance of 65.62 feet (20 meters). The IR illumination activates automatically in low-light conditions, allowing the camera to continue monitoring in complete darkness without visible light, making it effective for 24/7 security applications in both indoor and outdoor settings.
Is this camera suitable for outdoor use and what protections does it have?
Yes, the camera is rated for indoor and outdoor use. It features an IP66 ingress protection rating, meaning it is completely dust-tight and protected against powerful water jets from any direction. Additionally, it has an IK10 impact protection rating, indicating high resistance to vandalism and physical impacts, ensuring durability in exposed or high-traffic areas.
What are the mounting options for this dome camera?
The camera supports versatile mounting to accommodate various installation scenarios. Options include wall mount, ceiling mount, pole mount, parapet mount, corner mount, and box mount. This flexibility allows security installers to position the camera optimally for the desired field of view and coverage, whether on building exteriors, under eaves, or on interior ceilings.
What power source and connectivity does this network camera require?
The camera operates on 12V DC power, which is standard for many security camera systems. For network connectivity, it uses a wired RJ-45 Ethernet connection, providing a stable and reliable link to your network video recorder (NVR) or network switch. It does not support Power over Ethernet (PoE); it requires a separate 12V DC power adapter.
Does this camera support local storage and what video management features does it include?
Yes, the camera includes support for local storage via a memory card (SD card), allowing for onboard recording without always requiring a network video recorder. For video management, it features motion detection, privacy masking to block specific areas from view, alarm triggering, automatic white balance, gain control, and day/night functionality, providing a comprehensive set of tools for effective surveillance management.
