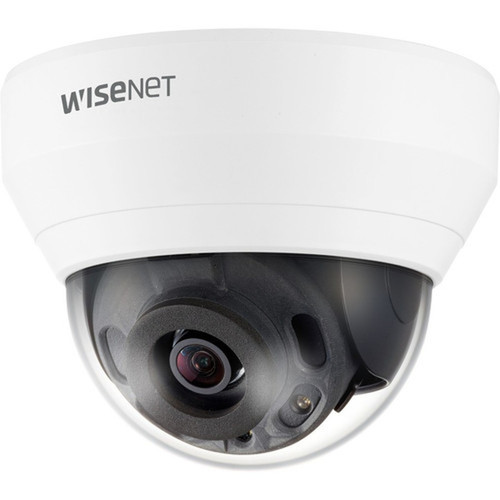

Wisenet QNV-7032R 4MP Network IR Vandal Resistant Camera - Color Dome - White - 98. 43 ft Night Vision - H. 265/H. 264 - 2560 x 1440
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a fixed 6 mm lens with an f/2 maximum aperture, providing consistent focus across its 49.0° horizontal field of view. The exposure system offers a wide shutter speed range from 1/12000 to 1/5 second, allowing for crisp imaging in varying lighting conditions. Video output includes both digital streaming via network connection and analog CVBS output for compatibility with legacy systems.
Network connectivity is provided through a standard RJ-45 port with wired Ethernet support. The camera operates on 12 V DC power and includes support for local storage via memory card. Environmental specifications include operation from -40°F to 131°F (-40°C to 55°C) and up to 95% humidity, ensuring performance in extreme conditions.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
Beyond its core specifications, the QNV-7032R includes comprehensive surveillance features that enhance monitoring effectiveness. Motion detection and tamper detection provide automated alerting, while privacy masking allows for selective area concealment. The built-in microphone enables audio recording alongside video capture, and alarm triggering supports integration with broader security systems.
Vandal-Resistant Construction
The IK10 impact protection rating and IP66 ingress protection make this camera resistant to physical attacks and environmental elements, ideal for high-risk locations.
- IK10 impact rating
- IP66 dust/water resistance
- Durable dome housing
Advanced Imaging Features
Multiple image processing technologies ensure optimal video quality across different surveillance scenarios.
- Wide Dynamic Range (WDR)
- Digital Noise Reduction
- Back Light Compensation
Deployment / Use Cases
This network camera is designed for professional surveillance applications where consistent performance and durability are paramount. Its combination of 4MP resolution, infrared night vision, and robust construction addresses common challenges in both indoor and outdoor environments.
Installation flexibility is provided through conduit mount and gang box mount options, allowing integration into new or existing infrastructure. The dome form factor offers discreet monitoring while the white color blends with many architectural environments. Remote management capabilities enable centralized control and monitoring across distributed deployments.
Retail & Commercial Security
The vandal-resistant design and high-resolution imaging make this camera ideal for retail stores, offices, and commercial facilities where both image clarity and physical durability are required.
Outdoor Perimeter Monitoring
With IP66 weather resistance and extended infrared night vision, the camera performs reliably for perimeter security, parking lots, and building exteriors in various weather conditions.
Physical Profile
The camera features a compact dome design with a 4.74" (120.30 mm) diameter and white finish. Weighing approximately 1.12 lb (510 g), it maintains a low profile while housing the imaging components and infrared LEDs. Mounting options include conduit and gang box configurations for flexible installation in ceilings or walls.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.12 lb (510 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.12 lb (510 g)
- Length
- 6 mm (0.24")
Highlights
- 4MP resolution delivers 2560x1440 video at 30 fps
- 98.43 ft (30 m) infrared night vision with built-in IR LEDs
- Vandal-resistant IK10 and weatherproof IP66 ratings
- Fixed 6 mm lens with f/2 aperture for consistent imaging
- Supports H.265, H.264, and MJPEG video compression
- Wide operating temperature range: -40°F to 131°F (-40°C to 55°C)
- Includes motion detection, tamper detection, and privacy masking
- Built-in microphone for audio recording capability
- 12 V DC power with wired network connectivity
- 3-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | QNV-7032R |
| Brand Name | Wisenet |
| Product Series | Q |
| Product Model | QNV-7032R |
| Product Name | 4MP Network IR Vandal Resistant Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H : 49.0, V : 27.6, D : 55.6 |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.265,H.264,H.265M,H.264M,H.265H,H.264H,MJPEG |
| Maximum Video Resolution | 2560 x 1440 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 6 mm (0.24") |
| Lens Included | Yes |
| Maximum Aperture | f/2 |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Conduit Mount,Gang Box Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant |
| Diameter | 4.74" (120.30 mm) |
| Weight (Approximate) | 1.12 lb (510 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Motion Detection,Tamper Detection,SD Card Local Storage,Built-in IR LED,Day/Night,Back Light Compensation (BLC),Wide Dynamic Range,Digital Noise Reduction,Privacy Masking,Auto Gain Control,Automatic White Balance,Alarm Triggering,Built-in Microphone |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum resolution of this network camera?
The Wisenet QNV-7032R captures video at 4 Megapixel resolution, which translates to 2560 x 1440 pixels. This provides detailed imaging suitable for identifying subjects and monitoring activities in surveillance applications. The camera maintains this resolution at up to 30 frames per second for smooth real-time viewing.
How far does the night vision reach on this camera?
The built-in infrared LEDs provide night vision coverage up to 98.43 feet (30 meters). This infrared illumination enables the camera to capture usable video in complete darkness, making it effective for 24/7 surveillance operations. The night vision automatically activates based on lighting conditions.
What protection ratings does this dome camera have?
This camera carries both IK10 impact protection and IP66 ingress protection ratings. The IK10 rating indicates resistance to physical impacts up to 20 joules, making it vandal-resistant. The IP66 rating ensures protection against dust ingress and powerful water jets, allowing reliable operation in outdoor or harsh environments.
What video compression formats are supported?
The camera supports multiple video compression formats including H.265, H.264, H.265M, H.264M, H.265H, H.264H, and MJPEG. This flexibility allows for efficient bandwidth utilization with modern codecs like H.265 while maintaining compatibility with legacy systems through H.264 and MJPEG options.
What mounting options are available for installation?
The QNV-7032R supports both conduit mount and gang box mount configurations. This provides installation flexibility for various ceiling and wall scenarios, whether integrating into new construction or retrofitting existing structures. The dome form factor offers discreet monitoring while the mounting options ensure secure attachment.
What power requirements does this network camera have?
The camera operates on 12 V DC power, which is standard for many surveillance installations. This low-voltage requirement supports safe operation and compatibility with common power supplies and PoE (Power over Ethernet) injectors when used with appropriate equipment. The wired connectivity ensures consistent power delivery alongside network data transmission.
