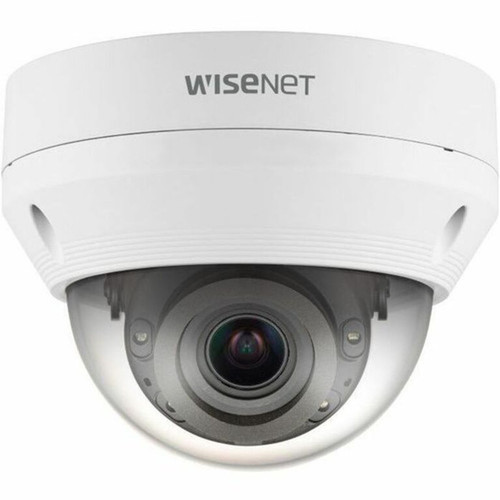

Wisenet QNV-8080R/KME 5MP Network Dome Camera - White - 98. 43 ft IR Night Vision - H. 265/H. 264 - Varifocal Lens - IK10/IP66 - PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the QNV-8080R/KME is a 1/2.8" CMOS image sensor that captures 5-megapixel video with wide dynamic range and backlight compensation. The camera processes video through multiple codec options including H.265, H.264, and MJPEG, with advanced variants like H.265M and H.264H for optimized performance. The varifocal lens provides focal length adjustment from 3.2 mm to 10 mm with aperture settings from f/1.6 to f/2.9, allowing precise control over depth of field and light intake.
Network connectivity is handled through Fast Ethernet with comprehensive protocol support including IPv4/IPv6, TCP/IP, RTSP, HTTP/HTTPS, and SNMPv1/v2c/v3 for integration into diverse surveillance ecosystems. The camera includes extensive video analytics capabilities such as motion detection, privacy masking, audio detection, and digital image stabilization, enhancing its utility in intelligent security applications.
Key Product Advantages
This camera delivers exceptional value through its combination of high-resolution imaging, physical durability, and deployment flexibility. The IK10 impact resistance and IP66 weatherproof rating ensure reliable operation in challenging environments where lesser cameras might fail.
Superior Low-Light Performance
Infrared illumination with 98.43-foot range provides consistent night vision without requiring external lighting, reducing installation complexity and ongoing energy costs.
- Automatic day/night switching
- Infrared cut filter
- Adjustable IR intensity
Advanced Video Processing
Multiple compression codecs including efficient H.265 reduce bandwidth consumption by up to 50% compared to H.264 while maintaining image quality, optimizing network and storage resources.
- H.265, H.264, MJPEG support
- Dual-stream capability
- Configurable bit rate control
Simplified Installation & Maintenance
Power over Ethernet eliminates separate power cabling, while the dome form factor with white finish blends discreetly into various architectural environments.
- Single-cable PoE deployment
- Tool-less adjustment mechanisms
- Remote configuration and firmware updates
Deployment / Use Cases
The QNV-8080R/KME is particularly effective in commercial and institutional settings where surveillance needs to balance high image quality with physical security. Its vandal-resistant construction and weatherproof design make it suitable for perimeter monitoring, entry points, and public areas where cameras might be subject to intentional damage or harsh environmental conditions.
Retail environments benefit from the camera's 5MP resolution for identifying facial features and license plates, while educational institutions and corporate campuses appreciate the privacy masking capabilities for compliance with privacy regulations. The varifocal lens allows installers to optimize the field of view for specific applications—wide-angle coverage for parking lots or telephoto settings for detailed monitoring of cash registers or access gates.
Retail Loss Prevention
High-resolution imaging captures fine details for identifying shoplifting incidents, while the wide dynamic range handles challenging lighting conditions near store entrances and windows.
Critical Infrastructure Protection
IK10 impact resistance and IP66 rating provide reliable monitoring for utility facilities, transportation hubs, and industrial sites exposed to vandalism and extreme weather.
Physical Profile
The camera features a compact dome housing measuring 5.39 inches (137 mm) in diameter with a clean white finish that complements most architectural environments. Weighing approximately 1.54 pounds (700 grams), the unit installs securely to ceilings or walls using standard mounting hardware. The dome design provides some discretion while still offering a visible deterrent presence. The housing includes gaskets and sealed connectors that maintain the IP66 rating against dust and water ingress.
- Weight
- 1.54 lb (700 g)
- Length
- 3.2 mm (0.13")
Highlights
- 5-megapixel resolution delivers 2592 x 1944 video for detailed identification
- 98.43-foot infrared night vision ensures 24/7 monitoring capability
- Varifocal lens with 3.1x optical zoom allows precise field-of-view adjustment
- H.265 and H.264 video compression optimizes bandwidth and storage usage
- IK10 impact resistance protects against vandalism and physical abuse
- IP66 rating provides protection against dust and water ingress
- Power over Ethernet simplifies installation with single-cable deployment
- Wide operating temperature range from -22°F to 131°F (-30°C to 55°C)
- Includes advanced features: motion detection, privacy masking, audio detection
- 3-year limited warranty with TAA compliance for government deployments
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | QNV-8080R/KME |
| Brand Name | Wisenet |
| Product Series | Q |
| Product Model | QNV-8080R |
| Product Name | 5 MP Network IR Vandal Resistant Dome Camera with Varifocal Lens |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | H: 100.3°(Wide)~31.2°(Tele) / V: 72.3°(Wide)~23.5°(Tele) / D: 133.1°(Wide)~38.8°(Tele) |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MJPEG,H.265M,H.265H,H.264M,H.264H |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.2 mm (0.13") |
| Maximum Focal Length | 10 mm (0.39") |
| Lens Included | Yes |
| Minimum Aperture | f/2.9 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 3.1x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | IPv4,IPv6,TCP/IP,UDP/IP,RTP/UDP,RTP/TCP,RTCP,RTSP,NTP,HTTP,HTTPS,SSL/TLS,DHCP,FTP,SMTP,ICMP,IGMP,SNMPv1/v2c/v3 (MIB2),ARP,DNS,DDNS,QoS,UPnP,Bonjour,LLDP |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Power Source Type | PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Form Factor | Dome |
| Diameter | 5.39" (137 mm) |
| Weight (Approximate) | 1.54 lb (700 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Wide Dynamic Range,Day/Night,Back Light Compensation (BLC),Digital Noise Reduction,Digital Image Stabilization,Motion Detection,Privacy Masking,Gain Control,White Balance,Audio Detection |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Country of Origin | Korea |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the effective resolution of this Wisenet camera?
The QNV-8080R/KME captures video at 5 megapixels, which translates to a maximum resolution of 2592 x 1944 pixels. This high resolution provides significantly more detail than standard 1080p cameras, allowing for clearer identification of faces, license plates, and other important details in surveillance footage.
How far does the night vision reach on this dome camera?
The integrated infrared illuminators provide clear black-and-white video in total darkness up to 98.43 feet (30 meters). This substantial range ensures reliable monitoring of large outdoor areas or long corridors without requiring additional external lighting infrastructure.
What type of lens does this camera include?
This camera features a varifocal lens with a focal length range from 3.2 mm to 10 mm, offering 3.1x optical zoom capability. The varifocal design allows installers to manually adjust the field of view during installation to perfectly match the surveillance area, from a wide 100.3° horizontal angle to a tighter 31.2° telephoto view.
How is this camera powered and connected to the network?
The camera uses Power over Ethernet (PoE) technology, which delivers both data connectivity and electrical power through a single Ethernet cable. This simplifies installation by eliminating the need for separate power cabling and outlets near the camera location. The network interface is Fast Ethernet (100 Mbps) via a standard RJ-45 connector.
What protection ratings does this camera have against physical damage?
This dome camera carries an IK10 impact protection rating, meaning it can withstand impacts of up to 20 joules (equivalent to a 5 kg mass dropped from 400 mm). It also has an IP66 ingress protection rating, providing complete protection against dust and powerful water jets from any direction. These ratings make it suitable for vandal-prone areas and outdoor installations.
What video compression formats does this camera support?
The camera supports multiple video compression formats including modern H.265 (HEVC), H.264 (AVC), and MJPEG. H.265 provides approximately 50% better compression efficiency than H.264 while maintaining similar video quality, significantly reducing bandwidth and storage requirements. The camera can stream in multiple formats simultaneously for different monitoring or recording applications.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
