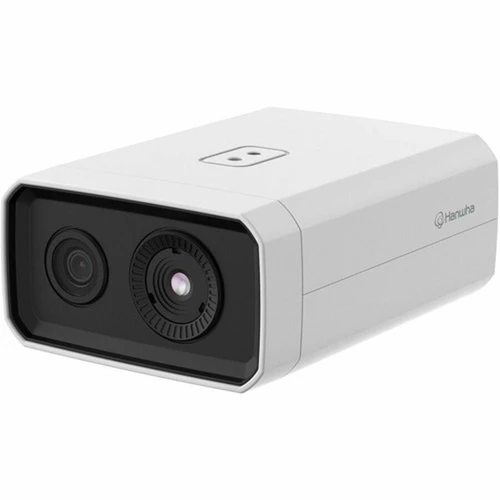

Wisenet TNM-C3622TDR Bi-Spectrum AI Thermal Network Camera - 2MP Visible & QVGA Thermal - Indoor Compact White - H. 265/H. 264/MJPEG - PoE+
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera employs a 1/2.8" CMOS sensor for visible imaging and an uncooled microbolometer for thermal detection, both working in tandem to provide comprehensive monitoring. The visible channel captures Full HD video at 1920 x 1080 resolution with a maximum frame rate of 30 fps, while the thermal channel operates at 1280 x 960 resolution for temperature-based imaging.
Video encoding supports modern compression standards including H.265, H.264, and MJPEG formats, with multiple profile variants for bandwidth optimization. The fixed lens system features a maximum aperture of f/1.6 with focal lengths of 4mm for visible and 4.70mm for thermal imaging, providing consistent optical performance across both spectrums.
This section brings together practical product details such as HD Recording, Recording Formats, Camera Iris, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The TNM-C3622TDR distinguishes itself through its dual-imaging approach that combines traditional surveillance with thermal detection capabilities. This bi-spectrum design ensures reliable monitoring regardless of lighting conditions, while the integrated AI intelligence provides automated object classification to reduce false alarms and improve security efficiency.
Dual-Spectrum Monitoring
Simultaneous visible and thermal imaging provides comprehensive coverage that maintains effectiveness in complete darkness, fog, smoke, or challenging lighting conditions where conventional cameras might fail.
- 2MP visible imaging for detailed color footage
- QVGA thermal detection for temperature-based monitoring
- Integrated processing for both spectrums
AI-Powered Intelligence
Advanced analytics include person detection through the visible channel and precise temperature monitoring across six configurable regions of interest, enabling automated alerts for specific thermal events.
- Person classification reduces false alarms
- Temperature range: -20°C to 130°C
- Six quadrangle ROI areas for focused monitoring
Enterprise-Grade Connectivity
Comprehensive protocol support including ONVIF compliance ensures seamless integration with existing security systems, while PoE+ power simplifies installation by delivering both data and power over a single Ethernet cable.
- ONVIF compliant for system integration
- PoE+ or 12V DC power options
- Extensive protocol support including IPv6
Deployment / Use Cases
Designed specifically for indoor environments, the TNM-C3622TDR excels in applications where traditional visible-light cameras need supplemental thermal detection capabilities. Its compact aluminum construction and white finish make it suitable for discreet installation in commercial, industrial, and institutional settings.
The camera's temperature monitoring functionality extends its utility beyond security to include environmental monitoring applications. Facilities can deploy these units to monitor equipment temperatures, detect overheating components, or ensure temperature-sensitive areas remain within specified ranges while maintaining traditional surveillance coverage.
Commercial Security
Retail stores, office buildings, and corporate campuses benefit from the dual-spectrum approach that maintains surveillance effectiveness during nighttime hours or in areas with inconsistent lighting.
Industrial Monitoring
Manufacturing facilities and warehouses can utilize the temperature monitoring capabilities to oversee equipment health while maintaining security surveillance across the same monitored areas.
Physical Profile
Measuring 5.31" wide x 2.95" high x 7.42" deep (135 x 75 x 188.5mm) and weighing approximately 3.75 pounds (1700g), the camera features a compact form factor designed for discreet indoor installation. The aluminum construction provides durability while maintaining a professional white finish that blends with modern interior environments.
Operating temperature range spans from 14°F to 131°F (-10°C to 55°C) with humidity tolerance up to 95%, ensuring reliable performance in various indoor climate conditions. The camera's environmental specifications support deployment in server rooms, manufacturing areas, and other controlled indoor spaces where temperature monitoring adds value to traditional security functions.
- Width
- 5.31" (135 mm)
- Depth
- 7.42" (188.50 mm)
- Height
- 2.95" (75 mm)
- Weight
- 3.75 lb (1700 g)
- Length
- 4 mm (0.16")
Highlights
- Bi-spectrum monitoring with 2MP visible and QVGA thermal imaging
- AI-powered object classification for person detection (visible channel)
- Remote temperature monitoring from -20°C to 130°C
- Six configurable quadrangle ROI areas for temperature monitoring
- Compact aluminum construction with white finish for indoor use
- PoE+ or 12V DC power options for flexible installation
- H.265, H.264, and MJPEG video compression formats
- Fast Ethernet connectivity with extensive protocol support
- 4.5GB internal memory plus memory card storage
- Five-year limited warranty with TAA compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | TNM-C3622TDR |
| Brand Name | Wisenet |
| Product Series | T |
| Product Model | TNM-C3622TDR |
| Product Name | TNM-C3622TDR Bi-Spectrum AI Thermal Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Camera Iris | Fixed |
| AI-powered | Yes |
| Languages Support | English,Korean,Chinese,French,Italian,Spanish,German,Japanese,Russian,Portuguese,Czech,Polish,Turkish,Dutch,Hungarian,Greek |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Thermal Image Sensor Type | Uncooled Microbolometer |
| Color Supported | Color |
| Field of View | H: 87.6, V: 46.4°, D: 104 |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MJPEG,H.265M,H.265H,H.265B,H.264M,H.264B,H.264H |
| Maximum Video Resolution | 1920 x 1080 |
| Thermal Video Resolution | 1280 x 960 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | CVBS |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm (0.16") |
| Maximum Focal Length (Lens 2) | 0.19" (4.70 mm) |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Maximum Thermal Focal Length | 0.19" (4.70 mm) |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | Unicast,Multicast,IPv4,IPv6,TCP/IP,UDP/IP,RTP/UDP,RTP/TCP,RTCP,RTSP,NTP,HTTP,HTTPS,SSL/TLS,DHCP,FTP,SMTP,ICMP,IGMP,SNMPv1/v2c/v3 (MIB2),ARP,DNS,DDNS,QoS,UPnP,Bonjour,LLDP,SRTP,MQTT,ONVIF |
| Storage | |
| Storage Type | Memory Card |
| Internal Memory | 4.50 GB |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 17 W |
| Input Voltage | 12 V DC |
| Power Source Type | PoE+,DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Aluminum |
| Form Factor | Compact |
| Height | 2.95" (75 mm) |
| Width | 5.31" (135 mm) |
| Depth | 7.42" (188.50 mm) |
| Weight (Approximate) | 3.75 lb (1700 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Storage Temperature | -22°F (-30°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Maximum Storage Humidity | 95% |
| Miscellaneous | |
| Features | Back Light Compensation (BLC),Wide Dynamic Range,Motion Detection,Digital Image Stabilization,Digital Noise Reduction,Privacy Masking,Gain Control,White Balance,Mirror,Anti-flicker |
| Indoor/Outdoor | Indoor |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What makes this camera bi-spectrum and how does it work?
The TNM-C3622TDR combines two imaging technologies in one device: a 2-megapixel CMOS sensor for visible light imaging and an uncooled microbolometer for thermal detection. These sensors work simultaneously to provide both traditional color video and temperature-based imaging, ensuring monitoring continues effectively in complete darkness or challenging lighting conditions where conventional cameras might fail.
What AI capabilities does this thermal network camera include?
This camera features AI-powered object classification specifically for person detection through its visible channel, reducing false alarms by distinguishing human activity from other motion. Additionally, it provides remote temperature monitoring across six configurable quadrangle regions of interest, with a monitoring range from -20°C to 130°C for precise thermal event detection and alerting.
What are the video resolution and compression options available?
The visible channel captures Full HD video at 1920 x 1080 resolution with a maximum frame rate of 30 frames per second, while the thermal channel operates at 1280 x 960 resolution. Video compression supports H.265, H.264, and MJPEG formats with multiple profile variants including H.265M, H.265H, H.264M, and H.264B for bandwidth optimization and storage efficiency.
How is this camera powered and what are the installation options?
The camera offers dual power options: Power over Ethernet Plus (PoE+) or 12V DC input. PoE+ support allows both data and power delivery over a single Ethernet cable, simplifying installation by eliminating the need for separate power wiring. With a maximum power consumption of 17 watts, the camera operates efficiently while supporting its dual-imaging capabilities and processing functions.
What storage options are available for recorded footage?
Storage options include both internal memory and expandable external storage. The camera features 4.5GB of internal memory for temporary recording or system functions, plus support for memory cards for extended local storage. This dual-storage approach provides flexibility for different deployment scenarios and recording requirements.
What environmental conditions is this camera designed for?
Designed specifically for indoor deployment, the camera operates reliably in temperatures from 14°F to 131°F (-10°C to 55°C) with humidity tolerance up to 95%. Its compact aluminum construction measures 5.31" x 2.95" x 7.42" and weighs approximately 3.75 pounds, making it suitable for discreet installation in commercial, industrial, and institutional indoor environments.
How much memory is installed?
It includes 4.50 GB of memory to support responsive multitasking and daily workloads.
