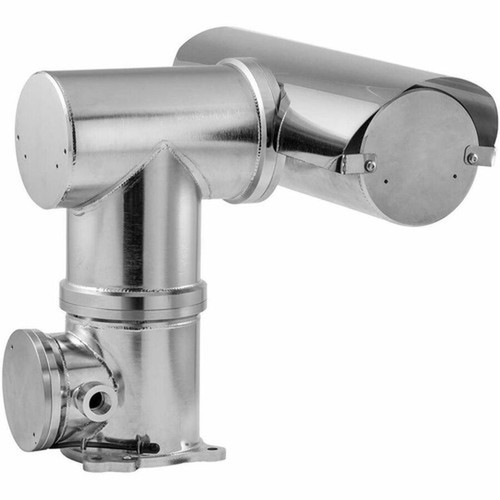

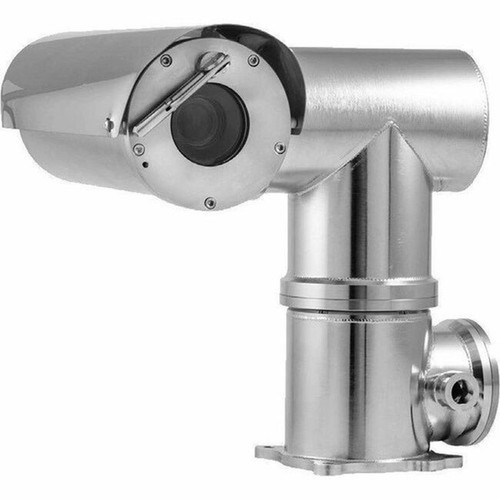

Wisenet TNU-X6320A2F2WT1-M Explosion Proof PTZ Network Camera - 2. 4MP Full HD - 32x Optical Zoom - IP66/67 - Fast Ethernet
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera's technical profile is defined by its professional-grade components and comprehensive protocol support. The 1/2.8" CMOS sensor offers efficient power consumption and strong HD video performance. Video encoding leverages modern standards including H.265 for efficient bandwidth use and H.264 for broad compatibility, supporting streaming and recording in Full HD.
Network integration is streamlined through Fast Ethernet and extensive protocol support including ONVIF, RTSP, and SNMP, ensuring seamless operation within existing IP surveillance ecosystems. Local storage is facilitated via memory card, providing a backup recording option directly at the camera.
This section brings together practical product details such as HD Recording, Recording Formats, Image Sensor Type, Image Sensor Size, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Exposure Control
Features a wide aperture range from f/4.4 to f/1.6 and shutter speeds from 1/12000 second to 1 second, enabling optimal image capture in varying lighting conditions.
- Auto Gain Control
- Back Light Compensation (BLC)
- Wide Dynamic Range
Key Product Advantages
The TNU-X6320A2F2WT1-M stands out with its combination of rugged construction, powerful optics, and intelligent video analytics, making it a versatile solution for perimeter security, industrial monitoring, and high-value asset protection.
Extreme Environment Ready
With an IP66/67 rating and explosion-proof construction, this camera is built to withstand dust, water jets, temporary immersion, and hazardous atmospheres where flammable gases or dust may be present.
- Operates from -40°F to 140°F
- Tamper detection
- Defog and wiper features
Advanced Video Intelligence
Incorporates a suite of analytics to reduce false alarms and focus operator attention on genuine security events.
- Motion Detection
- Face Detection
- Cross Line Detection
- Enter/Exit Detector
- Privacy Masking
Deployment / Use Cases
This camera is specifically designed for deployment in environments where standard surveillance equipment would fail. Its robust feature set addresses the core needs of industrial, utility, and secure facility monitoring.
The 32x optical zoom and PTZ capabilities make it ideal for covering large, open areas like storage yards, parking lots, or perimeter fences, where the ability to zoom in on details from a single fixed mount point is critical. The explosion-proof rating directly suits oil and gas facilities, chemical plants, grain silos, or any location classified for explosive atmospheres.
Industrial Perimeter Security
Monitor fence lines, gatehouses, and outdoor storage areas with clear detail day or night, leveraging the camera's wide temperature tolerance and environmental sealing.
Critical Infrastructure Monitoring
Deploy in utility substations, water treatment plants, or transportation hubs where reliable, high-resolution video is needed for both security and operational oversight.
Highlights
- 2.4-megapixel CMOS sensor delivers Full HD 1080p video at 60 fps.
- 32x optical zoom varifocal lens provides detailed long-range observation.
- Explosion-proof construction and IP66/67 rating for harsh industrial environments.
- Operates reliably in extreme temperatures from -40°F to 140°F (-40°C to 60°C).
- Supports H.265, H.264, and MJPEG video compression for bandwidth efficiency.
- Comprehensive video analytics including motion, face, and cross-line detection.
- Fast Ethernet connectivity with extensive protocol support (ONVIF, RTSP, SNMP).
- Local storage option via memory card for backup recording.
- Features defog, digital image stabilization, and wide dynamic range for clear imaging.
- Backed by a 3-year limited warranty from the manufacturer.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | TNU-X6320A2F2WT1-M |
| Brand Name | Wisenet |
| Product Model | TNU-X6320A2F2WT1-M |
| Product Name | Explosion Proof PTZ Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | H : 64.66°(Wide) ~ 2.29°(Tele) / V : 38.08°(Wide) ~ 1.30°(Tele) |
| Effective Camera Resolution | 2.4 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG,H.264 (MPEG-4 Part 10/AVC) |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.4 mm (0.17") |
| Maximum Focal Length | 142.6 mm (5.61") |
| Lens Included | Yes |
| Lens Mount Type | Board Mount |
| Minimum Aperture | f/4.4 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 32x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | ONVIF,TCP/IP,UDP/IP,RTP/UDP,RTP/TCP,RTCP,RTSP,NTP,HTTP,HTTPS,SSL,DHCP,FTP,SMTP,ICMP,IGMP,SNMPv1/v2c/v3 (MIB2),ARP,DNS,DDNS,QoS,PIM-SM,Bonjour,UPnP,LLDP,SRTP |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 110 V AC |
| Power Source Type | AC |
| Physical Characteristics | |
| Durability | Explosion Proof |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Miscellaneous | |
| Features | Motion Detection,Day/Night,Wide Dynamic Range,Highlight Compensation (HLC),Auto Gain Control,Back Light Compensation (BLC),Digital Image Stabilization,Defog,Wiper,Ingress Protection,SD Card Local Storage,Digital Noise Reduction,2D Noise Reduction,3D Noise Filtering,Privacy Masking,White Balance,Tamper Detection,Enter/Exit Detector,Cross Line Detection,Shock Detection,Face Detection,Alarm Triggering,PTZ |
| Ingress Protection Rating | IP66,IP67 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What does 'explosion-proof' mean for this network camera?
Explosion-proof indicates the camera's enclosure is designed to contain any internal spark or explosion, preventing it from igniting flammable gases, vapors, or dust in the surrounding atmosphere. This makes the Wisenet TNU-X6320A2F2WT1-M suitable for use in hazardous locations classified for such environments, such as certain industrial or chemical processing areas.
What is the maximum resolution and frame rate of this camera?
The camera captures video at a maximum resolution of 1920 x 1080 pixels, which is Full HD. It can record at up to 60 frames per second (fps) at this resolution, providing smooth, real-time video that is essential for monitoring fast-moving activity or for detailed forensic review.
What type of zoom does this PTZ camera have, and what is its range?
This camera features a 32x optical zoom. The varifocal lens has a focal length range from 4.4 mm (wide) to 142.6 mm (telephoto), allowing you to significantly magnify distant subjects without the image degradation associated with digital zoom. This provides detailed inspection capability over a large area from a single mounting point.
Can this camera operate in very cold or hot conditions?
Yes, it is built for extreme environments. The Wisenet TNU-X6320A2F2WT1-M has an operating temperature range of -40°F to 140°F (-40°C to 60°C). This wide range ensures reliable performance in outdoor installations or unregulated indoor spaces that experience severe seasonal temperature swings.
What networking and storage options does it support?
The camera connects via wired Fast Ethernet (10/100 Mbps) and supports a broad set of standard protocols including ONVIF for interoperability, RTSP for streaming, and SNMP for management. For storage, it supports local recording to a memory card (SD card), providing an on-device backup or primary storage solution independent of a network video recorder (NVR).
What video analytics and smart features are included?
The camera includes a robust set of analytics to enhance surveillance efficiency. Key features are motion detection, face detection, cross line detection (for virtual tripwires), and an enter/exit detector. It also has tamper detection, privacy masking, and advanced image processing like defog, digital image stabilization, and wide dynamic range to improve picture quality in challenging light.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
