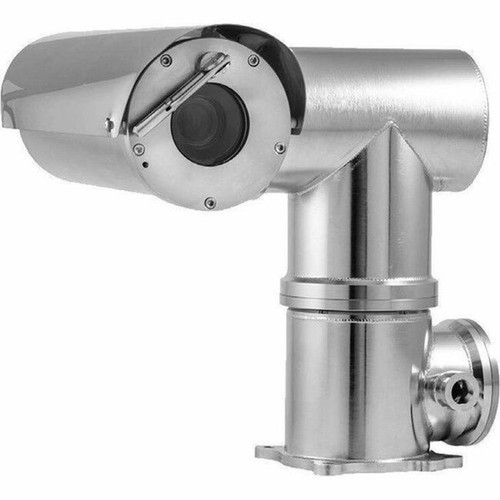

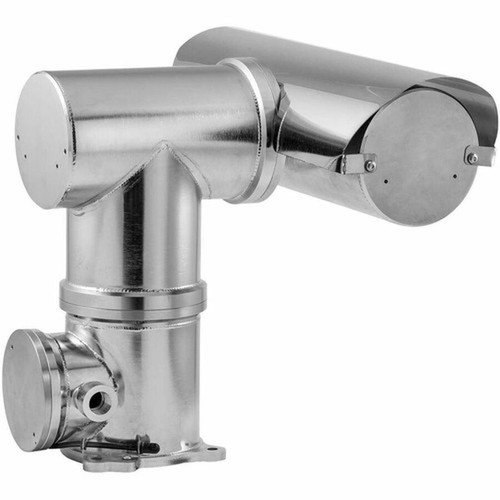

Wisenet TNU-X6320A2WT1-Z Explosion Proof PTZ Network Camera - 2. 4MP Full HD 1080p - 32x Optical Zoom - IP66/IP67 - Fast Ethernet
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera features advanced imaging capabilities with a 2.4-megapixel CMOS sensor that produces Full HD 1080p video. The varifocal lens offers a focal length range from 4.4 mm to 142.6 mm, providing 32x optical zoom for detailed close-ups and wide-area coverage. Aperture settings range from f/1.6 to f/4.4, allowing optimal light intake in varying conditions.
Video encoding supports H.264, H.265, and MJPEG formats, with H.264 MPEG-4 Part 10/AVC ensuring high compression efficiency. The camera operates on 110V AC power and connects via Fast Ethernet, supporting protocols like TCP/IP, RTSP, HTTP, and SNMP for remote management and monitoring. Local storage is available through a memory card slot, adding flexibility for data retention.
This section brings together practical product details such as HD Recording, Recording Formats, Image Sensor Type, Image Sensor Size, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Wisenet TNU-X6320A2WT1-Z stands out with its explosion-proof construction and high environmental durability, making it ideal for secure monitoring in volatile settings. Its 32x optical zoom and 2.4MP resolution provide exceptional image detail, while support for H.265 encoding reduces bandwidth and storage demands without compromising video quality.
Robust Environmental Protection
With IP66/IP67 ratings and an operating range from -40°F to 140°F, this camera resists dust, water, and extreme temperatures, ensuring reliable performance in outdoor or industrial applications.
- IP66/IP67 Ingress Protection
- Wide Temperature Tolerance
- Explosion-Proof Design
Advanced Imaging Features
The camera includes motion detection, day/night operation, wide dynamic range, and digital noise reduction, enhancing surveillance effectiveness in challenging lighting and weather conditions.
- Motion Detection
- Wide Dynamic Range
- Digital Noise Reduction
Deployment / Use Cases
This camera is designed for high-security and industrial surveillance where durability and image clarity are critical. Its explosion-proof rating makes it suitable for oil and gas facilities, chemical plants, mining operations, and other hazardous environments where standard cameras would fail.
In commercial and public settings, it can be deployed for perimeter security, parking lot monitoring, or large-area surveillance in airports, ports, or transportation hubs. The PTZ functionality and remote management capabilities allow operators to pan, tilt, and zoom as needed, providing flexible coverage for dynamic security needs.
Industrial Hazard Monitoring
Use in explosion-prone areas to monitor equipment, processes, and perimeters with reliable, certified protection against environmental hazards.
Critical Infrastructure Security
Deploy at utilities, transportation centers, or government facilities for high-resolution, real-time surveillance with robust network integration.
Highlights
- 2.4-megapixel Full HD 1080p resolution for clear surveillance video
- 32x optical zoom varifocal lens for detailed close-ups and wide coverage
- Explosion-proof construction with IP66/IP67 environmental protection
- Operates in extreme temperatures from -40°F to 140°F (-40°C to 60°C)
- Supports H.264, H.265, and MJPEG video formats for flexible encoding
- Fast Ethernet connectivity with remote management capabilities
- Includes motion detection, day/night mode, and wide dynamic range
- 3-year limited warranty for added reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | TNU-X6320A2WT1-Z |
| Brand Name | Wisenet |
| Product Model | TNU-X6320A2WT1-Z |
| Product Name | Explosion Proof PTZ Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | H : 64.66°(Wide) ~ 2.29°(Tele) / V : 38.08°(Wide) ~ 1.30°(Tele) |
| Effective Camera Resolution | 2.4 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG,H.264 (MPEG-4 Part 10/AVC) |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.4 mm (0.17") |
| Maximum Focal Length | 142.6 mm (5.61") |
| Lens Included | Yes |
| Lens Mount Type | Board Mount |
| Minimum Aperture | f/4.4 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 32x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | ONVIF,TCP/IP,UDP/IP,RTP/UDP,RTP/TCP,RTCP,RTSP,NTP,HTTP,HTTPS,SSL,DHCP,FTP,SMTP,ICMP,IGMP,SNMPv1/v2c/v3 (MIB2),ARP,DNS,DDNS,QoS,PIM-SM,Bonjour,UPnP,LLDP,SRTP |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 110 V AC |
| Power Source Type | AC |
| Physical Characteristics | |
| Durability | Explosion Proof |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Miscellaneous | |
| Features | Motion Detection,Day/Night,Wide Dynamic Range,Highlight Compensation (HLC),Auto Gain Control,Back Light Compensation (BLC),Digital Image Stabilization,Defog,Wiper,Ingress Protection,SD Card Local Storage,Digital Noise Reduction,2D Noise Reduction,3D Noise Filtering,Privacy Masking,White Balance,Tamper Detection,Enter/Exit Detector,Cross Line Detection,Shock Detection,Face Detection,Alarm Triggering,PTZ |
| Ingress Protection Rating | IP66,IP67 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the resolution and video quality of this Wisenet camera?
The Wisenet TNU-X6320A2WT1-Z captures 2.4-megapixel video at Full HD 1080p resolution (1920 x 1080) with a maximum frame rate of 60 fps. This ensures high-definition, smooth video suitable for detailed surveillance and real-time monitoring in various environments.
Does this camera support optical zoom and what is the range?
Yes, it features a 32x optical zoom with a varifocal lens that ranges from 4.4 mm (wide) to 142.6 mm (telephoto). This allows for significant magnification without loss of image quality, ideal for monitoring both broad areas and specific details from a distance.
What environmental protections does this explosion-proof camera offer?
This camera is rated IP66 and IP67, making it dust-tight and capable of withstanding temporary immersion in water. It also operates in temperatures from -40°F to 140°F (-40°C to 60°C) and is built with explosion-proof durability for use in hazardous locations.
What video formats are supported for recording and streaming?
It supports H.264, H.265, and MJPEG video formats, including H.264 MPEG-4 Part 10/AVC. H.265 offers efficient compression to save bandwidth and storage, while maintaining high video quality for surveillance applications.
How does this camera connect to the network and what management features are included?
The camera connects via Fast Ethernet using an RJ-45 port and supports protocols like ONVIF, TCP/IP, RTSP, and SNMP for remote management. Features include motion detection, tamper detection, and alarm triggering, allowing for comprehensive control and monitoring over the network.
What is the warranty period for this Wisenet network camera?
This camera comes with a 3-year limited warranty, providing coverage for defects in materials and workmanship. This warranty supports long-term reliability and peace of mind for deployments in demanding surveillance scenarios.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
