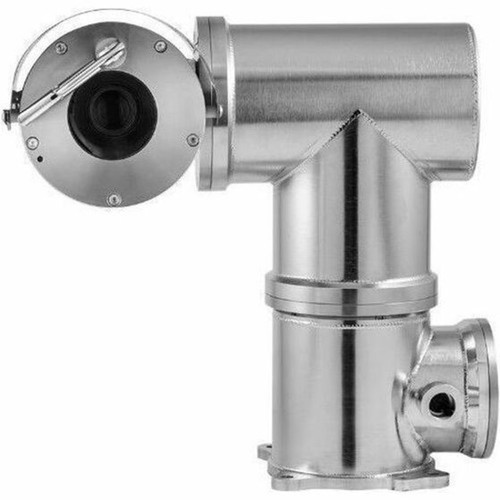

Wisenet TNU-X6320A2WT2-C Explosion Proof PTZ Network Camera - 2. 4MP Full HD 1080p - 32x Optical Zoom - IP66/67 - Fast Ethernet
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the TNU-X6320A2WT2-C utilizes a 1/2.8" CMOS image sensor that supports color imaging in all lighting conditions. The sensor enables efficient power consumption and cost-effective operation compared to CCD alternatives, while delivering high-definition video. Video compression is handled through multiple formats including H.264, H.265, and MJPEG, providing flexibility for bandwidth management and storage optimization. The camera supports a maximum resolution of 1920 x 1080, ensuring Full HD output compatible with modern monitoring systems.
Network connectivity is established via a wired Fast Ethernet interface with an RJ-45 port, supporting a comprehensive suite of protocols such as ONVIF, TCP/IP, RTSP, and SNMP for seamless integration into existing security infrastructures. The camera features extensive video analytics and enhancement capabilities, including motion detection, day/night operation, wide dynamic range, digital noise reduction, and privacy masking. Local storage is supported through a memory card slot, offering redundancy and quick access to recorded footage.
Key Product Advantages
This camera distinguishes itself through a blend of high-performance imaging, mechanical durability, and operational resilience tailored for challenging surveillance scenarios. The explosion proof and IP66/67-rated enclosure ensures uninterrupted operation in harsh industrial, outdoor, or hazardous environments, protecting against extreme temperatures, moisture, dust, and potential explosive atmospheres. The 32x optical zoom provides unparalleled detail capture at long distances, reducing the need for multiple fixed cameras and simplifying system design.
Advanced Image Processing
Incorporates features like digital image stabilization, defog, highlight compensation, and 2D/3D noise filtering to maintain video clarity in adverse conditions such as low light, backlight, or inclement weather.
- Wide Dynamic Range
- Back Light Compensation
- Auto Gain Control
Comprehensive Analytics
Offers built-in intelligent video analytics including face detection, tamper detection, cross line detection, and alarm triggering, enabling proactive security management and reducing manual monitoring overhead.
Deployment / Use Cases
The Wisenet TNU-X6320A2WT2-C is ideally deployed in environments demanding robust, high-resolution surveillance with remote controllability. Its explosion proof certification and wide operating temperature range make it a prime choice for oil and gas facilities, chemical plants, mining operations, and transportation hubs where safety and security are paramount. The PTZ functionality allows for active monitoring of large perimeters, critical infrastructure, or high-value assets, with the ability to pan, tilt, and zoom to track incidents or inspect details in real-time.
For commercial and industrial applications, this camera serves as a versatile solution for monitoring warehouses, manufacturing floors, parking lots, and remote outdoor sites. Integration with network video recorders (NVRs) and video management software (VMS) is streamlined through ONVIF compliance and support for standard protocols, ensuring compatibility with most security ecosystems. The camera's remote management capabilities enable administrators to configure settings, view live feeds, and review recordings from a central location, enhancing operational efficiency and response times.
Highlights
- 2.4-megapixel CMOS sensor delivers Full HD 1080p video at 60 fps
- 32x optical zoom varifocal lens for detailed long-range surveillance
- Explosion proof and IP66/67-rated for hazardous and outdoor environments
- Operates in extreme temperatures from -60°C to 60°C
- Supports H.264, H.265, and MJPEG video compression formats
- Fast Ethernet connectivity with comprehensive protocol support including ONVIF
- Built-in video analytics: motion detection, face detection, tamper detection
- Local storage via memory card slot for backup and quick access
- Remote management capabilities for centralized control
- 3-year limited warranty for added reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | TNU-X6320A2WT2-C |
| Brand Name | Wisenet |
| Product Model | TNU-X6320A2WT2-C |
| Product Name | Explosion Proof PTZ Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | H : 64.66°(Wide) ~ 2.29°(Tele) / V : 38.08°(Wide) ~ 1.30°(Tele) |
| Effective Camera Resolution | 2.4 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG,H.264 (MPEG-4 Part 10/AVC) |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.4 mm (0.17") |
| Maximum Focal Length | 142.6 mm (5.61") |
| Lens Included | Yes |
| Lens Mount Type | Board Mount |
| Minimum Aperture | f/4.4 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 32x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | ONVIF,TCP/IP,UDP/IP,RTP/UDP,RTP/TCP,RTCP,RTSP,NTP,HTTP,HTTPS,SSL,DHCP,FTP,SMTP,ICMP,IGMP,SNMPv1/v2c/v3 (MIB2),ARP,DNS,DDNS,QoS,PIM-SM,Bonjour,UPnP,LLDP,SRTP |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 110 V AC |
| Power Source Type | AC |
| Physical Characteristics | |
| Durability | Explosion Proof |
| Environmental Conditions | |
| Minimum Operating Temperature | -76°F (-60°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Miscellaneous | |
| Features | Motion Detection,Day/Night,Wide Dynamic Range,Highlight Compensation (HLC),Auto Gain Control,Back Light Compensation (BLC),Digital Image Stabilization,Defog,Wiper,Ingress Protection,SD Card Local Storage,Digital Noise Reduction,2D Noise Reduction,3D Noise Filtering,Privacy Masking,White Balance,Tamper Detection,Enter/Exit Detector,Cross Line Detection,Shock Detection,Face Detection,Alarm Triggering,PTZ |
| Ingress Protection Rating | IP66,IP67 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the resolution and video quality of this camera?
The Wisenet TNU-X6320A2WT2-C captures 2.4-megapixel video at a maximum resolution of 1920 x 1080 Full HD. It records at up to 60 frames per second, ensuring smooth, high-detail footage suitable for identification and monitoring in security applications.
How does the 32x optical zoom benefit surveillance?
The 32x optical zoom allows the camera to cover wide areas and zoom in on distant objects without losing image quality. With a varifocal lens ranging from 4.4 mm to 142.6 mm, it provides flexible field-of-view adjustments, reducing the need for additional cameras and enhancing detail capture in large or complex environments.
Is this camera suitable for outdoor or harsh environments?
Yes, this camera is designed for demanding conditions. It features an explosion proof rating and IP66/67 ingress protection, making it resistant to dust, water, and hazardous atmospheres. It operates reliably in temperatures from -60°C to 60°C, ideal for industrial, outdoor, or extreme weather locations.
What connectivity and network features does it support?
The camera uses wired Fast Ethernet with an RJ-45 port, supporting protocols like ONVIF, TCP/IP, RTSP, and SNMP for easy integration into existing networks. It includes remote management capabilities and local storage via a memory card slot, offering flexible deployment and control options.
Does it include video analytics or smart detection features?
Yes, it incorporates advanced video analytics including motion detection, face detection, tamper detection, cross line detection, and alarm triggering. Additional features like wide dynamic range, digital noise reduction, and privacy masking enhance video clarity and security management in various lighting and environmental conditions.
What is the warranty and reliability assurance?
The Wisenet TNU-X6320A2WT2-C comes with a 3-year limited warranty, supporting its durability and performance in critical surveillance roles. Its robust construction and quality components are backed by this warranty, providing peace of mind for long-term deployments in security systems.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
