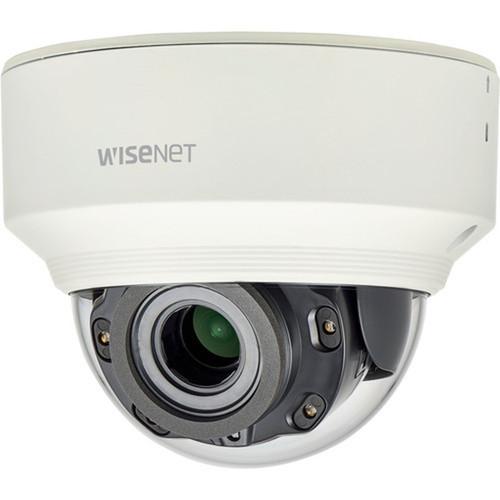

Wisenet XND-L6080RV 2MP Indoor IR Vandal Dome Camera - Full HD 1080p - 30m Night Vision - Varifocal Lens - IK08 - Ivory
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a CMOS image sensor that captures 2-megapixel video at a maximum resolution of 1920 x 1080. It supports modern video compression formats including H.265, H.264, and MJPEG, optimizing bandwidth and storage efficiency. The varifocal lens offers a 3.2mm to 10mm focal length range with a 3.1x optical zoom, allowing precise adjustment of the viewing angle from wide 109° coverage to a narrower 33° telephoto perspective.
Exposure control ranges from 1/12000 second to 2 seconds, with adjustable aperture from f/1.6 to f/2.9, providing flexibility for various indoor lighting scenarios. The camera includes comprehensive imaging features such as defog, digital image stabilization, privacy masking, motion detection, and automatic day/night switching. Network connectivity is via wired Ethernet (RJ-45) with remote management support for integration into existing surveillance systems.
Key Product Advantages
The XND-L6080RV combines high-resolution imaging with robust physical protection and flexible installation options for reliable indoor surveillance. Its vandal-resistant dome design and comprehensive feature set make it suitable for environments where camera durability and image clarity are equally important.
Enhanced Low-Light Performance
Infrared night vision extends monitoring capability to 30 meters in complete darkness, while features like wide dynamic range and digital noise reduction maintain image integrity in low-light or high-contrast scenes.
- 30m infrared illumination
- Wide dynamic range processing
- Digital noise reduction
Flexible Installation & Protection
Multiple mounting options including wall, ceiling, box, and pipe mounts provide installation flexibility, while the IK08 impact rating ensures protection against vandalism and accidental impacts.
- Four mounting types supported
- IK08 impact protection
- Discreet ivory dome housing
Efficient Video Management
Support for H.265 and H.264 compression reduces bandwidth and storage requirements without sacrificing video quality, complemented by remote management capabilities for system integration.
- H.265/H.264 encoding
- Memory card storage option
- Remote configuration support
Deployment / Use Cases
This indoor dome camera is ideally suited for business environments requiring discreet yet durable surveillance with high-quality video evidence. The combination of vandal resistance, flexible mounting, and reliable night vision makes it effective for monitoring areas where cameras might be subject to tampering attempts or where discreet installation is preferred.
Typical deployments include retail stores, office buildings, schools, healthcare facilities, and hospitality venues. The camera's 60 fps capture rate provides smooth video for monitoring high-traffic areas like entrances, lobbies, corridors, and point-of-sale locations. Its indoor-only rating and temperature operating range make it suitable for climate-controlled environments where consistent performance is required.
Physical Profile
The camera features a compact dome housing measuring 5.54" in diameter and 4.45" in height, with an approximate weight of 1.52 pounds. The ivory-colored finish blends with most indoor ceilings and walls, while the dome design provides a discreet surveillance presence. Multiple mounting options including wall, ceiling, box, and pipe mounts offer installation flexibility for various architectural configurations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.45" (113.03 mm), 5.54" (140.80 mm), 1.52 lb (689.46 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 5.54" (140.80 mm)
- Height
- 4.45" (113.03 mm)
- Weight
- 1.52 lb (689.46 g)
- Length
- 3.2 mm (0.13")
Highlights
- 2-megapixel CMOS sensor delivers Full HD 1080p video at 60 fps
- Infrared night vision extends up to 30 meters (98.43 feet) for 24/7 monitoring
- Varifocal lens with 3.2-10mm focal length and 3.1x optical zoom
- IK08 impact-rated vandal-resistant dome housing for added protection
- Supports H.265, H.264, and MJPEG video compression formats
- Wide 109° horizontal field of view for comprehensive coverage
- Multiple mounting options: wall, ceiling, box, and pipe mounts
- Indoor operation with -10°C to 55°C temperature range
- Includes advanced imaging features: defog, WDR, digital stabilization
- 3-year limited warranty for added reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XND-L6080RV |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XND-L6080RV |
| Product Name | XND-L6080RV 2MP Indoor IR Vandal Dome |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color,Monochrome |
| Field of View | H: 109.0°(Wide)~33.2°(Tele) / V: 57.4°(Wide)~18.7°(Tele) / D: 132.0°(Wide)~38.0°(Tele |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MJPEG,H.264/MPEG-4 AVC |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.2 mm (0.13") |
| Maximum Focal Length | 10 mm (0.39") |
| Lens Included | Yes |
| Minimum Aperture | f/1.6 |
| Maximum Aperture | f/2.9 |
| Optical Zoom | 3.1x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | White |
| Product Color | Ivory |
| Mount Type | Wall Mount,Ceiling Mount,Box Mount,Pipe Mount |
| Form Factor | Dome |
| Height | 4.45" (113.03 mm) |
| Width | 5.54" (140.80 mm) |
| Diameter | 5.54" (140.72 mm) |
| Weight (Approximate) | 1.52 lb (689.46 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Miscellaneous | |
| Features | Defog,Back Light Compensation (BLC),Wide Dynamic Range,Digital Image Stabilization,Digital Noise Reduction,Privacy Masking,Motion Detection,Gain Control,White Balance,Day/Night |
| Indoor/Outdoor | Indoor |
| Impact Protection Rating | IK08 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the video resolution of the Wisenet XND-L6080RV camera?
The camera captures 2-megapixel video at a maximum resolution of 1920 x 1080 Full HD. It records at up to 60 frames per second, providing smooth, detailed footage suitable for identifying individuals and activities in surveillance applications.
How far does the night vision reach on this indoor camera?
The integrated infrared LEDs provide night vision coverage up to 30 meters (approximately 98.43 feet). This allows the camera to monitor spaces in complete darkness, supporting 24/7 surveillance operations without requiring additional lighting infrastructure.
What type of lens does this camera have and is it adjustable?
The camera features a varifocal lens with a focal length range from 3.2mm to 10mm, offering 3.1x optical zoom. This allows adjustment of the field of view from a wide 109° horizontal coverage to a narrower 33° telephoto perspective, providing flexibility to optimize the viewing area for specific installation needs.
Is this camera resistant to vandalism or tampering?
Yes, the dome housing carries an IK08 impact protection rating, which indicates resistance to vandalism and accidental impacts. This makes the camera suitable for installations in areas where tampering might be attempted, such as retail environments, schools, or public facilities.
What mounting options are available for this dome camera?
The camera supports four mounting types: wall mount, ceiling mount, box mount, and pipe mount. This flexibility allows installation in various architectural configurations, whether on flat surfaces, corners, or specialized mounting situations commonly found in business environments.
What video compression formats does the camera support?
The camera supports H.265, H.264, MJPEG, and H.264/MPEG-4 AVC video compression. H.265 and H.264 encoding help reduce bandwidth usage and storage requirements while maintaining video quality, making the camera efficient for network-based surveillance systems.
What processor does this product use?
Wisenet XND-L6080RV 2 Megapixel Indoor Full HD Network Camera - Color, Monochrome - Dome - Ivory - 98.43 ft (30 m) Infrared Night - - (XND-L6080RV) is positioned around the listed processor configuration, giving buyers a clearer view of expected performance for business workloads and everyday deployment needs.
