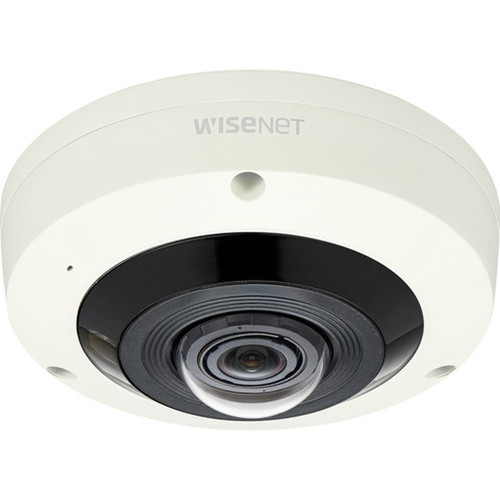

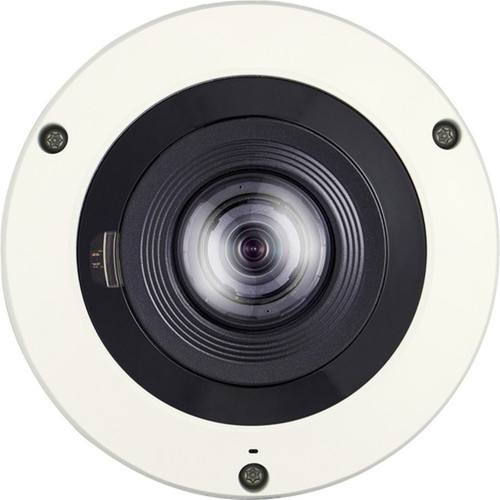

Wisenet XNF-8010RVM X Series 6MP Fisheye Network Camera - 2048 x 2048 Resolution - Indoor/Outdoor - Ivory - 49. 21 ft IR Night Vision - Vandal
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera incorporates advanced imaging technologies including Wide Dynamic Range (WDR), 2D and 3D Digital Noise Reduction (DNR), defog, and automatic white balance to maintain image clarity in challenging environments. The built-in infrared LEDs enable night vision up to 49.21 feet (15 meters), with day/night functionality that automatically adjusts to changing light conditions.
The camera's exposure control ranges from 1/12000 second to 2 seconds, allowing precise capture of fast-moving objects while minimizing motion blur. With an IP66 ingress protection rating and IK10 impact resistance, the housing withstands dust, water jets, and deliberate vandalism attempts. The 12V DC power input and wired Ethernet connectivity ensure reliable operation in permanent installations.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The XNF-8010RVM combines high-resolution imaging with exceptional durability and flexible deployment options. Its 360° fisheye coverage reduces installation complexity and hardware costs while providing complete situational awareness. The camera's intelligent features enhance surveillance effectiveness across diverse monitoring scenarios.
Comprehensive Environmental Protection
With IP66 and IK10 ratings, this camera operates reliably in harsh conditions from -40°F to 131°F (-40°C to 55°C) and withstands physical impacts, making it suitable for high-risk areas.
- IP66 waterproof/dustproof rating
- IK10 vandal resistance
- -40°F to 131°F operating range
- 90% maximum humidity tolerance
Advanced Imaging Features
Multiple enhancement technologies work together to deliver clear video regardless of lighting challenges or environmental interference.
- Wide Dynamic Range balances bright/dark areas
- 2D/3D Digital Noise Reduction
- Defog function improves visibility
- Privacy masking for sensitive areas
Deployment / Use Cases
This fisheye network camera excels in applications requiring wide-area coverage with minimal hardware. Retail stores benefit from its 360° view for loss prevention and customer behavior analysis, while educational institutions use it for corridor and common area monitoring. The indoor/outdoor capability and temperature tolerance make it equally effective for parking lots, building entrances, and industrial facilities.
Corporate offices deploy the XNF-8010RVM in lobbies, conference rooms, and open-plan workspaces where its discreet ivory color and comprehensive view support security without being obtrusive. The multiple mounting options—including wall, ceiling, pendant, pole, and corner installations—provide flexibility for both new constructions and retrofit projects. Motion detection and SD card local storage enable standalone operation or integration with larger surveillance systems.
Retail & Commercial Security
Monitor entire sales floors, stock rooms, or entryways with a single camera, reducing installation costs while maintaining complete coverage for theft prevention and safety compliance.
Industrial & Outdoor Monitoring
Withstand harsh weather conditions and potential vandalism in warehouses, loading docks, parking facilities, and perimeter security applications where traditional cameras might fail.
Physical Profile
The camera measures 5.75 inches (146 mm) in diameter and 2.59 inches (65.80 mm) in height, with a weight of approximately 1.74 pounds (790 g). Its compact fisheye form factor supports ten different mounting configurations including box, wall, tilted, pendant, in-ceiling, parapet, pole, gooseneck, corner, and backbox mounts. The ivory-colored polycarbonate housing maintains aesthetic appeal while providing the structural integrity needed for vandal-resistant applications. The board-mounted lens design ensures optical stability throughout the camera's operational life.
- Height
- 2.59" (65.80 mm)
- Weight
- 1.74 lb (790 g)
- Length
- 1.6 mm (0.06")
Highlights
- 6-megapixel CMOS sensor captures 2048x2048 resolution video at 30 fps
- 192° fisheye lens provides complete 360° coverage with no blind spots
- Infrared night vision illuminates up to 49.21 feet (15 meters) in total darkness
- IP66 waterproof/dustproof and IK10 vandal-resistant ratings for harsh environments
- Operates from -40°F to 131°F (-40°C to 55°C) for indoor/outdoor installation
- Supports H.265, H.264, and MJPEG video formats for bandwidth optimization
- Multiple mounting options including wall, ceiling, pendant, and pole installations
- SD card local storage enables standalone operation without network video recorder
- Wide Dynamic Range and digital noise reduction maintain image quality in challenging light
- 3-year limited warranty backed by Hanwha Group manufacturer support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNF-8010RVM |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XNF-8010RVM |
| Product Name | X Series 6 MP sensor 360° Mobile Fisheye |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 49.21 ft (15 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H: 192° / V: 192° / D: 192° |
| Effective Camera Resolution | 6 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MJPEG |
| Maximum Video Resolution | 2048 x 2048 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 1.6 mm (0.06") |
| Lens Included | Yes |
| Lens Mount Type | Board Mount |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | Ivory |
| Mount Type | Box Mount,Wall Mount,Tilted Mount,Pendant Mount,In-ceiling,Parapet Mount,Pole Mount,Gooseneck,Corner Mount,Backbox Mount |
| Form Factor | Fisheye |
| Durability | Vandal Resistant |
| Height | 2.59" (65.80 mm) |
| Diameter | 5.75" (146 mm) |
| Weight (Approximate) | 1.74 lb (790 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Built-in IR LED,Wide Dynamic Range,SD Card Local Storage,Day/Night,2D Digital Noise Reduction (2DNR),3D Digital Noise Reduction,Defog,Motion Detection,Privacy Masking,Gain Control,Automatic White Balance |
| Indoor/Outdoor | Indoor/Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What resolution does this Wisenet camera record at?
The XNF-8010RVM records at up to 2048 x 2048 resolution, which is approximately 6 megapixels. This high resolution provides detailed imagery that allows for digital zooming and clear identification of subjects even when viewing recorded footage. The camera maintains this resolution at 30 frames per second for smooth video playback.
How far does the night vision reach on this network camera?
The built-in infrared LEDs provide night vision illumination up to 49.21 feet (15 meters). This infrared night vision works in complete darkness and automatically activates when ambient light drops below a certain threshold. The camera includes day/night functionality that switches between color and monochrome modes for optimal image quality in all lighting conditions.
Is this camera suitable for outdoor installation?
Yes, the XNF-8010RVM is rated for both indoor and outdoor use. It features an IP66 ingress protection rating that makes it waterproof and dustproof, along with an operating temperature range of -40°F to 131°F (-40°C to 55°C). The IK10 impact resistance rating ensures it can withstand deliberate vandalism attempts, making it suitable for high-risk exterior locations.
What type of lens does this fisheye camera have?
This camera features a fixed fisheye lens with a 1.6mm focal length that provides a 192° field of view horizontally, vertically, and diagonally. The board-mounted lens design ensures optical stability, while the f/1.6 maximum aperture allows more light to reach the sensor for better low-light performance. The fisheye distortion can be corrected digitally to provide multiple virtual camera views from a single physical unit.
How is this camera powered and connected to the network?
The camera requires 12V DC power input and connects to the network via wired Ethernet (RJ-45). This wired connectivity ensures stable, high-bandwidth video transmission without wireless interference concerns. The camera supports remote management for configuration and monitoring, and includes SD card local storage capability for situations where network video recorder integration isn't immediately available.
What mounting options are available for this surveillance camera?
The XNF-8010RVM supports ten different mounting configurations: box mount, wall mount, tilted mount, pendant mount, in-ceiling, parapet mount, pole mount, gooseneck, corner mount, and backbox mount. This flexibility allows installation in virtually any location, from standard wall or ceiling positions to specialized applications like corners or poles. The comprehensive mounting system accommodates both new construction and retrofit projects.
