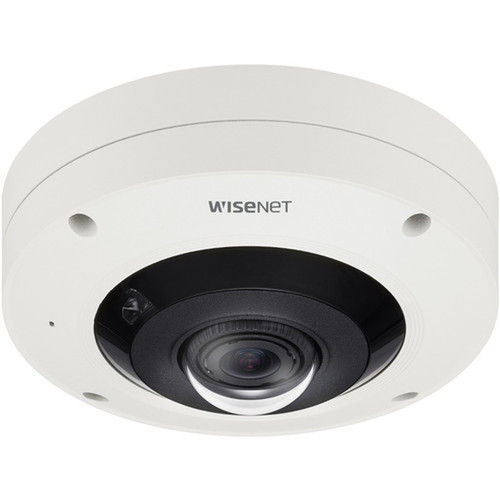

Wisenet XNF-9010RV 12MP Outdoor Fisheye Network Camera - Color - Infrared Night Vision 32. 81 ft (10 m) - H. 265/H. 264/MJPEG - 3008 x 3008 - Wall
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera utilizes a CMOS image sensor for cost-effective power consumption and high-definition video output. It features advanced imaging technologies such as back light compensation (BLC), built-in HLC (Highlight Compensation), digital noise reduction, and privacy masking to enhance video clarity and security. The camera supports remote management via its wired network connection, allowing for centralized control and monitoring.
The lens system includes a fixed focal length of 1.1 mm with a maximum aperture of f/2.2, optimized for wide-area coverage. Exposure control ranges from a shortest shutter speed of 1/12000 second to a longest of 1/5 second, adapting to varying light conditions. Storage is facilitated through a memory card slot, and the camera is compatible with NTSC and PAL video signal formats, including analog CVBS output.
Key Product Advantages
The Wisenet XNF-9010RV stands out with its combination of high-resolution imaging, wide-area coverage, and rugged outdoor durability. Its fisheye lens design eliminates the need for multiple cameras in some applications, reducing installation complexity and cost while providing seamless 187-degree views.
Enhanced Night Vision
Infrared illumination enables clear monitoring up to 32.81 feet in total darkness, ensuring 24/7 security coverage without additional lighting.
- Infrared type for low-light performance
- 10-meter effective distance
- Integrated into camera housing
Robust Environmental Protection
Rated IP66 for dust and water resistance, along with an IK10 impact protection rating, this camera withstands harsh outdoor conditions and potential vandalism.
- IP66 ingress protection
- IK10 impact resistance
- Operates in -40°F to 140°F temperatures
Deployment / Use Cases
Ideal for commercial and industrial surveillance, the Wisenet XNF-9010RV is well-suited for applications requiring extensive area monitoring with minimal camera units. Its outdoor rating and wide field of view make it effective for securing large open spaces where detail and coverage are critical.
Common use cases include perimeter security for warehouses, monitoring of parking lots and garages, oversight of retail store entrances, and surveillance in transportation hubs. The camera's PoE support simplifies installation by allowing power and data over a single Ethernet cable, reducing wiring costs in expansive setups.
Perimeter and Area Surveillance
Deploy this fisheye camera to cover broad outdoor areas like yards, loading docks, or building exteriors, capturing comprehensive views that reduce blind spots.
High-Traffic Monitoring
Use in locations with frequent movement, such as entrances or parking areas, where its 30 fps recording and motion detection provide detailed real-time footage.
Physical Profile
The camera features a compact fisheye form factor with a diameter of 6.30 inches (160 mm) and a weight of 2.43 pounds (1102.23 g), designed for discreet wall mounting. Its white color blends with many architectural styles, and the included fixed lens is pre-configured for optimal wide-angle coverage. The sturdy construction supports reliable performance in outdoor environments, with mounting hardware typically required for installation.
- Weight
- 2.43 lb (1102.23 g)
- Length
- 1.1 mm (0.04")
Highlights
- 12-megapixel resolution for detailed surveillance imaging
- Infrared night vision up to 32.81 ft (10 m) for 24/7 monitoring
- 187-degree fisheye field of view for wide-area coverage
- H.265, H.264, and MJPEG video formats for efficient recording
- 3008 x 3008 maximum resolution at 30 frames per second
- IP66 and IK10 ratings for outdoor durability and impact resistance
- Power over Ethernet (PoE) support for simplified installation
- CMOS sensor with features like BLC and digital noise reduction
- Remote management capability for centralized control
- 3-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNF-9010RV |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XNF-9010RV |
| Product Name | 12MP IR Fisheye Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 32.81 ft (10 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H: 187° / V: 187° / D: 187° |
| Effective Camera Resolution | 12 Megapixel |
| Video | |
| Video Formats | H.264,H.265,MJPEG |
| Maximum Video Resolution | 3008 x 3008 |
| Maximum Frame Rate | 30 fps |
| Video Signal Format | NTSC,PAL |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 1.1 mm (0.04") |
| Lens Included | Yes |
| Maximum Aperture | f/2.2 |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Wall Mount |
| Form Factor | Fisheye |
| Diameter | 6.30" (160 mm) |
| Weight (Approximate) | 2.43 lb (1102.23 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Day/Night,Back Light Compensation (BLC),Built-in HLC,Digital Noise Reduction,Motion Detection,Privacy Masking |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the resolution of the Wisenet XNF-9010RV camera?
The camera offers a 12-megapixel effective resolution with a maximum video resolution of 3008 x 3008 pixels. This high resolution ensures clear, detailed footage suitable for identifying faces, license plates, or other critical details in surveillance applications, supporting real-time monitoring at 30 frames per second.
How far does the night vision reach on this camera?
The infrared night vision provides clear imaging up to 32.81 feet (10 meters) in complete darkness. This allows for continuous monitoring during nighttime or low-light conditions without requiring external lighting, making it ideal for outdoor security where visibility is essential around the clock.
What is the field of view for this fisheye camera?
The camera features a 187-degree field of view horizontally, vertically, and diagonally. This wide-angle coverage enables panoramic surveillance from a single installation point, reducing the need for multiple cameras and providing comprehensive area monitoring with minimal blind spots.
Is this camera suitable for outdoor use?
Yes, the Wisenet XNF-9010RV is designed for outdoor deployment with an IP66 rating for dust and water resistance and an IK10 impact protection rating. It operates in temperatures from -40°F to 140°F (-40°C to 60°C) and up to 95% humidity, ensuring reliable performance in harsh weather conditions.
What power options does this network camera support?
The camera supports both 12 V DC power and Power over Ethernet (PoE). PoE allows for power and data transmission over a single Ethernet cable, simplifying installation and reducing wiring costs, especially in remote or hard-to-reach locations where electrical outlets may be limited.
What video formats are compatible with this camera?
It supports H.264, H.265, and MJPEG video formats. H.265 offers efficient compression for reduced bandwidth and storage needs, while H.264 ensures broad compatibility with existing systems. MJPEG provides high-quality still images, giving flexibility for various recording and streaming requirements.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
