Wisenet XNF-9010RV/KAP 12MP Outdoor Fisheye Network Camera - White - 187° FOV - 10m IR Night Vision - H. 265 - IP66/IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a 1/2.3" CMOS image sensor to produce 12-megapixel video at a maximum resolution of 3584 x 1792 and 30 frames per second. It supports triple codec streaming with H.265, H.264, and MJPEG formats, enhanced by WiseStream II compression technology for efficient bandwidth management.
Advanced imaging features include extreme 120dB Wide Dynamic Range (WDR) at 30fps, digital noise reduction, and backlight compensation to maintain clarity in challenging lighting. The fixed 1.1mm lens with f/2.2 aperture provides consistent focus across the entire fisheye view.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The XNF-9010RV/KAP stands out with its integrated dewarping capabilities, allowing for multiple virtual channel views such as fisheye, single panorama, double panorama, and quad view without external processing. This on-board functionality simplifies system integration and reduces recorder load.
Intelligent Night Vision
Built-in infrared LEDs provide illumination up to 10 meters (32.81 ft), with Wise IR multi-zone management for optimized coverage and reduced hotspots in low-light conditions.
- Infrared night vision
- 10m effective range
- Multi-zone IR management
Advanced Analytics
The camera supports a suite of video analytics including loitering detection, directional detection, fog detection, tampering alerts, and motion detection with object enter/exit zoning for proactive security monitoring.
- Motion detection
- Tampering alerts
- Directional detection
Installation Flexibility
Dual power options via Power over Ethernet (PoE) or 12V DC input, combined with a direct-connect shielded RJ45 connector and analog video output, streamline deployment in new or existing infrastructure.
- PoE or 12VDC power
- Direct-connect RJ45
- Analog video output
Deployment / Use Cases
This fisheye camera is ideal for environments requiring wide-area surveillance with minimal camera count, such as retail stores, warehouses, parking lots, and building perimeters. Its 360° coverage eliminates blind spots and reduces the need for multiple fixed-lens cameras.
The outdoor-rated construction and advanced analytics make it suitable for perimeter security, crowd monitoring, and traffic observation in public spaces, transportation hubs, and industrial facilities where environmental durability and intelligent detection are critical.
Retail & Commercial Surveillance
Monitor entire store floors, entryways, and stock rooms with a single camera, utilizing dewarped views for detailed observation of customer traffic and point-of-sale areas.
Industrial & Perimeter Security
Deploy in manufacturing plants, warehouses, or outdoor compounds to provide comprehensive coverage of large open areas, with tampering detection and robust housing for harsh conditions.
Physical Profile

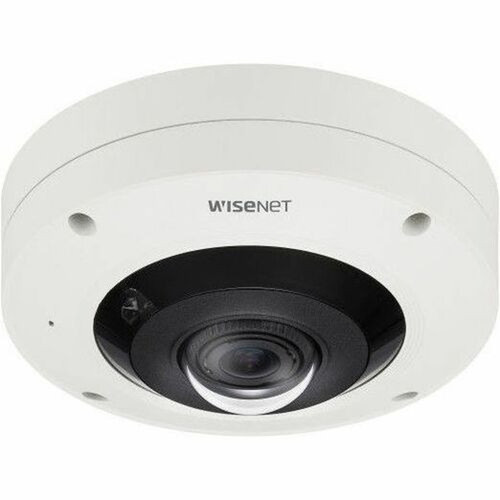

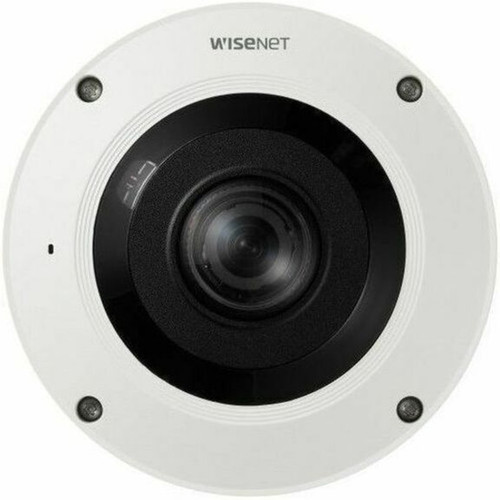

The camera features a compact fisheye dome design with a 6.30" (160 mm) diameter and white finish for aesthetic blending in commercial installations. The hanging mount supports secure ceiling or overhang attachment, and the hard-coated dome cover enhances durability against physical impacts and environmental wear.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.43 lb (1100 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 2.43 lb (1100 g)
- Length
- 1.1 mm (0.04")
Highlights
- 12-megapixel CMOS sensor for high-resolution imaging
- 187° field of view in all directions for 360° coverage
- Infrared night vision effective up to 10 meters (32.81 ft)
- H.265, H.264, and MJPEG triple codec support
- On-board dewarping with multiple virtual channel views
- Extreme 120dB WDR at 30fps for challenging lighting
- IP66 and IK10 ratings for outdoor durability
- Power over Ethernet (PoE) and 12V DC input options
- Advanced analytics: motion detection, tampering alerts, directional detection
- TAA compliant and backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNF-9010RV/KAP |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XNF-9010RV |
| Product Name | X series 12 MP sensor 360° Outdoor Fisheye |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 32.81 ft (10 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.3" |
| Color Supported | Color |
| Field of View | H: 187° / V: 187° / D: 187° |
| Effective Camera Resolution | 12 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MJPEG,H.265M,H.265H,H.264M,H.264H,H.265B,H.264B |
| Maximum Video Resolution | 3584 x 1792 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 1.1 mm (0.04") |
| Lens Included | Yes |
| Maximum Aperture | f/2.2 |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | IPv4,IPv6,TCP/IP,UDP/IP,RTP/UDP,RTP/TCP,RTCP,RTSP,NTP,HTTP,HTTPS,SSL/TLS,DHCP,FTP,SMTP,ICMP,IGMP,SNMPv1/v2c/v3 (MIB2),ARP,DNS,DDNS,QoS,UPnP,Bonjour,LLDP,SRTP,ONVIF,SSL |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Hanging Mount |
| Form Factor | Fisheye |
| Diameter | 6.30" (160 mm) |
| Weight (Approximate) | 2.43 lb (1100 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Wide Dynamic Range,Day/Night,Back Light Compensation (BLC),Digital Noise Reduction,Digital Image Stabilization,Motion Detection,Privacy Masking,Gain Control,White Balance,Audio Detection |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Country of Origin | Korea |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the resolution and field of view of this camera?
The Wisenet XNF-9010RV/KAP features a 12-megapixel effective resolution with a maximum video resolution of 3584 x 1792 at 30fps. It provides a 187° field of view horizontally, vertically, and diagonally, delivering full 360° fisheye coverage for comprehensive area monitoring.
How does the night vision perform and what is its range?
This camera includes built-in infrared LEDs for night vision, effective up to 10 meters (32.81 ft). It utilizes Wise IR multi-zone management to optimize illumination and reduce hotspots, ensuring clear monochrome imaging in low-light or no-light conditions for 24/7 surveillance.
What video compression formats does the camera support?
It supports triple codec streaming with H.265, H.264, and MJPEG formats, including variants like H.265M, H.264H, and others. WiseStream II compression technology is integrated to efficiently manage bandwidth while maintaining high video quality, reducing storage and network requirements.
Is this camera suitable for outdoor installation?
Yes, the camera is designed for outdoor use with an IP66 ingress protection rating against dust and water jets, and an IK10 impact resistance rating. It operates in temperatures from -40°F to 140°F (-40°C to 60°C) and up to 95% humidity, making it durable for harsh environmental conditions.
What power options are available for this camera?
The camera offers dual power input options: Power over Ethernet (PoE) via the network cable or 12V DC direct input. This flexibility allows deployment in both new PoE-enabled installations and existing setups with traditional power supplies, simplifying integration.
What advanced features does this camera include for security monitoring?
It includes on-board dewarping for multiple view modes (fisheye, panorama, quad view), extreme 120dB Wide Dynamic Range, and intelligent analytics such as motion detection, tampering alerts, loitering detection, directional detection, and fog detection. These features enable proactive monitoring and reduce false alarms.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
