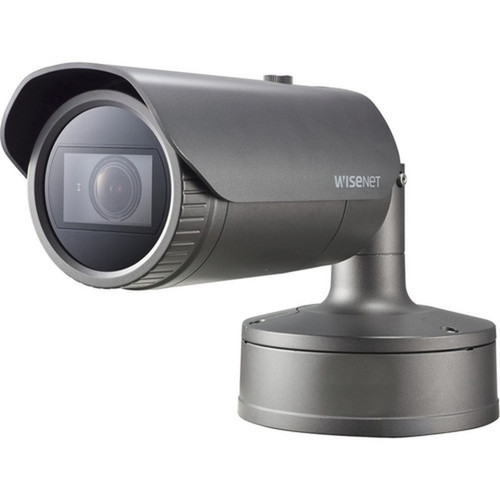

Wisenet XNO-8080R 5MP Network IR Bullet Camera - Dark Gray - 164 ft (50 m) Infrared Night Vision - H. 265/H. 264 - Varifocal Lens - Vandal Resistant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the XNO-8080R is a 5-megapixel CMOS image sensor that balances performance with power efficiency. The camera records in H.265, H.264 (MPEG-4 Part 10/AVC), and MJPEG formats, providing flexibility for different recording and streaming requirements. A fast 1/12000-second shutter speed helps capture clear images of fast-moving objects, while features like Wide Dynamic Range (WDR) and Back Light Compensation (BLC) maintain image quality in challenging lighting conditions.
Network connectivity is provided through a standard RJ-45 port, supporting Power over Ethernet (PoE) for simplified installation. The camera also accepts 12V DC or 24V AC power, offering deployment versatility. Onboard storage is supported via a memory card slot, and the system includes comprehensive remote management capabilities for integration into larger security systems.
Key Product Advantages
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Advanced Imaging Features, Flexible Power Options.
Advanced Imaging Features
Includes Digital Noise Reduction, Defog, Privacy Masking, and Automatic White Balance to ensure video clarity and compliance in various surveillance scenarios.
- Motion Detection
- Highlight Compensation (HLC)
- Day/Night operation
Flexible Power Options
Supports Power over Ethernet (PoE), 12V DC, or 24V AC, allowing installation in locations with or without existing PoE network switches.
Deployment / Use Cases
The XNO-8080R is ideally suited for perimeter security, parking lots, building exteriors, and industrial sites where high-resolution identification and reliable outdoor performance are critical. Its pole-mount form factor and extended infrared range make it effective for monitoring large open areas during all hours and in various weather conditions.
Businesses can deploy this camera as a standalone unit with local memory card storage or integrate it into a larger Wisenet or ONVIF-compatible network video recorder (NVR) system. The varifocal lens allows installers to adjust the field of view on-site without changing hardware, reducing installation time and cost for projects covering multiple zones with different monitoring needs.
Commercial & Industrial Security
Monitor loading docks, warehouse perimeters, and facility entrances with clear 5MP detail and vandal-resistant construction.
Critical Infrastructure Monitoring
Deploy in utility substations, transportation hubs, or remote sites where the wide operating temperature range (-40°F to 131°F) ensures continuous operation.
Physical Profile
The camera features a dark gray bullet-style housing measuring 15.22 inches in height and 3.58 inches in diameter, with a weight of approximately 4.81 pounds. Its pole-mount design facilitates installation on walls, posts, or ceilings, and the integrated varifocal lens is board-mounted for stability. The compact yet robust form factor is engineered to blend into professional security installations while providing the durability needed for exposed locations.
- Height
- 15.22" (386.60 mm)
- Weight
- 4.81 lb (2180 g)
- Length
- 3.7 mm (0.15")
Highlights
- 5-megapixel resolution for detailed identification
- 164 ft (50 m) infrared night vision with built-in IR LEDs
- Vandal-resistant IK10 and weatherproof IP66/IP67 rated housing
- Varifocal lens (3.7mm to 9.4mm) for adjustable field of view
- H.265 and H.264 video compression for efficient storage
- Power over Ethernet (PoE), 12V DC, and 24V AC power options
- Wide operating temperature range: -40°F to 131°F (-40°C to 55°C)
- Includes motion detection, privacy masking, and WDR features
- Remote management capable for system integration
- 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNO-8080R |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XNO-8080R |
| Product Name | 5MP Network IR Bullet Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 164.04 ft (50 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H : 100.2° ~ 38.7°/ V : 72.7° ~ 29.0° / D : 132.0° ~ 48.6° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.265,H.264 (MPEG-4 Part 10/AVC),MJPEG |
| Maximum Video Resolution | 2560 x 1920 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.7 mm (0.15") |
| Maximum Focal Length | 9.4 mm (0.37") |
| Lens Included | Yes |
| Lens Mount Type | Board Mount |
| Maximum Aperture | f/1.2 |
| Optical Zoom | 2.5x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC,24 V AC |
| Power Source Type | DC,AC,PoE |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Dark Gray |
| Mount Type | Pole Mount |
| Form Factor | Bullet |
| Durability | Vandal Resistant |
| Height | 15.22" (386.60 mm) |
| Diameter | 3.58" (91 mm) |
| Weight (Approximate) | 4.81 lb (2180 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Day/Night,Wide Dynamic Range,Motion Detection,Built-in IR LED,Digital Noise Reduction,Defog,Privacy Masking,Automatic White Balance,Ingress Protection,Back Light Compensation (BLC),Highlight Compensation (HLC) |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum resolution and frame rate of the Wisenet XNO-8080R?
The camera captures video at a maximum resolution of 2560 x 1920 pixels, which is 5 megapixels. It records at up to 30 frames per second at this resolution, providing smooth, detailed footage suitable for identifying people, vehicles, and other objects in surveillance applications.
How far does the night vision reach, and what type is it?
The built-in infrared LEDs provide clear monochrome night vision up to 164.04 feet (50 meters). This infrared illumination allows the camera to capture usable video in complete darkness, making it effective for 24/7 outdoor security monitoring.
What power options does this network camera support?
The XNO-8080R offers flexible power input: it supports Power over Ethernet (PoE) for single-cable installation, or it can be powered directly by 12V DC or 24V AC sources. This versatility allows deployment in locations with or without PoE network infrastructure.
Is the camera suitable for outdoor use in harsh weather?
Yes, the camera is built for outdoor durability. It carries an IP66 rating for protection against powerful water jets and dust, and an IP67 rating for temporary immersion. Combined with its IK10 impact resistance and operating temperature range of -40°F to 131°F, it is designed to withstand challenging environmental conditions.
What type of lens does the camera have, and is it adjustable?
This model includes a varifocal lens with a focal length range from 3.7 mm to 9.4 mm, providing a 2.5x optical zoom. The field of view is adjustable from a wide 100.2 degrees down to a narrow 38.7 degrees horizontally, allowing installers to frame the scene precisely during setup without changing hardware.
What video compression formats are supported?
The camera supports H.265, H.264 (MPEG-4 Part 10/AVC), and MJPEG video formats. H.265 and H.264 are modern compression standards that significantly reduce bandwidth and storage requirements while maintaining high video quality, making them ideal for network surveillance systems.
What processor does this product use?
Wisenet XNO-8080R 5 Megapixel Network Camera - Color - Bullet - Dark Gray - 164.04 ft (50 m) Infrared Night Vision - H.265, H.264 Part (XNO-8080R) is positioned around the listed processor configuration, giving buyers a clearer view of expected performance for business workloads and everyday deployment needs.
