Wisenet XNO-9082R Outdoor 4K Network Camera - Color Bullet with 131 ft Infrared Night Vision - 3x Optical Zoom - IP66/67 - PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a CMOS image sensor that supports color video capture with a maximum frame rate of 30 frames per second. The lens offers a focal length range from 2.8 mm to 8.4 mm, providing a field of view that adjusts from 114° wide to 40.2° telephoto horizontally. Video compression formats include H.265, H.264, and MJPEG, optimizing bandwidth usage and storage efficiency without compromising quality.
The camera features advanced imaging technologies such as back light compensation (BLC) and day/night functionality to enhance performance in challenging light conditions. Local storage is supported via memory card, and remote management capabilities allow for centralized control and monitoring. The unit operates within a wide temperature range from -58°F to 140°F (-50°C to 60°C) and handles up to 95% humidity, making it suitable for extreme environments.
Key Product Advantages
The XNO-9082R combines high-resolution imaging with durable outdoor construction to meet the needs of commercial and industrial surveillance applications. Its 4K resolution ensures that fine details are captured clearly, which is critical for forensic review and real-time monitoring. The infrared night vision extends effective coverage into low-light conditions, maintaining security around the clock.
Robust Environmental Protection
With IP66 and IP67 ingress protection ratings plus an IK10 impact resistance rating, this camera withstands dust, water jets, temporary immersion, and physical impacts, ensuring longevity in outdoor installations.
- IP66/67 Rated
- IK10 Impact Protection
- Wide Temperature Range
Flexible Power and Installation
Support for AC, DC, and PoE power inputs provides installation flexibility, while the pole mount design and bullet form factor facilitate secure mounting in various outdoor locations.
- PoE Support
- Pole Mount
- Multiple Voltage Inputs
Deployment / Use Cases
This camera is ideal for perimeter security, parking lots, building exteriors, and other outdoor areas where high-definition monitoring and weather resistance are required. Its 4K resolution makes it suitable for applications where detail is paramount, such as license plate recognition or facial identification at entry points.
The combination of infrared night vision and wide operating temperature range allows for deployment in environments with limited lighting and extreme weather, from cold storage facilities to sunny industrial sites. Integration into existing network video recorder (NVR) systems is straightforward, supporting scalable surveillance solutions for businesses, campuses, and public spaces.
Perimeter and Access Control
Deploy along fences, gates, or building entrances to monitor activity with clear 4K detail, utilizing the zoom capability to focus on specific areas of interest.
24/7 Outdoor Surveillance
Use in locations requiring continuous monitoring, leveraging the infrared night vision and weatherproof design to maintain coverage day and night in all conditions.
Physical Profile

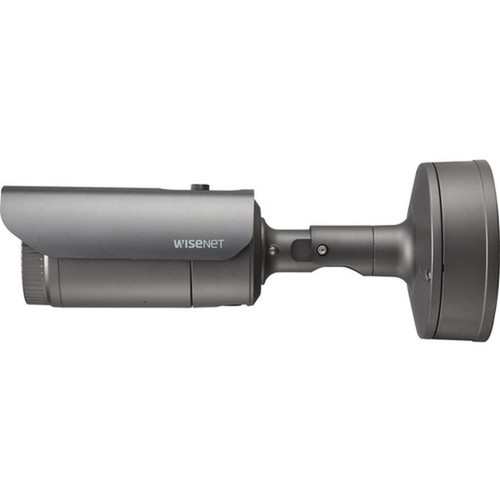

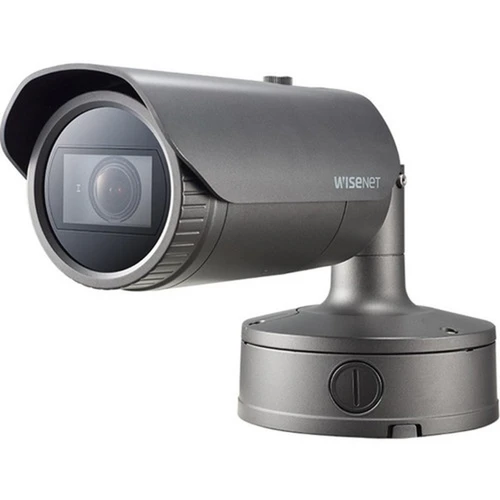

The camera features a dark gray bullet-style housing measuring 14.51 inches in height and 3.58 inches in diameter, with a weight of approximately 4.85 pounds. This compact and sturdy design is optimized for pole mounting, providing a low-profile yet durable presence in outdoor settings. The finish and construction contribute to its resistance against environmental factors and physical tampering.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 14.51" (368.60 mm), 3.58" (91 mm), 4.85 lb (2200 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.58" (91 mm)
- Height
- 14.51" (368.60 mm)
- Weight
- 4.85 lb (2200 g)
- Length
- 2.8 mm (0.11")
Highlights
- 4K Ultra HD resolution at 3840 x 2160 for exceptional detail
- Infrared night vision effective up to 131.23 feet (40 meters)
- 3x optical zoom lens with adjustable focal length
- IP66 and IP67 ratings for dust and water resistance
- Supports Power over Ethernet (PoE) for simplified wiring
- Wide operating temperature range from -58°F to 140°F
- Built-in SD card slot for local storage
- H.265 and H.264 video compression for efficient bandwidth use
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNO-9082R |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XNO-9082R |
| Product Name | 4K Network IR Bullet Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 4K |
| Night Vision | Yes |
| Night Vision Distance | 131.23 ft (40 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H: 114°(Wide)~40.2°(Tele) V: 62.0°(Wide)~22.5°(Tele) D: 133.0°(Wide)~46.3°(Tele) |
| Video | |
| Video Formats | H.265,H.264,MJPEG |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Zoom |
| Minimum Focal Length | 2.8 mm (0.11") |
| Maximum Focal Length | 8.4 mm (0.33") |
| Lens Included | Yes |
| Minimum Aperture | f/1.2 |
| Maximum Aperture | f/2.8 |
| Optical Zoom | 3x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC,24 V AC |
| Power Source Type | AC,DC,PoE |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Dark Gray |
| Mount Type | Pole Mount |
| Form Factor | Bullet |
| Height | 14.51" (368.60 mm) |
| Width | 3.58" (91 mm) |
| Diameter | 3.58" (91 mm) |
| Weight (Approximate) | 4.85 lb (2200 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -58°F (-50°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | SD Card Local Storage,Built-in IR LED,Wide Dynamic Range,Back Light Compensation (BLC),Day/Night |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum video resolution of the Wisenet XNO-9082R camera?
The camera supports a maximum video resolution of 3840 x 2160, which is 4K Ultra HD. This high resolution provides detailed imagery suitable for identifying objects, people, and license plates at a distance, enhancing the effectiveness of surveillance systems.
How far does the night vision reach on this camera?
The built-in infrared LEDs provide night vision up to 131.23 feet (40 meters). This allows the camera to capture clear monochrome video in complete darkness, ensuring continuous monitoring capabilities during nighttime hours.
What power options are available for this network camera?
The camera accepts multiple power sources: 12 V DC, 24 V AC, and Power over Ethernet (PoE). PoE support simplifies installation by allowing power and data to be delivered over a single Ethernet cable, reducing wiring complexity and costs.
Is this camera suitable for outdoor use in harsh weather?
Yes, with IP66 and IP67 ingress protection ratings, the camera is dust-tight and protected against powerful water jets and temporary immersion. It also operates in temperatures from -58°F to 140°F (-50°C to 60°C), making it durable for outdoor environments.
Does the camera include optical zoom capability?
Yes, it features a 3x optical zoom lens with a focal length range from 2.8 mm to 8.4 mm. This allows you to adjust the field of view remotely, zooming in on specific areas without losing image quality, which is useful for focusing on details in surveillance scenes.
What video compression formats does the camera support?
It supports H.265, H.264, and MJPEG formats. H.265 offers efficient compression for reduced bandwidth and storage needs, while H.264 ensures compatibility with most recording systems. MJPEG provides still image capture options.
What processor does this product use?
Wisenet XNO-9082R Outdoor 4K Network Camera - Color - Bullet - Dark Gray - 131.23 ft (40 m) Infrared Night Vision - H.265, H.264, - x (XNO-9082R) is positioned around the listed processor configuration, giving buyers a clearer view of expected performance for business workloads and everyday deployment needs.
