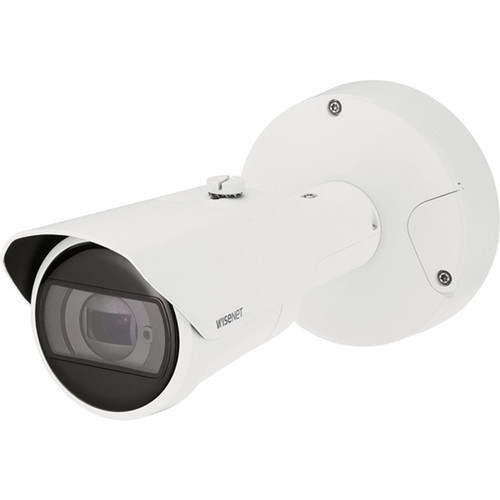

Wisenet XNO-C6083R 2MP AI IR Bullet Camera - Full HD 1920 x 1080 - 60 fps - 131. 23 ft Infrared Night Vision - Varifocal Lens - IP66/IP67 - IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the XNO-C6083R is a high-sensitivity CMOS sensor that delivers 2-megapixel resolution with efficient power consumption. The camera supports modern video compression formats including H.265, H.264, and Motion JPEG, optimizing bandwidth and storage usage without compromising image quality. Its varifocal lens ranges from 2.8 mm to 12 mm, offering a 4.3x optical zoom and adjustable field of view from 119.5° wide to 27.9° telephoto horizontally.
For low-light performance, the integrated infrared LEDs provide clear night vision up to 131.23 feet (40 meters), with automatic day/night switching. Exposure control is precise, with shutter speeds from 1/12000 second to 2 seconds, and features like Back Light Compensation and Highlight Compensation adapt to backlit or high-contrast scenes.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The XNO-C6083R combines high-resolution video, extended night vision, and rugged construction to deliver reliable surveillance in diverse settings. Its AI-enhanced features like motion detection, audio detection, and tamper detection provide proactive security alerts, reducing false alarms and enhancing monitoring efficiency.
Advanced Video Intelligence
Supports H.265 and H.264 compression for efficient bandwidth use, with Motion JPEG for compatibility. Features include digital image stabilization, defog, and privacy masking to ensure usable footage in various conditions.
- Motion Detection
- Audio Detection
- Tamper Detection
- Privacy Masking
Durable Outdoor Design
Rated IP66/IP67 for dust and water resistance, and IK10 for impact protection, making it suitable for harsh environments. The white finish blends with exteriors while maintaining a professional appearance.
- IP66/IP67 Rated
- IK10 Impact Protection
- White Color
- Bullet Form Factor
Deployment / Use Cases
This camera is ideal for perimeter security, parking lots, building entrances, and industrial sites where clear, continuous monitoring is essential. Its long-range infrared night vision and wide temperature tolerance make it effective in outdoor applications across seasons, from freezing winters to hot summers.
For retail or commercial settings, the varifocal lens allows customization of the field of view to cover cash registers, aisles, or storage areas. The wired connectivity and remote management capabilities enable integration into existing network video recorder (NVR) systems, supporting scalable surveillance deployments.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile

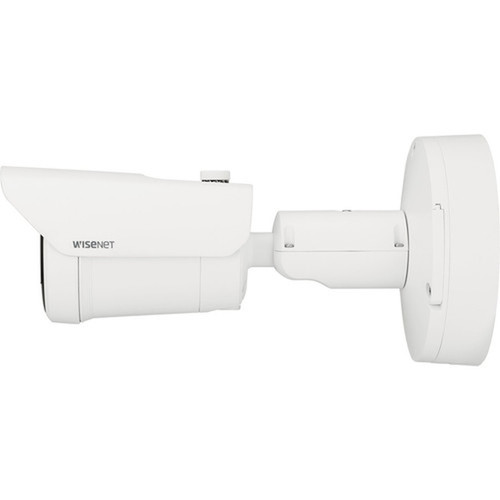

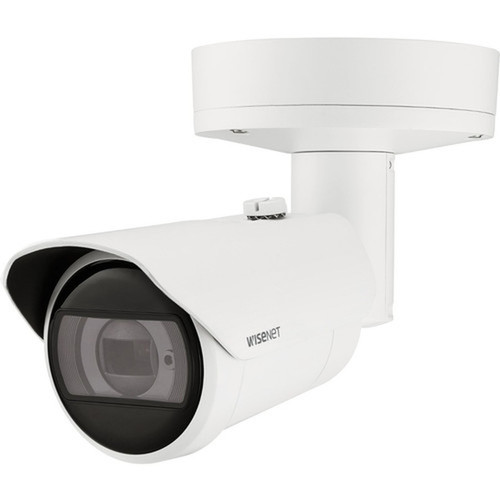

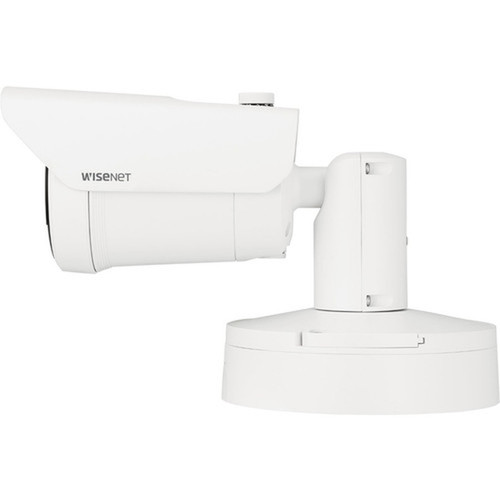

The XNO-C6083R features a compact bullet design with a diameter of 3.68 inches (93.40 mm) and a weight of approximately 3.62 pounds (1640 grams). Its white color and streamlined shape facilitate easy mounting on walls, ceilings, or poles, while the robust construction ensures stability in windy or exposed locations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.62 lb (1640 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 3.62 lb (1640 g)
- Length
- 2.8 mm (0.11")
Highlights
- 2MP Full HD resolution at 1920x1080 with 60 fps for smooth, detailed video
- 131.23 ft (40 m) infrared night vision for clear low-light surveillance
- Varifocal lens with 4.3x optical zoom and adjustable field of view
- IP66/IP67 and IK10 ratings for dust, water, and impact resistance
- Supports H.265, H.264, and Motion JPEG video compression formats
- Advanced features: motion detection, audio detection, tamper detection, privacy masking
- Wide operating temperature range from -40°F to 131°F (-40°C to 55°C)
- Wired connectivity with remote management for easy network integration
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNO-C6083R |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XNO-C6083R |
| Product Name | 2MP AI IR Bullet Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 131.23 ft (40 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H : 119.5°(Wide) ~ 27.9°(Tele) V : 62.8°(Wide) ~ 15.7°(Tele) D : 142.1°(Wide) ~ 32.0°(Tele) |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265,H.264,Motion JPEG,H.265M,H.265H,H.264M,H.264H |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 2.8 mm (0.11") |
| Maximum Focal Length | 12 mm (0.47") |
| Lens Included | Yes |
| Minimum Aperture | f/3.6 |
| Maximum Aperture | f/1.4 |
| Optical Zoom | 4.3x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Form Factor | Bullet |
| Diameter | 3.68" (93.40 mm) |
| Weight (Approximate) | 3.62 lb (1640 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Motion Detection,Tamper Detection,SD Card Local Storage,Day/Night,Back Light Compensation (BLC),Wide Dynamic Range,Digital Noise Reduction,Privacy Masking,Gain Control,Automatic White Balance,Audio Detection,Shock Detection,Highlight Compensation (HLC),Digital Image Stabilization,Defog |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
User Manual
FAQ
What is the resolution and frame rate of the Wisenet XNO-C6083R camera?
The camera delivers 2-megapixel Full HD video at a maximum resolution of 1920 x 1080 and a frame rate of 60 frames per second. This ensures high-definition footage with smooth motion capture, suitable for detailed surveillance and real-time monitoring applications.
How far does the night vision reach on this camera?
The infrared night vision provides clear imaging up to 131.23 feet (40 meters) in complete darkness. This extended range allows for reliable outdoor monitoring during nighttime hours, with automatic switching between day and night modes based on lighting conditions.
What type of lens does the XNO-C6083R have, and is it adjustable?
It features a varifocal lens with a focal length range from 2.8 mm to 12 mm, offering 4.3x optical zoom. This allows you to adjust the field of view from a wide 119.5° angle to a narrower 27.9° telephoto perspective, providing flexibility during installation to cover specific areas without moving the camera.
Is this camera suitable for outdoor use in harsh weather?
Yes, the XNO-C6083R is built for outdoor durability with IP66/IP67 ingress protection ratings, making it resistant to dust and water jets. It also has an IK10 impact protection rating to withstand physical vandalism. The operating temperature range from -40°F to 131°F ensures performance in extreme cold or heat.
What video compression formats are supported?
The camera supports H.265, H.264, and Motion JPEG formats, including variants like H.265M and H.264H. H.265 offers efficient bandwidth and storage usage, while H.264 ensures compatibility with older systems. Motion JPEG provides high-quality still images for detailed analysis.
Does the camera include advanced security features?
Yes, it includes multiple AI-enhanced features such as motion detection, audio detection, tamper detection, and privacy masking. These tools help reduce false alarms, provide proactive alerts, and ensure privacy by blocking specific areas in the video feed, enhancing overall surveillance effectiveness.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
