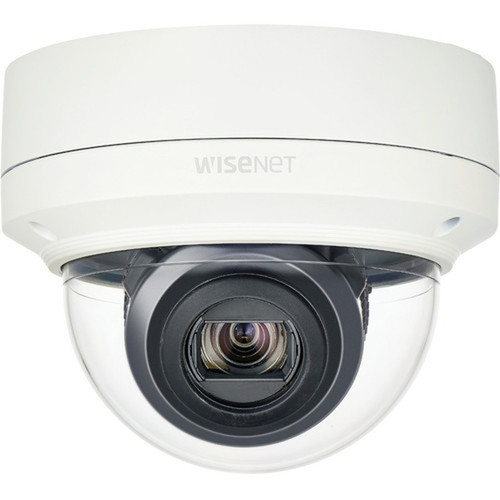

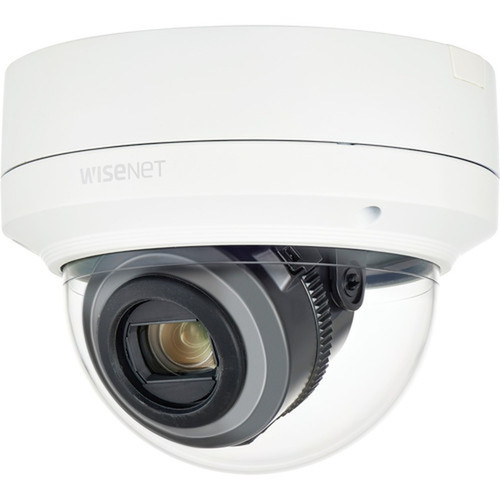

Wisenet XNV-6120 2MP Outdoor Network Dome Camera - 12x Optical Zoom - Full HD 1080p - H. 265/H. 264 - Vandal-Resistant - IP66/IP67 - Ivory
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures 2-megapixel resolution video at 1920 x 1080 with a maximum frame rate of 60 fps, ensuring smooth, detailed surveillance footage. It supports H.265, H.264 (MPEG-4 Part 10/AVC), and MJPEG video formats, allowing compatibility with various network video recorders and management systems. The varifocal lens provides a 5.2 mm to 62.4 mm focal length range with an f/1.6 to f/3 aperture for adjustable depth of field and low-light performance.
Network connectivity is wired via RJ-45 with remote management capability, while local storage is supported through a memory card slot. Power input accepts 12 V DC or 24 V AC, offering flexibility for different electrical setups. The camera includes an extensive feature set such as day/night operation, audio detection, motion detection, privacy masking, and face detection for comprehensive security monitoring.
Key Product Advantages
The XNV-6120 combines high-resolution imaging with rugged construction for reliable outdoor surveillance. Its 12x optical zoom allows operators to closely monitor distant areas without sacrificing image quality, while the vandal-resistant dome deters tampering in public or high-traffic locations.
Superior Image Quality
Full HD 1080p resolution at 60 fps delivers crisp, real-time video with H.265 compression reducing bandwidth demands by up to 50% compared to H.264.
- 2-megapixel CMOS sensor
- Wide dynamic range for high-contrast scenes
- 2D/3D digital noise reduction
Extreme Environment Ready
Rated IP66/IP67 for dust and water resistance and operational from -40°F to 131°F, this camera performs reliably in rain, snow, and temperature extremes.
- IK10 impact resistance
- 90% maximum humidity tolerance
- Automatic defog function
Deployment / Use Cases
This camera is ideal for perimeter security, parking lots, building entrances, and industrial sites where detailed monitoring and vandal resistance are critical. Its outdoor rating and versatile mounting options make it suitable for flush, wall, pole, ceiling, pipe, or box installations.
Commercial applications include retail stores, warehouses, schools, and government facilities requiring high-definition surveillance with remote management capabilities. The audio detection and alarm triggering features enhance security systems by providing additional event-based monitoring layers.
Perimeter & Entry Monitoring
Use the 12x zoom to identify individuals and vehicles at gatehouses or building approaches, with vandal resistance protecting against deliberate damage.
- Wide to telephoto field adjustment
- Face detection capability
- Enter/exit detector
Harsh Environment Surveillance
Deploy in coastal, industrial, or extreme climate areas where salt, dust, moisture, or temperature fluctuations would degrade lesser cameras.
- IP66/IP67 sealed housing
- -40°F cold weather operation
- Corrosion-resistant materials
Physical Profile
The dome measures 5.06 inches in height and 6.30 inches in diameter, with a weight of approximately 2.17 pounds. Its ivory color blends with light-colored exteriors, while the dome form factor provides a low-profile appearance. Multiple mounting types including flush, wall, pole, ceiling, pipe, and box mounts offer installation flexibility for various architectural surfaces.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 5.06" (128.45 mm), 2.17 lb (985 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 5.06" (128.45 mm)
- Weight
- 2.17 lb (985 g)
- Length
- 5.2 mm (0.20")
Highlights
- 2-megapixel Full HD 1080p resolution at 60 fps for detailed surveillance
- 12x optical zoom varifocal lens with 5.2 mm to 62.4 mm focal range
- IK10 vandal-resistant and IP66/IP67 weatherproof dome housing
- H.265 and H.264 video compression for efficient bandwidth and storage
- Operates from -40°F to 131°F (-40°C to 55°C) in outdoor environments
- Wired RJ-45 connectivity with remote management capability
- Supports memory card local storage for backup recording
- Includes day/night, wide dynamic range, automatic defog, and motion detection
- Accepts 12 V DC or 24 V AC power input for installation flexibility
- Three-year limited warranty from Wisenet
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNV-6120 |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XNV-6120 |
| Product Name | 2MP Outdoor Network 12X Optical Zoom Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H: 54.58°(Wide)~5.30°(Tele) / V: 32.19°(Wide)~3.00°(Tele) / D: 61.4(Wide)~6.06(Tele) |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265,H.264 (MPEG-4 Part 10/AVC),MJPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 5.2 mm (0.20") |
| Maximum Focal Length | 62.4 mm (2.46") |
| Lens Included | Yes |
| Lens Mount Type | Board Mount |
| Minimum Aperture | f/3 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 12x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC,24 V AC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | Ivory |
| Mount Type | Flush Mount,Wall Mount,Pole Mount,Ceiling Mount,Pipe Mount,Box Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant |
| Height | 5.06" (128.45 mm) |
| Diameter | 6.30" (160 mm) |
| Weight (Approximate) | 2.17 lb (985 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Day/Night,Wide Dynamic Range,Automatic Defog,Audio Detection,Motion Detection,SD Card Local Storage,Back Light Compensation (BLC),Highlight Compensation (HLC),2D Digital Noise Reduction (2DNR),3D Digital Noise Reduction,Digital Image Stabilization,Privacy Masking,Auto Gain Control,Automatic White Balance,Enter/Exit Detector,Face Detection,Alarm Triggering,Audio Compression |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the resolution and frame rate of the XNV-6120 camera?
The camera captures 2-megapixel Full HD video at 1920 x 1080 resolution with a maximum frame rate of 60 frames per second. This combination provides detailed, smooth footage suitable for identifying faces, license plates, and other critical details in real-time surveillance applications.
How does the 12x optical zoom benefit surveillance use?
The 12x optical zoom allows the lens to adjust from a wide 54.58° horizontal field of view to a narrow 5.30° telephoto view without losing image quality. This enables operators to closely monitor distant areas like parking lot corners or building entries while maintaining high resolution, unlike digital zoom which reduces clarity.
What do the IK10 and IP66/IP67 ratings mean for durability?
IK10 indicates the dome withstands impacts of 20 joules, equivalent to a 5 kg mass dropped from 40 cm, making it vandal-resistant. IP66 means it is dust-tight and protected against powerful water jets, while IP67 adds protection against temporary immersion in water up to 1 meter deep. These ratings ensure reliable operation in harsh outdoor and high-traffic environments.
What video compression formats does this camera support?
It supports H.265, H.264 (MPEG-4 Part 10/AVC), and MJPEG formats. H.265 reduces bandwidth and storage requirements by approximately 50% compared to H.264 while maintaining similar quality, making it efficient for network transmission. MJPEG provides individual frame compression for compatibility with legacy systems.
Can this camera operate in extreme temperatures?
Yes, the XNV-6120 operates from -40°F to 131°F (-40°C to 55°C) and handles up to 90% humidity. This range allows deployment in cold climates, desert heat, and humid coastal areas without performance degradation, supported by its sealed IP66/IP67 housing that protects internal components.
What power input options are available for installation?
The camera accepts 12 V DC or 24 V AC power input, providing flexibility for different electrical setups. This dual-voltage capability simplifies integration with existing power supplies, PoE injectors, or AC adapters, reducing the need for additional converters in varied installation scenarios.
What processor does this product use?
Wisenet XNV-6120 2 Megapixel Outdoor Full HD Network Camera - Color - Dome - Ivory - H.265, H.264 (MPEG-4 Part 10/AVC), MJPEG - 1920 x (XNV-6120) is positioned around the listed processor configuration, giving buyers a clearer view of expected performance for business workloads and everyday deployment needs.
