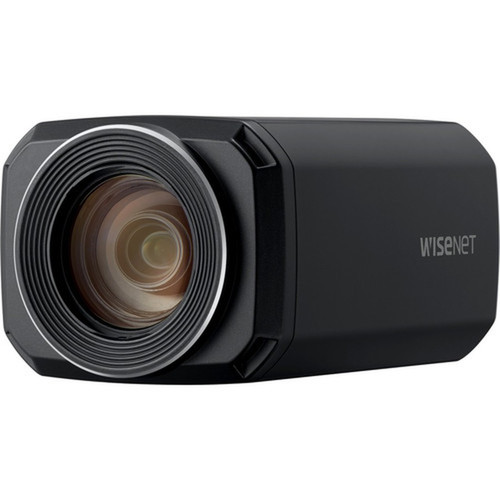

Wisenet XNZ-6320A 2MP 32x Zoom Box Network Camera - Full HD 1080p - Varifocal Lens - PoE/DC Power - Dark Gray
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera features a CMOS image sensor that captures color video in both day and night conditions, with a built-in mechanical ICR for infrared cut-filter switching. The varifocal lens provides focal length adjustment from 4.4mm to 142.6mm, corresponding to a field of view ranging from H: 64.66° (wide) to 2.29° (tele) and V: 38.08° (wide) to 1.30° (tele).
Video processing includes wide dynamic range, defog, digital noise reduction, and digital image stabilization to maintain image quality in challenging lighting and environmental conditions. The camera supports shutter speeds from 1/12000 second to 2 seconds, with aperture ranging from f/1.6 to f/4.4.
Relevant factors for this section include HD Recording, Recording Formats, Image Sensor Type, Color Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The XNZ-6320A combines high-resolution imaging with powerful zoom capabilities in a versatile box form factor. Its multi-codec support ensures seamless integration with existing surveillance infrastructure while optimizing storage efficiency.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Advanced Imaging Features, Flexible Storage Options.
Advanced Imaging Features
Includes privacy masking, gain control, white balance adjustment, and day/night operation for comprehensive surveillance control.
- Wide Dynamic Range
- Digital Noise Reduction
- Digital Image Stabilization
Flexible Storage Options
Supports local storage via memory card alongside network recording, providing redundancy and quick access to footage.
- SD Card Local Storage
- Network Recording Compatible
Deployment / Use Cases
The Wisenet XNZ-6320A is ideal for perimeter security, parking lot monitoring, and facility surveillance where long-range zoom capability is essential. Its box form factor and bracket mount design allow for flexible installation on walls, ceilings, or poles.
This camera excels in applications requiring detailed identification at distance, such as license plate recognition, entrance monitoring, or large area coverage. The PoE support simplifies installation by delivering both power and data over a single Ethernet cable, reducing wiring complexity.
Relevant factors for this section include HD Recording, Recording Formats, Image Sensor Type, Color Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Perimeter Security
The 32x zoom enables detailed monitoring of distant perimeter points while maintaining wide-area coverage capability.
Facility Monitoring
Box design with bracket mounting provides installation flexibility for indoor or protected outdoor environments.
Physical Profile
The camera features a dark gray box enclosure designed for professional installation. With bracket mounting support and a weight of 1.27 pounds, it offers stable positioning in various orientations. The compact form factor accommodates the substantial 32x zoom mechanism while maintaining manageable dimensions for discreet deployment.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.27 lb (578 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.27 lb (578 g)
- Length
- 4.4 mm (0.17")
Highlights
- 2-megapixel Full HD resolution (1920x1080) at 60 fps
- 32x optical zoom with varifocal lens (4.4mm to 142.6mm)
- Multiple video codec support: H.265, H.264, MJPEG variants
- Power over Ethernet (PoE) and 12V DC power options
- CMOS sensor with day/night operation and mechanical ICR
- Advanced imaging features: WDR, defog, noise reduction
- Local storage via memory card support
- Bracket mount box form factor in dark gray
- Operating temperature range: -10°C to 60°C (14°F to 140°F)
- Remote management capability for centralized control
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNZ-6320A |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XNZ-6320A |
| Product Name | 2MP 32x Zoom Box |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H: 64.66(Wide)~2.29(Tele) / V: 38.08(Wide)~1.30(Tele) |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | MJPEG,H.264,H.265B,H.265,H.265H,H.265M,H.264M,H.264B,H.264H |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.4 mm (0.17") |
| Maximum Focal Length | 142.6 mm (5.61") |
| Lens Included | Yes |
| Minimum Aperture | f/4.4 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 32x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Dark Gray |
| Mount Type | Bracket Mount |
| Form Factor | Box |
| Weight (Approximate) | 1.27 lb (578 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | SD Card Local Storage,Day/Night,Wide Dynamic Range,Built-in Mechanical ICR,Defog,Digital Noise Reduction,Digital Image Stabilization,Privacy Masking,Gain Control,White Balance |
User Manual
FAQ
What is the resolution of the Wisenet XNZ-6320A camera?
The Wisenet XNZ-6320A delivers 2-megapixel Full HD resolution at 1920 x 1080 pixels. This resolution provides clear, detailed video footage suitable for identification purposes in surveillance applications, with support for recording at up to 60 frames per second for smooth motion capture.
Does this camera support Power over Ethernet (PoE)?
Yes, the XNZ-6320A supports both Power over Ethernet and 12V DC power input. This dual power option provides installation flexibility, allowing you to use PoE for simplified single-cable deployment or traditional DC power where PoE infrastructure isn't available.
What type of zoom does this camera have?
This camera features a 32x optical zoom with varifocal lens capability. The lens provides focal length adjustment from 4.4mm (wide) to 142.6mm (tele), allowing you to frame shots precisely without sacrificing image quality. The optical zoom maintains resolution throughout the zoom range compared to digital zoom alternatives.
What video formats does the XNZ-6320A support?
The camera supports multiple video compression formats including MJPEG, H.264 (with B, H, and M variants), and H.265 (with B, H, and M variants). This multi-codec support ensures compatibility with various recording systems and allows optimization for different network bandwidth and storage requirements.
Can this camera operate in low-light conditions?
Yes, the XNZ-6320A features day/night operation with a built-in mechanical ICR (Infrared Cut Filter Removable) switch. This allows the camera to capture color video in daylight and switch to monochrome for improved sensitivity in low-light conditions. Additional features like wide dynamic range and digital noise reduction further enhance performance in challenging lighting.
What mounting options are available for this camera?
The camera uses a bracket mount system with a box form factor. This design allows flexible installation on walls, ceilings, or poles using appropriate mounting brackets. The dark gray enclosure is designed for professional surveillance installations where discreet positioning or environmental protection may be required.
