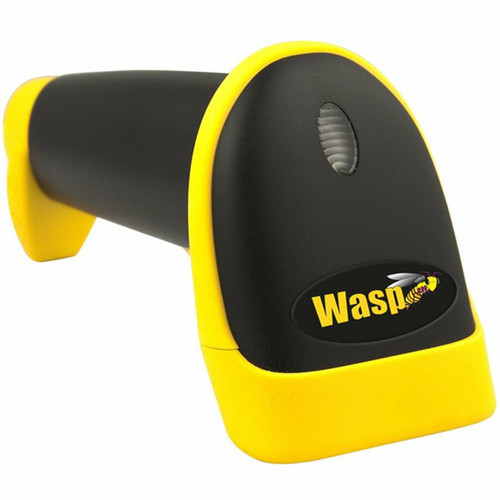

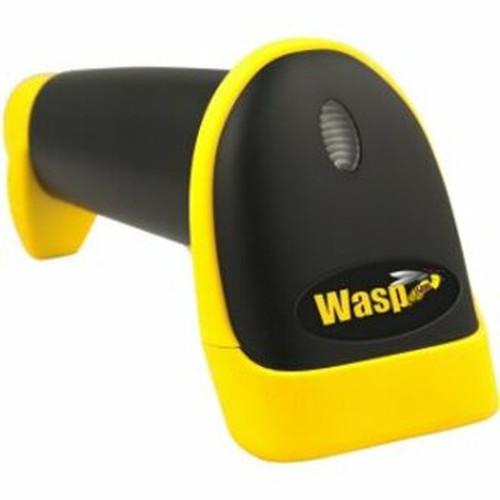

WLR8950 Long Range CCD Barcode Scanner (PS2) - Cable Connectivity - 450 scan/s - 12" (304.80 mm) Scan Distance - 1D - LED - CCD - - - (633808121679)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- UPC-A/UPC-E
- EAN-8/EAN-13
- Industrial 2 of 5
- Codabar
- Matrix 2 of 5
- Code 11
- Code 93
- Code 32
- Code 128
- Standard Code 39
- Full ASCII Code 39
- Interleaved 2 of 5
- China Postal Code
- MSI Plessy Code
- UK Plessy Code
- EAN/UCC 128
- Telepen Code
- IATA Code
- WLR8950 Bi-Color CCD Barcode Scanner
- 6' PS2 Cable
- Scanner Programming Guide
- 2-year Warranty
- Free, Unlimited Tech support for life of product
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:
Light Source: LED
Image Sensor Type: CCD
Scan Rate: 450 scan/s
Scan Pattern: Linear
Scanner Range: Long Range
Scanning Distance: 12" (304.80 mm)
Cable Type Included: PS/2
Drop Specification:
Withstands repeated 6 ft. (1.8 m) drops to concrete
Minimum Print Contrast: 30%
Minimum Element Resolution (Code 39): 4 mil (0.10 mm)
Maximum Element Resolution (Code 39): 5 mil (0.13 mm)
Minimum Element Resolution (PDF417): 10 mil (0.25 mm)
Features: Ergonomic Design
Host Interface: PS2
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing): 20% to 85%
Form Factor: Handheld
Product Material: ABS Plastic
Durability: Shock Resistant,Drop Resistant
Height: 6.30" (160.02 mm)
Width: 3.50" (88.90 mm)
Depth: 2.70" (68.58 mm)
Weight (Approximate): 4.80 oz (136.08 g)
Package Contents:
Application/Usage: Retail,Healthcare,Warehouse,Manufacturing
Platform Supported: PC
Country of Origin: Taiwan
Limited Warranty: 2 Year
- Scan barcodes with a staggering speed of 450 scan/s
- LED aimer is a perfect choice for patient-facing applications
- Wired connectivity makes this scanner ideal for retail and desktop applications
[custom-specifications]
| Specifications | |
| Manufacturer | Wasp Barcode Technologies |
| Manufacturer Part Number | 633808121679 |
| Manufacturer Website Address | http://www.waspbarcode.com |
| Brand Name | Wasp |
| Product Series | WLR8900 |
| Product Model | WLR8950 |
| Product Name | WLR8950 Long Range CCD Barcode Scanner (PS2) |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported |
|
| Light Source | LED |
| Image Sensor Type | CCD |
| Scan Rate | 450 scan/s |
| Scan Pattern | Linear |
| Scanner Range | Long Range |
| Scanning Distance | 12" (304.80 mm) |
| Cable Type Included | PS/2 |
| Drop Specification | Withstands repeated 6 ft. (1.8 m) drops to concrete |
| Minimum Print Contrast | 30% |
| Minimum Element Resolution (Code 39) | 4 mil (0.10 mm) |
| Maximum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Minimum Element Resolution (PDF417) | 10 mil (0.25 mm) |
| Features | Ergonomic Design |
| Interfaces/Ports | |
| Host Interface | PS2 |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -4°F (-20°C) to 140°F (60°C) |
| Humidity (Non-condensing) | 20% to 85% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Product Material | ABS Plastic |
| Durability | Shock Resistant,Drop Resistant |
| Height | 6.30" (160.02 mm) |
| Width | 3.50" (88.90 mm) |
| Depth | 2.70" (68.58 mm) |
| Weight (Approximate) | 4.80 oz (136.08 g) |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Retail,Healthcare,Warehouse,Manufacturing |
| Platform Supported | PC |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-options]
| Product | PS2 Cable for WCS3900, WLR8950 Barcode Scanners - mini-DIN (PS/2) Male - 2.44m |
| SKU | 633808121228 |
| Sale Price | $37.95 |
| Product | WLR8950, WDI4500, WWS550i Hands-Free Stand |
| SKU | 633808181024 |
| Sale Price | $61.95 |
| Product | WPL305 Barcode Printer - Monochrome - 5 in/s Mono - 203 dpi - USB, Serial, Parallel |
| SKU | 633808402006 |
| Sale Price | $727.95 |
| Product | WaspProtect Extended Service Plan for WLR8900 Series - Service Depot - Maintenance - Parts & Labor - Physical |
| SKU | 633808600020 |
| Sale Price | $36.95 |
| Product | USB Cable for WCS3900, WLR8950 Barcode Scanners - USB Data Transfer Cable for Barcode Scanner - First End: 1 x USB - Male |
| SKU | 633808181017 |
| Sale Price | $74.95 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Manufacturer-Brochure
User-Manual
[/custom-user-manual]
