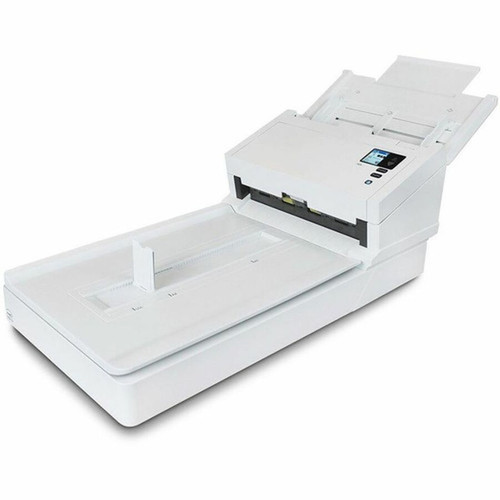

Xerox 100N03881 FD70-U Flatbed/ADF Scanner - 70 ppm Color/Mono - 600 dpi Optical - 120-Sheet ADF - Duplex Scanning - Windows Compatible
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the FD70-U scanner leverages dual-motor and reversing roller technology to ensure reliable paper feeding and precise alignment, minimizing jams and misfeeds even during extended high-volume sessions. This mechanical robustness supports a substantial 15,000-sheet daily duty cycle, making it a dependable asset for centralized scanning operations.
The scanner captures images with 24-bit color depth for vibrant, accurate color reproduction and 8-bit grayscale depth for detailed black-and-white documents. Its wide paper path accommodates a versatile media range, from small 2" x 2" items like business cards and photos up to legal-size documents (8.5" x 14"), and it even supports custom-length media up to 20 feet via the flatbed for specialized applications like blueprints or continuous forms.
This section brings together practical product details such as Optical Resolution (dpi), Scan Color, Color Depth, USB, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The FD70-U stands out with its balanced combination of speed, capacity, and media flexibility, designed to reduce bottlenecks in document-intensive workflows. Its high daily duty cycle and reliable ADF mechanism ensure consistent performance under continuous use, while the legal-size flatbed provides a versatile fallback for delicate or oversized items that cannot go through the feeder.
High-Throughput ADF
The 120-sheet automatic document feeder enables uninterrupted scanning of large batches, supported by dual-motor technology for smooth paper handling and reduced maintenance.
- Handles up to 120 sheets per load
- Dual-motor drive system
- Wide paper path reduces jams
Visioneer Software Suite
Includes the Visioneer Intelligent Software Platform with VAST Network technology and TWAIN Direct support, offering advanced image processing, network scanning capabilities, and seamless integration with document management applications.
- Advanced image enhancement
- Network scanning ready
- TWAIN Direct for direct application feed
Deployment / Use Cases
This scanner is ideally deployed in environments where converting physical documents to digital formats is a core daily function. Its speed and durability make it a fit for centralized scanning stations in corporate offices, government agencies, healthcare records departments, and educational institutions managing large volumes of paperwork.
Common use cases include digitizing client files for legal practices, archiving historical records in libraries, processing invoices and contracts in accounting departments, and capturing student records in administrative offices. The ability to scan plastic cards, photos, and ID cards also makes it valuable for HR onboarding, security badge processing, and customer service centers that handle mixed document types.
Centralized Document Digitization
Serve as a high-volume hub for converting paper files to searchable PDFs, supporting compliance, remote access, and disaster recovery initiatives across the organization.
Mixed-Media Processing
Efficiently handle diverse materials—from standard office paper and legal documents to photos, ID cards, and plastic cards—without needing multiple specialized devices.
Physical Profile
The FD70-U features a compact, office-friendly footprint measuring 21.4" wide by 12.6" deep by 9.1" high, designed to fit comfortably on a desk or dedicated workstation. Weighing approximately 19 pounds, it remains stable during operation while being manageable for occasional repositioning. Its sturdy construction supports the mechanical demands of high-speed scanning, with accessible trays and controls for straightforward daily use.
- Width
- 21.40" (543.56 mm)
- Depth
- 24-bit
- Height
- 9.10" (231.14 mm)
- Weight
- 18.96 lb (8600 g)
What's in the Box
The scanner arrives ready for setup with all essential components for immediate operation.
Highlights
- Scans at 70 ppm for both color and monochrome documents
- 600 dpi optical resolution for sharp, detailed images
- 120-sheet automatic document feeder for high-volume batching
- Duplex scanning captures both sides in a single pass
- Legal-size flatbed handles documents up to 8.5" x 14"
- Supports Windows 10, 11, and 7 via USB connectivity
- 15,000-sheet daily duty cycle for demanding environments
- Visioneer software with VAST Network and TWAIN Direct support
- Handles mixed media: paper, plastic cards, ID cards, photos
- Dual-motor and reversing roller technology for reliable feeding
Specifications
| Specifications | |
|---|---|
| Manufacturer | Xerox Corporation |
| Manufacturer Part Number | 100N03881 |
| Brand Name | Xerox |
| Product Model | FD70-U |
| Product Name | FD70-U Flatbed/ ADF Scanner |
| Product Type | Flatbed/ADF Scanner |
| Technical Information | |
| Optical Resolution (dpi) | 600 |
| Scan Color | Color,Monochrome,Grayscale |
| Color Depth | 24-bit |
| Grayscale Depth | 8-bit |
| Maximum Mono Scan Speed (ppm) | 70 |
| Maximum Color Scan Speed (ppm) | 70 |
| Maximum Mono Scan Speed (ipm) | 140 |
| Maximum Color Scan Speed (ipm) | 140 |
| Media Type | Paper Document,Plastic Card,ID Card,Photo |
| Media Size | 2" (50.80 mm) x 2" (50.80 mm),Custom Size - 9.50" (241.30 mm) x 20 ft (6096 mm),8.50" (215.90 mm) x 14" (355.60 mm) |
| ADF Capacity | 120 Sheets |
| Duplex Scanning | Yes |
| Scanning Modes | Duplex |
| Interfaces/Ports | |
| USB | Yes |
| Software | |
| Operating System Supported | Windows 10,Windows 11,Windows 7 |
| Physical Characteristics | |
| Height | 9.10" (231.14 mm) |
| Width | 21.40" (543.56 mm) |
| Depth | 12.60" (320.04 mm) |
| Weight (Approximate) | 18.96 lb (8600 g) |
| Miscellaneous | |
| Package Contents | FD70-U Flatbed/ ADF Scanner Power Supply Power Plug Adapter USB Cable Quick Installation Guide Warranty/Support Card |
User Manual
FAQ
What is the maximum scanning speed of the Xerox FD70-U scanner?
The Xerox FD70-U scanner achieves a maximum scanning speed of 70 pages per minute for both color and monochrome documents, which translates to 140 images per minute when scanning duplex (both sides). This high throughput is suitable for digitizing large batches of paperwork efficiently in office settings.
How many sheets can the automatic document feeder hold?
The automatic document feeder has a capacity of 120 sheets, allowing you to load substantial stacks of documents for continuous scanning without frequent interruptions. This capacity supports high-volume tasks like archiving files, processing invoices, or converting multi-page reports.
Does this scanner support duplex (double-sided) scanning?
Yes, the FD70-U includes duplex scanning capability, enabling it to capture both sides of a document in a single pass through the ADF. This feature doubles efficiency when digitizing double-sided originals such as contracts, manuals, or correspondence, eliminating the need to manually flip pages.
What operating systems are compatible with the FD70-U scanner?
The scanner is compatible with Windows 10, Windows 11, and Windows 7 operating systems. It connects via USB and works with the included Visioneer software suite, providing drivers and tools for image capture, enhancement, and integration into document management workflows on these platforms.
What types of media can the FD70-U scanner handle?
This scanner handles a wide range of media types, including standard paper documents, plastic cards (like credit cards or ID badges), ID cards, and photos. The flatbed accommodates items from 2" x 2" up to legal size (8.5" x 14"), and it supports custom-length media up to 20 feet for specialized applications.
What is the daily duty cycle of the Xerox FD70-U scanner?
The FD70-U has a daily duty cycle of 15,000 sheets, indicating its robust construction and reliability for continuous, high-volume scanning operations. This rating ensures the scanner can handle demanding workloads in environments like corporate archives, government offices, or busy administrative departments without performance degradation.
What sheet capacity, media size, or paper handling detail is listed?
2" (50.80 mm) x 2" (50.80 mm),Custom Size - 9.50" (241.30 mm) x 20 ft (6096 mm),8.50" (215.90 mm) x 14" (355.60 mm).
What connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
