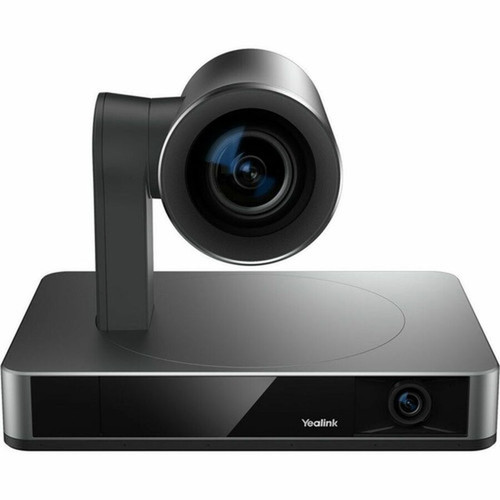

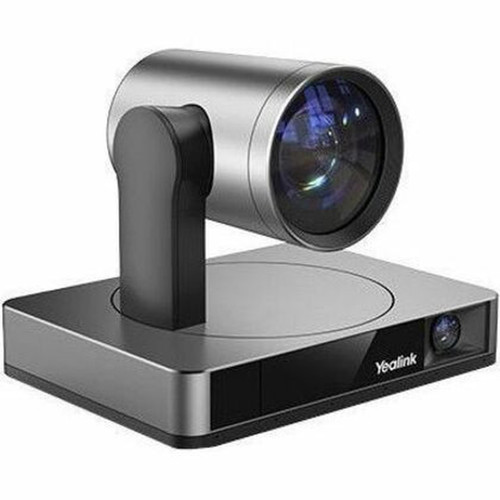

Yealink 1206619 UVC86 Video Conferencing Camera - 8 Megapixel - 4K UHD - 30 fps - 90° FOV - USB 3.0 - Built-in Mic - Wall/Ceiling Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera operates at a maximum frame rate of 30 frames per second, providing smooth video playback that minimizes motion blur and flickering during dynamic scenes. The 90-degree field of view angle offers a wide perspective, suitable for capturing group discussions or panoramic room views without requiring constant panning.
Connectivity is handled through a USB 3.0 Type B interface, ensuring high-speed data transfer for uncompressed video streams, alongside an RJ-45 network port and HDMI output for additional display or streaming flexibility. The 1.7x digital zoom allows for closer inspection of subjects without sacrificing overall image quality.
Relevant factors for this section include Connectivity Technology, Effective Resolution, Maximum Video Resolution, Maximum Frame Rate. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The UVC86 stands out with its combination of high-resolution imaging, versatile mounting, and integrated audio, reducing the need for additional peripherals in conferencing setups. Its robust connectivity options support both direct display output and network integration, catering to diverse IT environments.
Crisp 4K Video
Delivers ultra-high-definition video at 3840 x 2160 resolution, ensuring sharp details and vibrant colors for professional presentations and team meetings.
- 8-megapixel sensor
- 30 fps smooth playback
- 90° wide-angle lens
Flexible Installation
Supports wall, ceiling, stand, and tripod mounting, allowing for optimal positioning in conference rooms, training centers, or huddle spaces.
- Multiple mount types
- Compact footprint
- Easy integration
Integrated Audio
Includes a built-in microphone that captures clear sound, enhancing the conferencing experience without requiring separate audio equipment.
- Built-in mic
- Clear voice pickup
- Reduced clutter
Deployment / Use Cases
The Yealink UVC86 is ideal for medium to large conference rooms where high-quality video is essential for effective communication. Its 4K resolution and wide field of view make it suitable for boardrooms, training facilities, and executive suites where participants need to see detailed content and multiple speakers clearly.
In educational settings, this camera can be used for recording lectures or facilitating remote learning sessions, providing students with a clear view of instructors and presentation materials. For corporate environments, it supports hybrid work models by ensuring remote team members have a seamless visual connection to in-office discussions and collaborative whiteboarding sessions.
Conference Room Setup
Deploy in dedicated meeting spaces with wall or ceiling mounting for a permanent, professional installation that captures entire room dynamics.
Training & Education
Use in classrooms or training centers to record or stream high-definition video for remote attendees, with clear audio from the built-in microphone.
Physical Profile
Measuring 6.20 inches in height, 8.27 inches in width, and 6.13 inches in depth, the UVC86 has a compact form factor that fits discreetly in various mounting scenarios. Its weight of approximately 3.27 kg provides stability when installed on walls or ceilings, reducing vibration and ensuring steady video capture.
The design includes integrated mounting points for secure attachment, and the neutral finish blends with most office décor. The physical dimensions allow for flexible placement without obstructing sightlines or room aesthetics.
- Width
- 8.27" (210 mm)
- Depth
- 6.13" (155.60 mm)
- Height
- 6.20" (157.60 mm)
- Weight
- 3.27 kg
What's in the Box
The package includes all necessary components for immediate setup and operation, ensuring a complete out-of-the-box experience for conferencing deployments.
Highlights
- 8-megapixel sensor for high-resolution 4K UHD video output
- 30 fps frame rate ensures smooth, flicker-free video playback
- 90-degree field of view captures wide room perspectives
- USB 3.0 Type B interface for high-speed data transfer
- Built-in microphone provides clear audio without extra peripherals
- Supports wall, ceiling, stand, and tripod mounting options
- HDMI and RJ-45 ports for additional connectivity flexibility
- Compatible with Windows 7, Windows 10, and Mac OS X 10.10+
- Includes remote control for convenient operation
- 7-meter USB cable allows flexible camera placement
Specifications
| Specifications | |
|---|---|
| Manufacturer | Yealink Network Technology Co., Ltd |
| Manufacturer Part Number | 1206619 |
| Brand Name | Yealink |
| Product Model | UVC86 |
| Product Name | UVC86 Camera |
| Product Type | Video Conferencing Camera |
| Technical Information | |
| Connectivity Technology | Wired |
| Display & Graphics | |
| Effective Resolution | 8 Megapixel |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps |
| Field Of View (FOV) Angle | 90° |
| Lens | |
| Digital Zoom | 1.7x |
| Built-in Devices | |
| Microphone | Yes |
| Interfaces/Ports | |
| Host Interface | USB 3.0 Type B |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| Software | |
| Operating System Supported | Windows 7,Windows 10,Mac OS X 10.10 Yosemite |
| Physical Characteristics | |
| Mounting Type | Wall,Ceiling Mount,Stand,Tripod Mount |
| Height | 6.20" (157.60 mm) |
| Width | 8.27" (210 mm) |
| Depth | 6.13" (155.60 mm) |
| Weight (Approximate) | 3.27 kg |
| Miscellaneous | |
| Package Contents | UVC86 Camera VCR20 Remote Control Power Adapter Wall Bracket and Accessories 7m USB Cable (2.5m for MVC bundle) |
User Manual
FAQ
What video resolution does the Yealink UVC86 support?
The Yealink UVC86 supports a maximum video resolution of 3840 x 2160, which is 4K Ultra HD. This high resolution ensures detailed and clear video output, making it suitable for professional conferencing where fine text, graphics, and participant details need to be visible. The 8-megapixel effective resolution contributes to sharp image quality across various lighting conditions.
What is the frame rate of this conferencing camera?
This camera operates at a maximum frame rate of 30 frames per second (fps). This frame rate provides smooth video playback that minimizes motion blur and flickering, which is essential for dynamic meetings where participants move or present content. The 30 fps capability ensures fluid recording and display, enhancing the overall conferencing experience.
Does the UVC86 have a built-in microphone?
Yes, the Yealink UVC86 includes a built-in microphone. This integrated audio feature captures clear sound, reducing the need for separate microphones in many conferencing setups. The microphone works cohesively with the video to provide a unified communication tool, though for larger rooms, additional audio equipment may be beneficial depending on acoustic requirements.
What mounting options are available for this camera?
The UVC86 supports multiple mounting types: wall, ceiling mount, stand, and tripod mount. This flexibility allows for optimal positioning in various environments, such as conference rooms, classrooms, or huddle spaces. The included wall bracket and accessories facilitate easy installation, and the compact dimensions ensure it fits discreetly in most setups.
What connectivity ports does the UVC86 offer?
The camera features a USB 3.0 Type B host interface for high-speed data transfer to a computer, an RJ-45 network port for network connectivity, and an HDMI output for direct display connection. These ports provide versatility in deployment, allowing integration with different conferencing systems, displays, or network setups without requiring adapters in most cases.
Which operating systems are compatible with the Yealink UVC86?
The UVC86 is compatible with Windows 7, Windows 10, and Mac OS X 10.10 Yosemite or later. This broad operating system support ensures easy integration into most business and educational IT environments, with plug-and-play functionality via USB 3.0. No specialized drivers are typically required for basic operation, simplifying setup across platforms.
