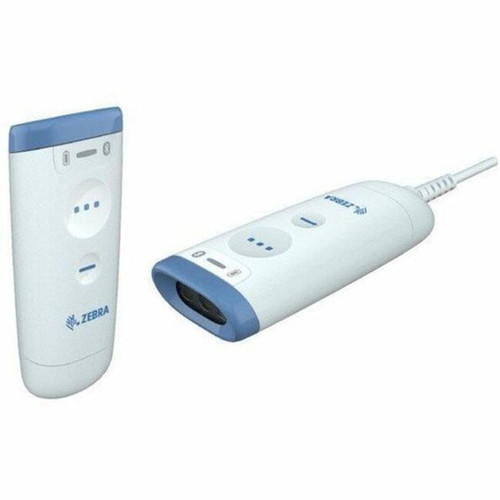

Zebra CS6080-HC Barcode Scanner Kit - Wireless Connectivity - 1D, 2D - LED - Imager - Bluetooth - USB - Healthcare White - IP65 - (CS6080-HCB00004P1W)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Base 32 (Italian Pharma)
- Codabar/NW7
- Code 11
- Code 39
- Code 93
- Code 128
- GS1 DataBar
- I 2 of 5
- Korean 3 of 5
- MSI Plessey
- UPC/EAN
- Aztec
- Composite Codes
- DataMatrix
- Dotted DataMatrix
- Dotcode
- Han Xin
- MaxiCode
- PDF417
- Micro PDF417
- Postal Codes
- QR Code
- Micro QR
- TLC-39
- SecurPharm
- OCR-A
- OCR-B
- MICR
- US Currency
-
- CS6080-HC Barcode Scanner Kit
- CR6080-PC100FBWW Cradle
- CBL-CS6-S07-0B USB-C Cable
Connectivity Technology: Wireless
Scanning Capability: 1D,2D
Barcode Symbology Supported:
1D:
2D:
OCR:
Light Source: LED
Image Sensor Type: Imager
Field of View (Horizontal): 45°
Field of View (Vertical): 34°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Motion Tolerance: 20 in/s (508 mm/s)
Maximum Ambient Light: 108000 lux
Drop Specification:
Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete
Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (Code 39): 20 mil (0.51 mm)
Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Maximum Element Resolution (PDF417): 6.70 mil (0.17 mm)
Image Sensor Resolution: 1280 x 960
Illumination Type: LED
Illumination Color: White
Bluetooth: Yes
Host Interface: USB
Input Current: 450 mA
Standby Current: 600 mA
Battery Chemistry: Lithium Polymer (Li-Polymer)
Battery Capacity: 745 mAh
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 5% to 95%
Color Family: White
Product Color: Healthcare White
Height: 3.50" (88.90 mm)
Width: 2.10" (53.34 mm)
Depth: 2.40" (60.96 mm)
Weight (Approximate): 3.40 oz (96.39 g)
Package Contents:
Ingress Protection (IP) Rating: IP65
Application/Usage: Healthcare,Industrial,Inventory,Pharmacy
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: 3 Year
- Laser-free design provides high-performance scanning without the risk of eye injury
- Increases productivity by giving the opportunity to wander, without the tangle of cables
- Bluetooth technology - Allows compatibility with most of your smart devices
[custom-specifications]
| Specifications | |
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | CS6080-HCB00004P1W |
| Manufacturer Website Address | http://www.zebra.com |
| Brand Name | Zebra |
| Product Series | CS60-HC |
| Product Model | CS6080-HC |
| Product Name | CS6080-HC Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
2D:
OCR:
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Field of View (Horizontal) | 45° |
| Field of View (Vertical) | 34° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 20 in/s (508 mm/s) |
| Maximum Ambient Light | 108000 lux |
| Drop Specification | Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete |
| Minimum Print Contrast | 20% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Image Sensor Resolution | 1280 x 960 |
| Illumination Type | LED |
| Illumination Color | White |
| Network & Communication | |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Host Interface | USB |
| Power Description | |
| Input Current | 450 mA |
| Standby Current | 600 mA |
| Battery Information | |
| Battery Chemistry | Lithium Polymer (Li-Polymer) |
| Battery Capacity | 745 mAh |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Color Family | White |
| Product Color | Healthcare White |
| Height | 3.50" (88.90 mm) |
| Width | 2.10" (53.34 mm) |
| Depth | 2.40" (60.96 mm) |
| Weight (Approximate) | 3.40 oz (96.39 g) |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP65 |
| Application/Usage | Healthcare,Industrial,Inventory,Pharmacy |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
