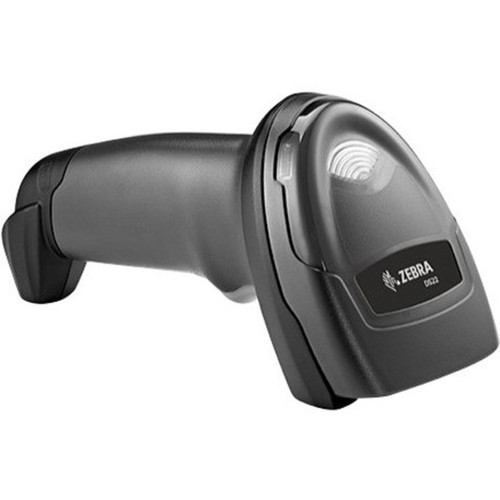

Zebra DS2208-SR7U2100SGW DS2208-SR Handheld Barcode Scanner Kit with Stand - 30 scan/s - 14. 49" Scan Distance - 1D/2D Imager - USB Cable - Twilight
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This scanner utilizes advanced imaging technology to decode a comprehensive range of barcode symbologies. It supports all major 1D codes, including Code 39, Code 128, UPC/EAN, and GS1 DataBar, as well as 2D formats like DataMatrix, QR Code, PDF417, and Aztec. The imager achieves high-resolution reads, with a minimum element resolution of 5 mil (0.13 mm) for Code 39 barcodes.
Technical performance is enhanced by a wide 33° horizontal and 25° vertical field of view, coupled with generous reading angles—65° skew, 65° pitch, and a full 360° roll. This ensures successful scans even when barcodes are presented at awkward angles. The motion tolerance of 5 in/s (127 mm/s) and a minimum print contrast requirement of 25% further guarantee reliable performance on moving items or low-contrast labels.
Key Product Advantages
The DS2208-SR combines speed, durability, and ease of use into a single, cost-effective scanning solution. Its wired USB connectivity provides a stable, plug-and-play connection ideal for fixed workstation setups, eliminating battery concerns and wireless interference.
Built for Reliability
Designed to withstand multiple drops from 5 feet onto concrete, this scanner meets the rigors of daily use. The IP42 rating offers protection against dust and water droplets, ensuring operation in various environmental conditions.
- 5.0 ft./1.5 m drop tested to concrete
- IP42 ingress protection rating
Enhanced User Experience
The included stand allows for convenient hands-free presentation scanning, while the lightweight, ergonomic handheld design reduces strain during extended manual use. The high scan rate and long scanning distance minimize rescans and speed up transaction times.
Deployment / Use Cases
This scanner is versatile enough for a wide array of commercial and light industrial applications. Its primary use case is high-volume retail point-of-sale, where speed and reliability directly impact customer wait times and checkout efficiency. The extended scan distance is particularly useful for scanning large or bulky items without needing to bring the scanner into direct contact.
Beyond retail, the DS2208-SR is well-suited for inventory management in logistics and warehouse settings, asset tracking in government or light manufacturing facilities, and guest services in the hospitality industry. The standard range and robust construction make it a dependable tool for environments where equipment is subject to frequent handling and occasional accidental drops.
Physical Profile
The scanner features a compact, handheld form factor measuring 6.50" high, 2.60" wide, and 3.90" deep, with an approximate weight of just 5.70 ounces. This lightweight and balanced design promotes comfortable, all-day use. The Twilight Black color provides a sleek, professional look that integrates seamlessly into modern business environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.50" (165.10 mm), 2.60" (66.04 mm), 3.90" (99.06 mm), 5.70 oz (161.59 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.60" (66.04 mm)
- Depth
- 3.90" (99.06 mm)
- Height
- 6.50" (165.10 mm)
- Weight
- 5.70 oz (161.59 g)
What's in the Box
This kit includes everything needed for immediate setup and operation.
Package contents include USB. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Handheld barcode scanner kit includes a stand and USB cable for immediate use.
- High-speed 30 scans per second imager for efficient 1D and 2D barcode reading.
- Extended 14.49-inch (368 mm) scanning distance for flexible operation.
- Omni-directional scan pattern with wide 33° x 25° field of view.
- Rugged construction withstands multiple 5-foot drops to concrete (IP42 rated).
- Wired USB connectivity ensures a stable, plug-and-play host interface.
- Supports a comprehensive range of 1D and 2D barcode symbologies.
- Twilight Black color with compact, ergonomic handheld form factor.
- Ideal for retail POS, hospitality, logistics, and light industrial applications.
- Manufacturer part number: DS2208-SR7U2100SGW.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | DS2208-SR7U2100SGW |
| Brand Name | Zebra |
| Product Series | DS2200 |
| Product Model | DS2208-SR |
| Product Name | DS2208-SR Handheld Barcode Scanner with Stand |
| Packaged Quantity | 1 |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Code 39 Code 128 Code 93 Codabar/NW7 Code 11 MSI Plessey UPC/EAN I 2 of 5 Korean 3 of 5 GS1 DataBar Base 32 (Italian Pharma) 2D: PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Chinese Sensible (Han Xin) Postal Codes |
| Image Sensor Type | Imager |
| Scan Rate | 30 scan/s |
| Scan Pattern | Omni-directional |
| Scanner Range | Standard Range |
| Scanning Distance | 14.49" (368 mm) |
| Cable Type Included | USB |
| Stand Included | Yes |
| Field of View (Horizontal) | 33° |
| Field of View (Vertical) | 25° |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 5 in/s (127 mm/s) |
| Maximum Ambient Light | 107600 lux |
| Drop Specification | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Minimum Print Contrast | 25% |
| Maximum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Twilight Black |
| Height | 6.50" (165.10 mm) |
| Width | 2.60" (66.04 mm) |
| Depth | 3.90" (99.06 mm) |
| Weight (Approximate) | 5.70 oz (161.59 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP42 |
| Application/Usage | Retail,Hospitality,Transportation,Logistics,Light/Clean Manufacturing,Government,Industrial |
| Country of Origin | Mexico |
User Manual
FAQ
What types of barcodes can the Zebra DS2208-SR scanner read?
The DS2208-SR is a 1D/2D imager scanner capable of reading a wide array of symbologies. For 1D barcodes, it supports common formats like Code 39, Code 128, UPC/EAN, GS1 DataBar, and several others. Its 2D capability includes DataMatrix, QR Code, PDF417, Aztec, MaxiCode, and Micro QR codes, making it suitable for modern retail, logistics, and industrial labeling standards.
How fast does this barcode scanner capture data?
This scanner operates at a scan rate of 30 scans per second. This high speed allows for rapid, efficient data capture in high-volume environments like retail checkout or warehouse receiving, minimizing the time needed per item and helping to maintain fast workflow throughput.
What is the maximum distance for scanning a barcode?
The DS2208-SR has a scanning distance of 14.49 inches (368 millimeters). This extended range, classified as standard range, provides flexibility for scanning items without needing to bring the scanner into direct contact, which is useful for bulky products or when the barcode is not easily accessible.
How is the scanner connected to a computer or POS system?
This scanner uses wired cable connectivity via a USB host interface. The kit includes the necessary USB cable, providing a direct, plug-and-play connection to compatible systems. This wired setup ensures a stable data link without concerns for battery life or wireless signal interference, ideal for fixed workstation applications.
Is this scanner durable enough for industrial or retail environments?
Yes, the DS2208-SR is built for durability. It is designed to withstand multiple drops from a height of 5.0 feet (1.5 meters) onto concrete. Additionally, it carries an IP42 ingress protection rating, meaning it is protected against solid objects larger than 1mm (like tools and wires) and dripping water when tilted up to 15 degrees, making it suitable for demanding daily use.
What applications or industries is this scanner best suited for?
This scanner is versatile and suited for multiple verticals. Its primary applications include retail point-of-sale, hospitality front-desk operations, and transportation ticketing. It is also effective for logistics and warehouse inventory management, light or clean manufacturing assembly verification, and asset tracking in government or general industrial settings, thanks to its speed, durability, and comprehensive symbology support.
