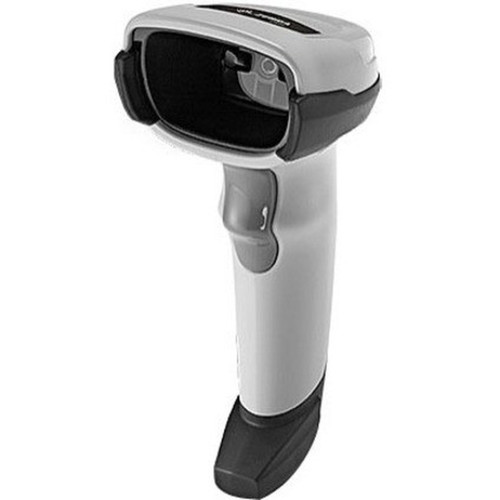

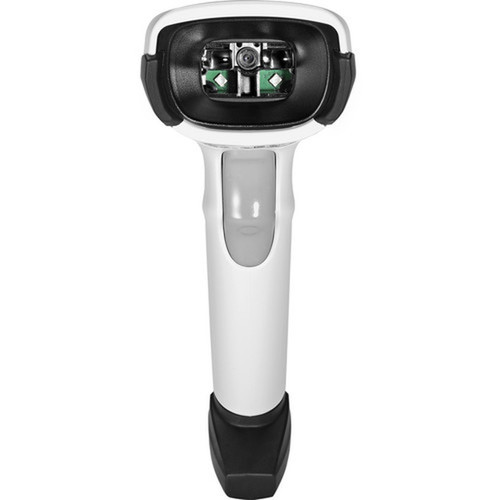

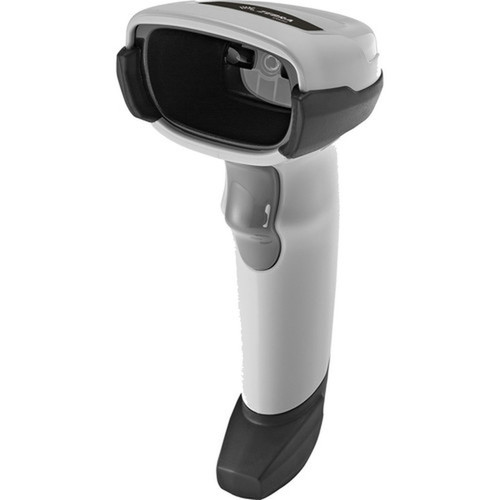

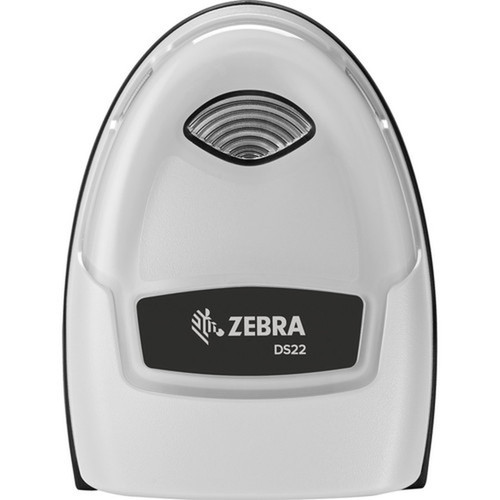

Zebra DS2208-SR6U2100SGW Handheld Barcode Scanner with Stand - USB Cable - 30 scans/s - 14. 5" Scan Distance
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Code 39
- Code 128
- Code 93
- Codabar/NW7
- Code 11
- MSI Plessey
- UPC/EAN
- I 2 of 5
- Korean 3 of 5
- GS1 DataBar
- Base 32 (Italian Pharma)
- PDF417
- Composite Codes
- TLC-39
- Aztec
- DataMatrix
- MaxiCode
- QR Code
- Micro QR
- Chinese Sensible (Han Xin)
- Postal Codes
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Barcode Symbology Supported: 1D:
Image Sensor Type: Imager
Scan Rate: 30 scan/s
Scan Pattern: Omni-directional
Scanner Range: Standard Range
Scanning Distance: 14.50" (368.30 mm)
Cable Type Included: USB
Stand Included: Yes
Field of View (Horizontal): 33°
Field of View (Vertical): 25°
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 5 in/s (127 mm/s)
Maximum Ambient Light: 107600 lux
Drop Specification: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Minimum Print Contrast: 25%
Maximum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Maximum Element Resolution (PDF417): 6.70 mil (0.17 mm)
Host Interface: USB
Form Factor: Handheld
Color Family: White
Product Color: Nova White
Height: 6.50" (165.10 mm)
Width: 2.60" (66.04 mm)
Depth: 3.90" (99.06 mm)
Weight (Approximate): 5.70 oz (161.59 g)
Ingress Protection (IP) Rating: IP42
Application/Usage: Retail,Hospitality,Transportation,Logistics,Light/Clean Manufacturing,Government,Industrial
[custom-specifications]
| Specifications | |
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | DS2208-SR6U2100SGW |
| Manufacturer Website Address | http://www.zebra.com |
| Brand Name | Zebra |
| Product Series | DS2200 |
| Product Model | DS2208-SR |
| Product Name | DS2208-SR Handheld Barcode Scanner with Stand |
| Packaged Quantity | 1 |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
|
| Image Sensor Type | Imager |
| Scan Rate | 30 scan/s |
| Scan Pattern | Omni-directional |
| Scanner Range | Standard Range |
| Scanning Distance | 14.50" (368.30 mm) |
| Cable Type Included | USB |
| Stand Included | Yes |
| Field of View (Horizontal) | 33° |
| Field of View (Vertical) | 25° |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 5 in/s (127 mm/s) |
| Maximum Ambient Light | 107600 lux |
| Drop Specification | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Minimum Print Contrast | 25% |
| Maximum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | White |
| Product Color | Nova White |
| Height | 6.50" (165.10 mm) |
| Width | 2.60" (66.04 mm) |
| Depth | 3.90" (99.06 mm) |
| Weight (Approximate) | 5.70 oz (161.59 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP42 |
| Application/Usage | Retail,Hospitality,Transportation,Logistics,Light/Clean Manufacturing,Government,Industrial |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf2
Additional-pdf3
Additional-pdf4
Additional-pdf1
Manufacturer-Brochure
[/custom-user-manual]
