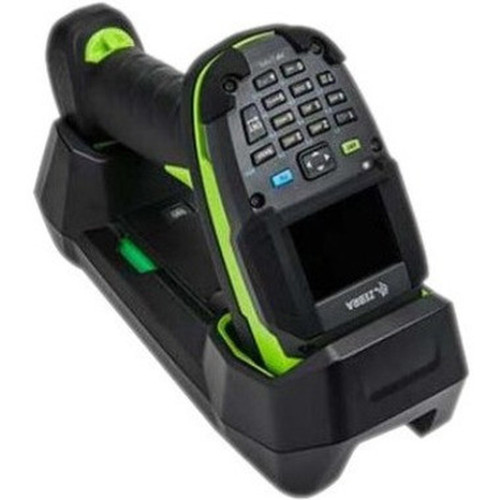

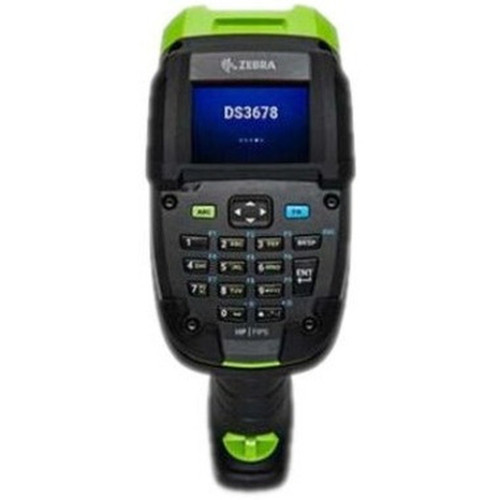

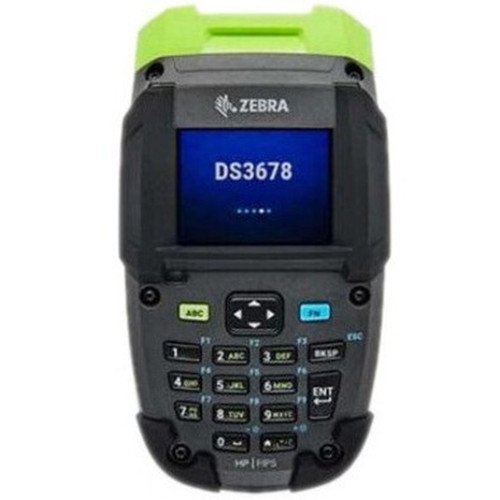

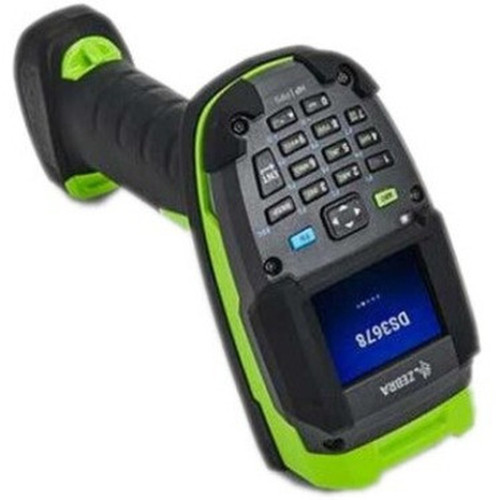

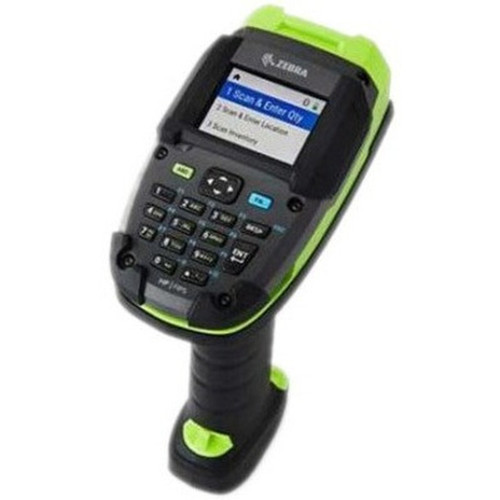

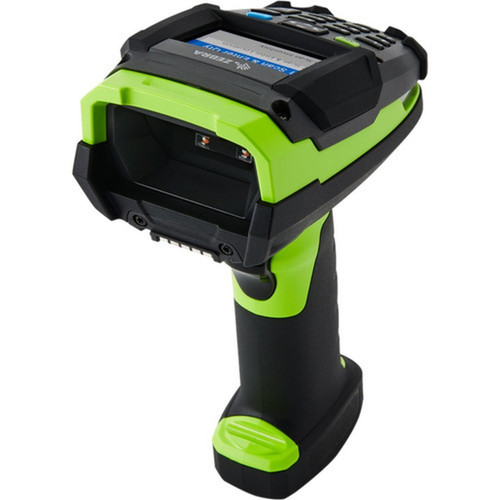

Zebra DS3600-KD Cordless Barcode Scanner Kit - Wireless Connectivity - 80" (2032 mm) Scan Distance - 1D, 2D - LED - Imager - Radio - - (DS3678-HP3U4212SKW)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Code 39
- Code 128
- Code 93
- Codabar/NW7
- Code 11
- MSI Plessey
- UPC/EAN
- I 2 of 5
- Korean 3 of 5
- GS1 DataBar
- Base 32 (Italian Pharma)
- PDF417
- Micro PDF417
- Composite Codes
- TLC-39
- Aztec
- DataMatrix
- MaxiCode
- QR Code
- Micro QR
- Chinese Sensible (Han Xin)
- Postal Codes
Connectivity Technology: Wireless
Scanning Capability: 1D,2D
Barcode Symbology Supported: 1D :
Light Source: LED
Image Sensor Type: Imager
Scanner Range: Short Range
Scanning Distance: 80" (2032 mm)
Display Screen: Yes
Number of Keys: 19
Keypad Type: Alphanumeric
Cable Type Included: USB
Stand Included: Yes
Field of View (Horizontal): 31°
Field of View (Vertical): 23°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Maximum Ambient Light: 108000 lux
Drop Specification: Withstands multiple 10.0 ft./3.0 m drops to concrete at room temperature
Withstands multiple 8.0 ft./2.4 m drops to concrete at -4° F to 122° F/-20° C to 50° C
Minimum Print Contrast: 15%
Minimum Element Resolution (DataMatrix): 7.50 mil (0.19 mm)
Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Bluetooth: Yes
Radio Frequency: Yes
Host Interface: USB,Serial,Keyboard Wedge,Ethernet,PROFINET
Power Supply Included: Yes
Form Factor: Handheld
Rugged: Yes
Color Family: Green
Product Color: Industrial Green
Height: 7.50" (190.50 mm)
Width: 3.10" (78.74 mm)
Depth: 5.60" (142.24 mm)
Weight (Approximate): 1.12 lb (510.291416 g)
Ingress Protection (IP) Rating: IP65,IP68
Application/Usage: Warehouse,Distribution,Retail,Manufacturing,Asset Tracking,Inventory,Picking,Packing
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- LED aimer is a perfect choice for patient-facing applications
- Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
- Bluetooth technology - Allows compatibility with most of your smart devices
[custom-specifications]
| Specifications | |
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | DS3678-HP3U4212SKW |
| Manufacturer Website Address | http://www.zebra.com |
| Brand Name | Zebra |
| Product Model | DS3600-KD |
| Product Name | DS3600-KD Cordless Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D :
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scanner Range | Short Range |
| Scanning Distance | 80" (2032 mm) |
| Display Screen | Yes |
| Number of Keys | 19 |
| Keypad Type | Alphanumeric |
| Cable Type Included | USB |
| Stand Included | Yes |
| Field of View (Horizontal) | 31° |
| Field of View (Vertical) | 23° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 108000 lux |
| Drop Specification | Withstands multiple 10.0 ft./3.0 m drops to concrete at room temperature Withstands multiple 8.0 ft./2.4 m drops to concrete at -4° F to 122° F/-20° C to 50° C |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 7.50 mil (0.19 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Network & Communication | |
| Bluetooth | Yes |
| Radio Frequency | Yes |
| Interfaces/Ports | |
| Host Interface | USB,Serial,Keyboard Wedge,Ethernet,PROFINET |
| Power Description | |
| Power Supply Included | Yes |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Green |
| Product Color | Industrial Green |
| Height | 7.50" (190.50 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 5.60" (142.24 mm) |
| Weight (Approximate) | 1.12 lb (510.291416 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP65,IP68 |
| Application/Usage | Warehouse,Distribution,Retail,Manufacturing,Asset Tracking,Inventory,Picking,Packing |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
