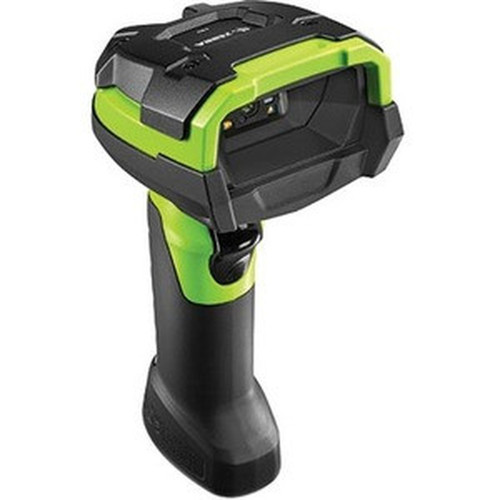

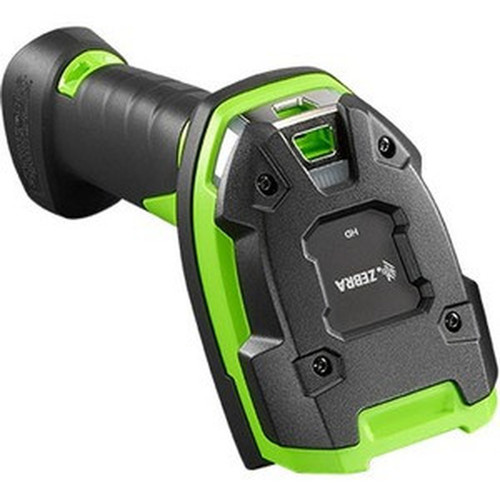

Zebra DS3608-ER20003VZWW Handheld Barcode Scanner - 1D/2D Imager - Cable USB - Industrial Green - IP67/IP65 Rugged
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This scanner features a 32° horizontal and 20° vertical field of view, with reading angles of 60° skew, 60° pitch, and 360° roll for flexible scanning orientations. It operates effectively in high ambient light up to 107,639 lux and handles low-contrast barcodes with a minimum print contrast of 25%.
The imager resolves DataMatrix codes from 7.50 mil (0.19 mm) to 10 mil (0.25 mm), ensuring precise reading of dense or small symbols. Connectivity is provided via a cable USB host interface, offering straightforward plug-and-play integration with POS systems, computers, and industrial terminals.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The DS3608-ER combines rugged durability with advanced scanning technology to meet the needs of challenging operational environments. Its IP67 and IP65 ratings provide dust and water resistance, while the ability to withstand multiple 8-foot drops to concrete ensures long-term reliability in high-impact settings.
Industrial Durability
Built to survive harsh conditions with IP67/IP65 ingress protection and drop resistance up to 8 feet on concrete.
- IP67/IP65 rated
- 8 ft. drop tested
- Industrial green finish
Advanced Symbology Support
Reads a comprehensive range of 1D and 2D barcodes, including specialized formats for logistics, manufacturing, and government applications.
- 1D: Code 39, 128, UPC/EAN
- 2D: DataMatrix, QR, Aztec
- Digimarc, IUID parsing
Deployment / Use Cases
Designed for industrial, warehouse, and manufacturing applications, the DS3608-ER excels in environments where scanners face physical abuse, dust, moisture, and variable lighting conditions. Its rugged design and reliable performance make it suitable for inventory management, shipping and receiving, quality control, and asset tracking operations.
The scanner's extended range and flexible reading angles allow operators to scan barcodes on large boxes, high shelves, or irregular surfaces without repositioning items. This reduces handling time and improves workflow efficiency in distribution centers, manufacturing floors, and retail backrooms.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The handheld form factor measures 7.30" (185.42 mm) in height, 3" (76.20 mm) in width, and 5.20" (132.08 mm) in depth, with a weight of approximately 11.78 oz (334 g). This compact, balanced design provides comfortable grip and maneuverability for extended use during shifts. The industrial green color offers visual distinction in shared equipment environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.30" (185.42 mm), 3" (76.20 mm), 5.20" (132.08 mm), 11.78 oz (334 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3" (76.20 mm)
- Depth
- 5.20" (132.08 mm)
- Height
- 7.30" (185.42 mm)
- Weight
- 11.78 oz (334 g)
Highlights
- Rugged handheld barcode scanner with IP67/IP65 rating
- 1D and 2D imager supports comprehensive symbology range
- Extended range scanning with omni-directional pattern
- Withstands multiple 8 ft. drops to concrete
- Industrial green color for durability and visibility
- USB cable connectivity for simple host integration
- Operates in high ambient light up to 107,639 lux
- IUID parsing capability for government and defense applications
- 32° horizontal and 20° vertical field of view
- Suitable for industrial, warehouse, and manufacturing use
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | DS3608-ER20003VZWW |
| Brand Name | Zebra |
| Product Series | 3600 |
| Product Model | DS3608-ER |
| Product Name | DS3608-ER Handheld Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Code 39 Code 128 Code 93 Codabar/NW7 Code 11 MSI Plessey UPC/EAN I 2 of 5 Korean 3 of 5 GS1 DataBar Base 32 (Italian Pharma) 2D: PDF417 Micro PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Chinese Sensible (Han Xin) Postal Codes DotCode Digimarc: Digital watermark technology IUID Support: Supports IUID parsing, the ability to read and separate IUID fields per application requirements |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional |
| Scanner Range | Extended Range |
| Field of View (Horizontal) | 32° |
| Field of View (Vertical) | 20° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 107639 lux |
| Drop Specification | Withstands multiple 8.0 ft. /2.4 m drops to concrete |
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (DataMatrix) | 7.50 mil (0.19 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Product Color | Industrial Green |
| Height | 7.30" (185.42 mm) |
| Width | 3" (76.20 mm) |
| Depth | 5.20" (132.08 mm) |
| Weight (Approximate) | 11.78 oz (334 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP67,IP65 |
| Application/Usage | Industrial,Warehouse,Manufacturing |
User Manual
FAQ
What types of barcodes can the Zebra DS3608-ER scanner read?
The DS3608-ER reads both 1D and 2D barcodes, including common 1D formats like Code 39, Code 128, UPC/EAN, and MSI Plessey, plus 2D formats such as DataMatrix, QR codes, PDF417, Aztec, and Digimarc digital watermarks. It also supports specialized symbologies like IUID parsing for government applications and Chinese Sensible (Han Xin) codes.
How durable is this barcode scanner for industrial environments?
This scanner is built for rugged use with IP67 and IP65 ingress protection ratings, making it dust-tight and resistant to water immersion. It withstands multiple 8.0-foot drops to concrete, ensuring reliability in demanding settings like warehouses, manufacturing floors, and distribution centers where equipment faces frequent impacts.
What connectivity options does the DS3608-ER support?
The scanner connects via a cable USB host interface, providing plug-and-play compatibility with computers, POS systems, and industrial terminals. This wired connection ensures stable data transmission without wireless interference, which is crucial in environments with multiple electronic devices or metal structures.
What is the scanning range and field of view for this device?
The DS3608-ER offers extended range scanning capability with a 32° horizontal and 20° vertical field of view. Its omni-directional scan pattern and flexible reading angles (60° skew, 60° pitch, 360° roll) allow operators to capture barcodes from various orientations and distances without precise alignment.
Can this scanner operate in bright lighting conditions?
Yes, the scanner functions effectively in high ambient light up to 107,639 lux, making it suitable for well-lit warehouses, outdoor loading docks, or manufacturing areas with strong overhead lighting. It also handles low-contrast barcodes with a minimum print contrast requirement of 25%.
What are the physical dimensions and weight of the DS3608-ER?
The handheld scanner measures 7.30 inches in height, 3 inches in width, and 5.20 inches in depth (185.42 mm × 76.20 mm × 132.08 mm), with an approximate weight of 11.78 ounces (334 grams). This compact, balanced design provides comfortable handling during extended scanning sessions in industrial workflows.
