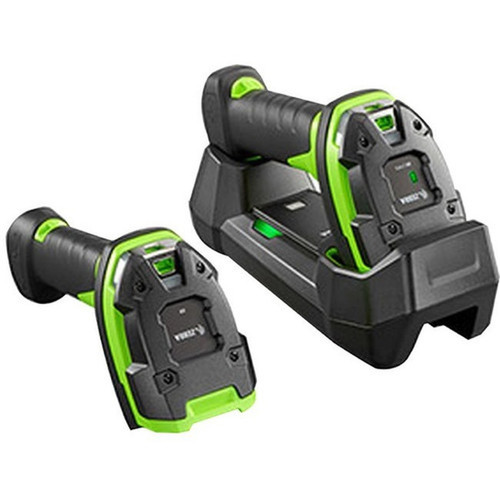

Zebra DS3608-HP20003VZWW DS3608-HP Handheld Barcode Scanner - Cable Connectivity - 1D/2D Imager - Industrial Green
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The DS3608-HP scanner utilizes an imager-based sensor for capturing both 1D and 2D barcodes, offering versatility across different labeling standards. It supports an extensive list of symbologies, from common retail codes like UPC/EAN to specialized formats such as GS1 DataBar, Aztec, and Chinese Sensible (Han Xin). The scanner also includes OCR capabilities for reading OCR-A/B, MICR-E13B, and US currency serial numbers, expanding its utility beyond traditional barcode applications.
With cable connectivity, the scanner ensures a stable and fast data transfer connection, eliminating wireless interference concerns in crowded RF environments. The imager technology provides a wide field of view and depth of field, allowing operators to scan from various angles and distances without compromising read rates.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Form Factor, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Zebra DS3608-HP scanner stands out with its industrial-grade construction and comprehensive symbology support, making it a versatile choice for complex scanning needs. Its imager sensor delivers high-performance reads in challenging conditions, while the cable connectivity ensures reliable data transmission without dropout risks.
Wide Symbology Support
Captures over 20 barcode types including 1D linear codes, 2D matrix codes, and postal codes, plus OCR for character recognition.
- Code 128, QR Code, DataMatrix
- PDF417, Aztec, MaxiCode
- OCR-A/B, MICR-E13B
Durable Industrial Design
Built to withstand drops, vibrations, and dust exposure in warehouse and retail environments, with an industrial green color for high visibility.
- Rugged handheld form factor
- Industrial green finish
- 10.90 oz lightweight yet sturdy
Reliable Cable Connection
Eliminates wireless interference issues with a direct cable connection, ensuring consistent scanning performance in RF-crowded areas.
- Stable data transfer
- No battery charging needed
- Simple plug-and-play setup
Deployment / Use Cases
The DS3608-HP scanner is engineered for deployment in environments where scanning reliability and durability are non-negotiable. Its handheld design and cable connectivity make it ideal for fixed scanning stations in retail checkout lanes, warehouse receiving docks, and manufacturing assembly lines where operators need a dependable tool for high-volume scanning tasks.
In retail settings, the scanner efficiently processes UPC/EAN codes at point-of-sale while also handling 2D coupons and loyalty codes. For logistics and distribution centers, it captures shipping labels, parcel tracking codes, and inventory bin labels with equal proficiency. The OCR capabilities extend its use to document processing applications where printed serial numbers or currency verification is required.
Retail Point-of-Sale
Deploy at checkout counters for fast scanning of product barcodes, QR-based coupons, and mobile payment codes with consistent read rates.
Warehouse Inventory Management
Use in receiving, picking, and cycle counting operations to scan pallet labels, bin locations, and asset tags in dusty or high-traffic areas.
Physical Profile

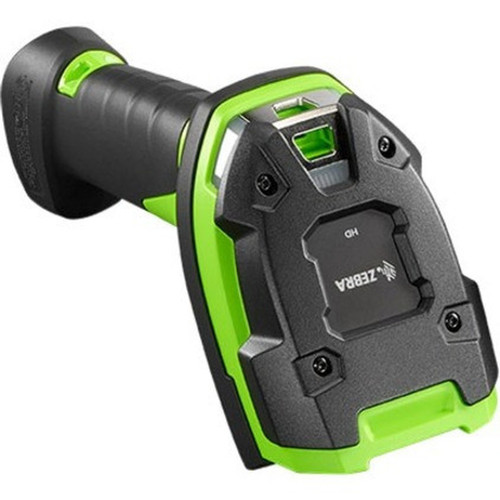

The scanner features a compact handheld form factor measuring 7.30" in height, 3" in width, and 5.20" in depth, making it easy to grip and maneuver during extended scanning sessions. Weighing approximately 10.90 ounces, it balances lightweight comfort with solid construction that can withstand occasional drops. The industrial green color provides high visibility in busy work environments while signaling its rugged industrial pedigree.
- Width
- 3" (76.20 mm)
- Depth
- 5.20" (132.08 mm)
- Height
- 7.30" (185.42 mm)
- Weight
- 10.90 oz (309.01 g)
Highlights
- Handheld barcode scanner with cable connectivity for stable data transfer
- 1D and 2D scanning capability using an imager sensor technology
- Supports extensive symbologies including Code 128, QR Code, DataMatrix, and postal codes
- OCR functionality for reading OCR-A/B, MICR-E13B, and US currency serial numbers
- Industrial green color with rugged design for demanding environments
- Compact dimensions: 7.30" H × 3" W × 5.20" D (185.42 × 76.20 × 132.08 mm)
- Lightweight at approximately 10.90 oz (309.01 g) for comfortable handheld use
- Part of Zebra's 3600 series for reliable performance in retail and logistics
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | DS3608-HP20003VZWW |
| Brand Name | Zebra |
| Product Series | 3600 |
| Product Model | DS3608-HP |
| Product Name | DS3608-HP Handheld Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Code 39 Code 128 Code 93 Codabar/NW7 Code 11 MSI Plessey UPC/EAN I 2 of 5 Korean 3 of 5 GS1 DataBar Base 32 (Italian Pharma) 2D: PDF417 Micro PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Chinese Sensible (Han Xin) Postal Codes OCR: OCR-A/B MICR-E13B US Currency Serial Number |
| Image Sensor Type | Imager |
| Physical Characteristics | |
| Form Factor | Handheld |
| Product Color | Industrial Green |
| Height | 7.30" (185.42 mm) |
| Width | 3" (76.20 mm) |
| Depth | 5.20" (132.08 mm) |
| Weight (Approximate) | 10.90 oz (309.01 g) |
User Manual
FAQ
What types of barcodes can the Zebra DS3608-HP scanner read?
The DS3608-HP scanner reads both 1D and 2D barcodes, including common linear codes like Code 39, Code 128, UPC/EAN, and GS1 DataBar, plus 2D matrix codes such as QR Code, DataMatrix, Aztec, and PDF417. It also supports postal codes and has OCR capabilities for reading OCR-A/B, MICR-E13B, and US currency serial numbers, making it versatile for various labeling and document scanning applications.
How does the cable connectivity benefit scanning operations?
Cable connectivity provides a stable, interference-free connection that ensures consistent data transmission without the dropout risks associated with wireless scanners. This is particularly valuable in environments with crowded RF signals, such as retail stores with multiple wireless devices or warehouses with industrial equipment. The cable connection also eliminates battery charging requirements, allowing for continuous operation.
Is the DS3608-HP scanner suitable for industrial environments?
Yes, the DS3608-HP is designed for industrial use with a rugged handheld form factor and industrial green color that signals durability. It can withstand the physical demands of warehouse, manufacturing, and retail environments, including exposure to dust, occasional drops, and high-volume scanning. Its imager sensor maintains reliable performance even with damaged or poorly printed labels common in industrial settings.
What are the physical dimensions and weight of this scanner?
The scanner measures 7.30 inches in height, 3 inches in width, and 5.20 inches in depth (185.42 × 76.20 × 132.08 mm). It weighs approximately 10.90 ounces (309.01 grams), making it lightweight enough for comfortable handheld use during extended scanning sessions while maintaining a sturdy construction that can endure regular industrial handling.
Does this scanner require special software or drivers?
The DS3608-HP scanner typically functions as a plug-and-play device when connected via cable, emulating keyboard input so scanned data appears as if typed. For advanced configuration or integration with specific point-of-sale or inventory systems, Zebra provides configuration tools and software development kits that allow customization of scanning parameters, symbology settings, and data formatting to match application requirements.
What print speed is listed?
Zebra DS3608-HP Handheld Barcode Scanner - Cable Connectivity - 1D, 2D - Imager - Industrial Green (DS3608-HP20003VZWW) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
What sheet capacity, media size, or paper handling detail is listed?
Zebra DS3608-HP Handheld Barcode Scanner - Cable Connectivity - 1D, 2D - Imager - Industrial Green (DS3608-HP20003VZWW) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
What duplex or duty-cycle detail is listed?
Zebra DS3608-HP Handheld Barcode Scanner - Cable Connectivity - 1D, 2D - Imager - Industrial Green (DS3608-HP20003VZWW) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
