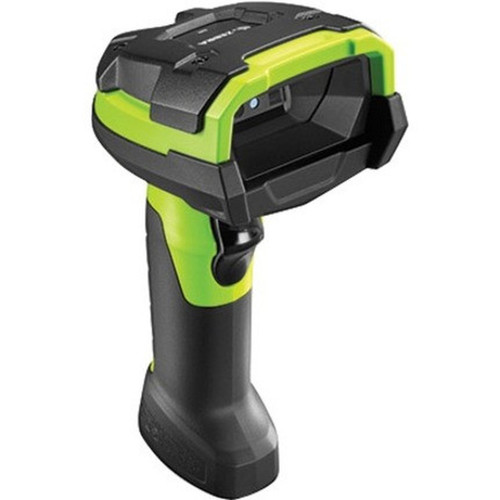

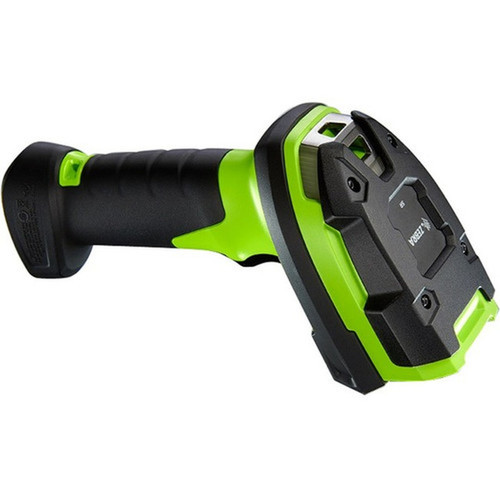

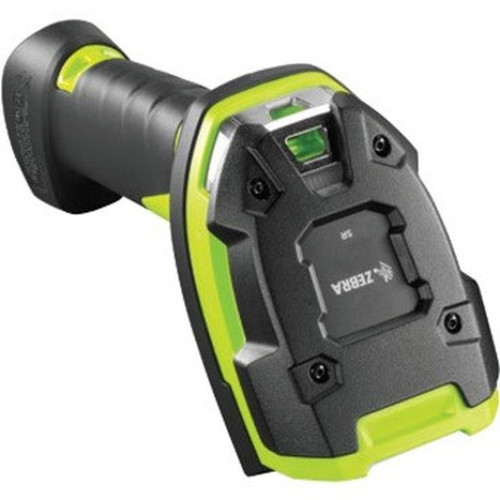

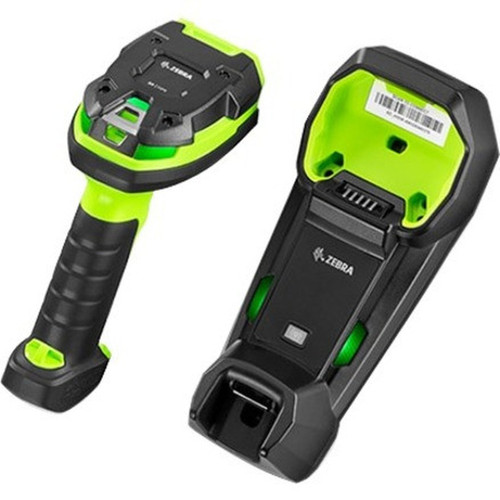

Zebra DS3608-HP3U4602VZW DS3608-HP Handheld Barcode Scanner - 1D/2D Imager - Industrial Green - USB Cable Connectivity
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The DS3608-HP utilizes an imager sensor for both 1D and 2D barcode scanning, providing versatility across various labeling formats. It supports a comprehensive set of barcode symbologies, including 1D codes like Code 39, Code 128, and UPC/EAN, plus 2D formats such as PDF417, Aztec, DataMatrix, MaxiCode, and QR Code.
This scanner also handles OCR-A/B, MICR-E13B, and US currency serial number recognition, extending its utility beyond traditional barcode applications. The USB host interface ensures plug-and-play compatibility with most point-of-sale systems, computers, and industrial terminals without requiring additional drivers in many environments.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The DS3608-HP combines rugged construction with advanced scanning capabilities to meet the needs of challenging operational environments. Its industrial-grade design ensures durability where other scanners might fail, while the comprehensive symbology support future-proofs your investment as barcode technology evolves.
Extensive Symbology Support
From basic retail codes to specialized formats like GS1 DataBar, Italian Pharma codes, and Chinese Sensible (Han Xin), this scanner handles virtually any barcode type you encounter in modern business applications.
- 1D: Code 39, Code 128, UPC/EAN
- 2D: QR, DataMatrix, PDF417
- OCR: OCR-A/B, MICR-E13B
- Postal codes and composite codes
Industrial Durability
Built to withstand drops, impacts, and continuous use in warehouse, manufacturing, and retail environments. The industrial green color provides visual distinction in multi-scanner deployments.
- Rugged construction
- All-day ergonomic design
- Distinctive color identification
Deployment / Use Cases
The DS3608-HP excels in environments requiring reliable barcode scanning with minimal setup complexity. Its USB cable connectivity makes it ideal for fixed workstations where wireless interference or battery management would add operational overhead.
Retail point-of-sale systems benefit from the scanner's quick response time and broad UPC/EAN support, while warehouse inventory management applications leverage the 2D scanning capability for advanced labeling systems. Logistics operations use the OCR functionality for document processing alongside traditional barcode scanning.
Retail Checkout
Fast, accurate scanning of product barcodes at cash registers with reliable USB connection to POS systems. The industrial construction handles high-volume scanning throughout extended business hours.
Warehouse Inventory
Comprehensive 1D and 2D scanning for receiving, put-away, picking, and cycle counting operations. The durable design withstands drops and impacts common in warehouse environments.
Physical Profile
Measuring 7.30" high, 3" wide, and 5.20" deep, the DS3608-HP offers a compact footprint that fits comfortably in hand while providing sufficient surface area for secure gripping during extended use. At approximately 10.90 ounces, it balances substantial feel with minimal operator fatigue.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.30" (185.42 mm), 3" (76.20 mm), 5.20" (132.08 mm), 10.90 oz (309.01 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3" (76.20 mm)
- Depth
- 5.20" (132.08 mm)
- Height
- 7.30" (185.42 mm)
- Weight
- 10.90 oz (309.01 g)
Highlights
- 1D and 2D barcode scanning capability
- Imager-based sensor technology
- USB cable connectivity for reliable data transfer
- Industrial green color for durability and identification
- Handheld form factor with ergonomic design
- Supports QR Code, DataMatrix, PDF417, and other 2D formats
- Includes OCR-A/B and MICR-E13B recognition
- Compact dimensions: 7.30" H × 3" W × 5.20" D
- Weighs approximately 10.90 ounces for comfortable use
- Manufactured by Zebra Technologies Corporation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | DS3608-HP3U4602VZW |
| Brand Name | Zebra |
| Product Series | 3600 |
| Product Model | DS3608-HP |
| Product Name | DS3608-HP Handheld Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Code 39 Code 128 Code 93 Codabar/NW7 Code 11 MSI Plessey UPC/EAN I 2 of 5 Korean 3 of 5 GS1 DataBar Base 32 (Italian Pharma) 2D: PDF417 Micro PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Chinese Sensible (Han Xin) Postal Codes OCR: OCR-A/B MICR-E13B US Currency Serial Number |
| Image Sensor Type | Imager |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Product Color | Industrial Green |
| Height | 7.30" (185.42 mm) |
| Width | 3" (76.20 mm) |
| Depth | 5.20" (132.08 mm) |
| Weight (Approximate) | 10.90 oz (309.01 g) |
| Miscellaneous | |
| Country of Origin | China |
User Manual
FAQ
What types of barcodes can the Zebra DS3608-HP scanner read?
The DS3608-HP reads both 1D and 2D barcodes. For 1D, it supports Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, and Base 32 (Italian Pharma). For 2D, it handles PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), and postal codes. It also recognizes OCR-A/B, MICR-E13B, and US currency serial numbers.
How does this scanner connect to my computer or POS system?
The DS3608-HP uses USB cable connectivity as its host interface. This provides a reliable, wired connection that eliminates wireless interference concerns and doesn't require battery management. The USB interface typically offers plug-and-play compatibility with most modern systems without needing additional drivers in many environments.
What is the advantage of an imager sensor versus a laser scanner?
Imager sensors capture an entire image of the barcode rather than reading a single laser line. This allows them to read 2D barcodes (which laser scanners cannot), handle damaged or poorly printed codes more effectively, and work at various angles and distances. Imagers also have no moving parts, making them more durable for industrial environments.
Is the DS3608-HP suitable for industrial environments?
Yes, the DS3608-HP is designed for industrial use. Its industrial green color provides visual distinction in multi-scanner deployments, while the rugged construction withstands the drops, impacts, and continuous operation common in warehouse, manufacturing, and logistics environments. The handheld form factor is ergonomically designed for all-day use.
What are the physical dimensions and weight of this scanner?
The DS3608-HP measures 7.30 inches (185.42 mm) in height, 3 inches (76.20 mm) in width, and 5.20 inches (132.08 mm) in depth. It weighs approximately 10.90 ounces (309.01 grams). These compact dimensions make it easy to handle while providing sufficient surface area for secure gripping during extended scanning sessions.
Can this scanner read OCR and special characters?
Yes, the DS3608-HP includes optical character recognition capabilities for OCR-A/B fonts and MICR-E13B (the magnetic ink character recognition standard used on checks). It can also read US currency serial numbers. This extends its utility beyond traditional barcode applications to document processing and specialized identification tasks.
What print speed is listed?
Zebra DS3608-HP Handheld Barcode Scanner - Cable Connectivity - 1D, 2D - Imager - Industrial Green (DS3608-HP3U4602VZW) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
What sheet capacity, media size, or paper handling detail is listed?
Zebra DS3608-HP Handheld Barcode Scanner - Cable Connectivity - 1D, 2D - Imager - Industrial Green (DS3608-HP3U4602VZW) is described for practical deployment use, and the specification set helps buyers confirm fit, compatibility, and expected day-to-day operation.
